500w Marine use Wind Turbine with CE
This marine use wind turbine also has 600w.

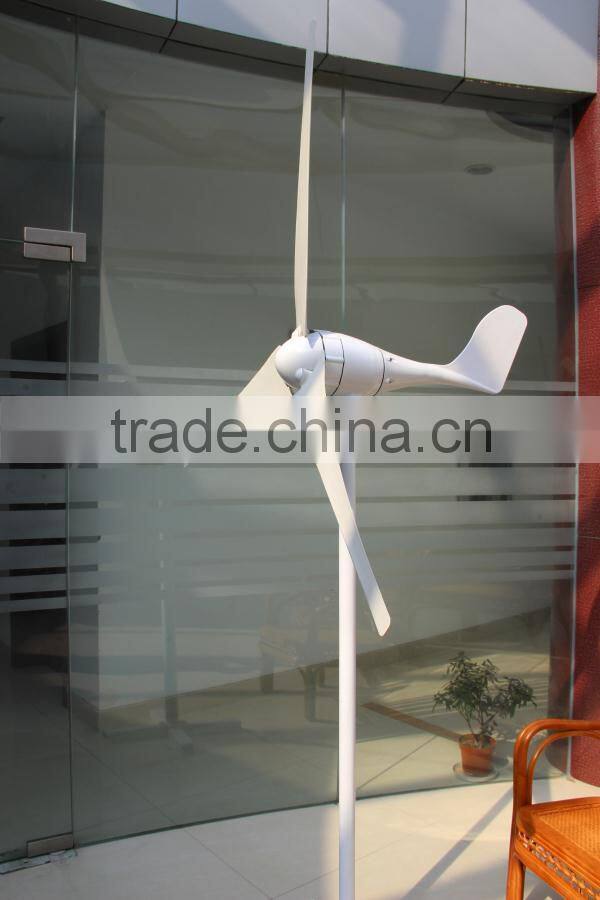

Real pic for 500w Marine use wind turbine with CE

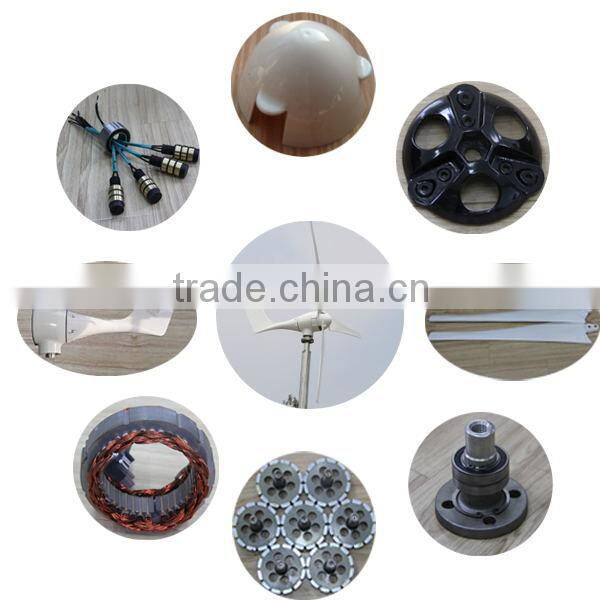

Detail parts for 500w Marine use wind turbine with CE
Parameters for 500w Marine use wind turbine with CE
Model |
FT-500M2 |
Rated power |
500W |
Maximum power |
560W |
Rated voltage |
12/24V |
Start-up wind speed |
2.5m/s |
Rated wind speed |
10m/s |
Survival wind speed |
55m/s |
Top net weight |
15.2kg |
Wheel diameter |
1.67m |
Number of blades |
3 |
Blades material |
Nylon fiber |
Generator type |
Three phase permanent magnet AC synchronous generator |
Magnet material |
NdFeB |
Generator case |
Casting aluminum alloy |
Control system |
Electromagnet/wind wheel yaw |
Speed regulation |
Automatically adjust windward direction |
Working temperature |
-40°C - 80°C |
Design life |
20 y |
Certificates |
CE, ISO14001,ISO 9001, TUV |
Features for 500w Marine use wind turbine with CE
1.Low start up speed, high wind energy utilization.
2.Easy installation, tube or flange connection optional.
3.Blades using new art of precision injection molding.
4.Body of casting aluminum alloy, with 2 bearings swivel , making it survive stronger
wind and run more safely.
5.Patented permanent magnet ac generator with special stator,effectively reduce torque.
6.Controller, inverter can be matched according to customers’ specific needs.

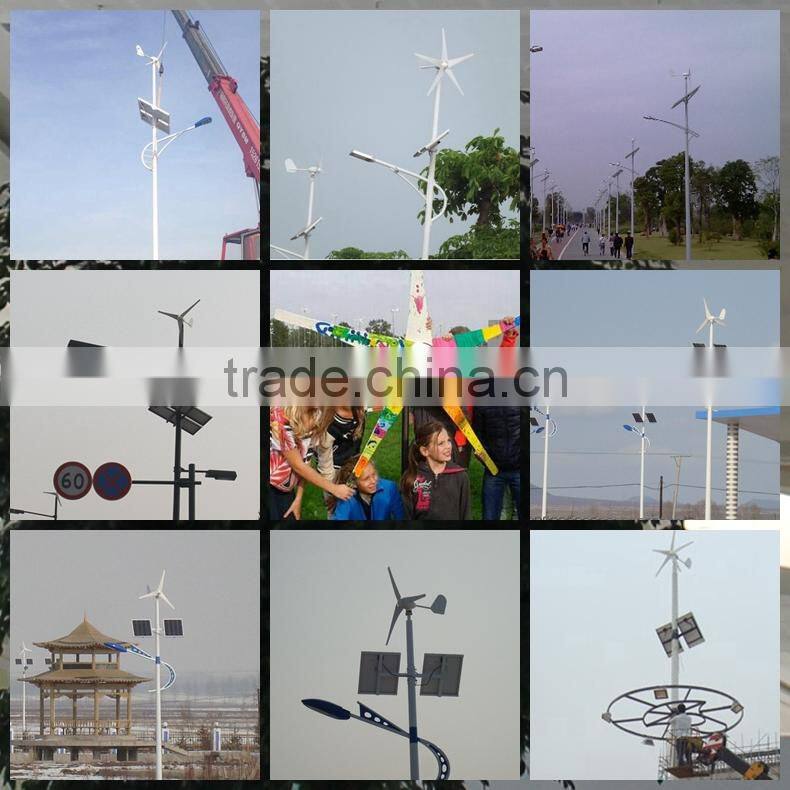

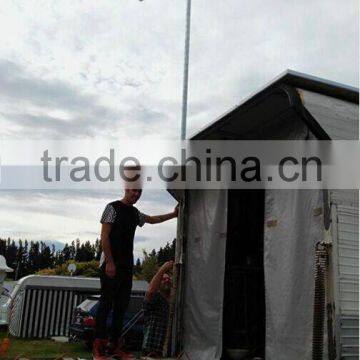

Projects of 500w Marine use wind turbine with CE

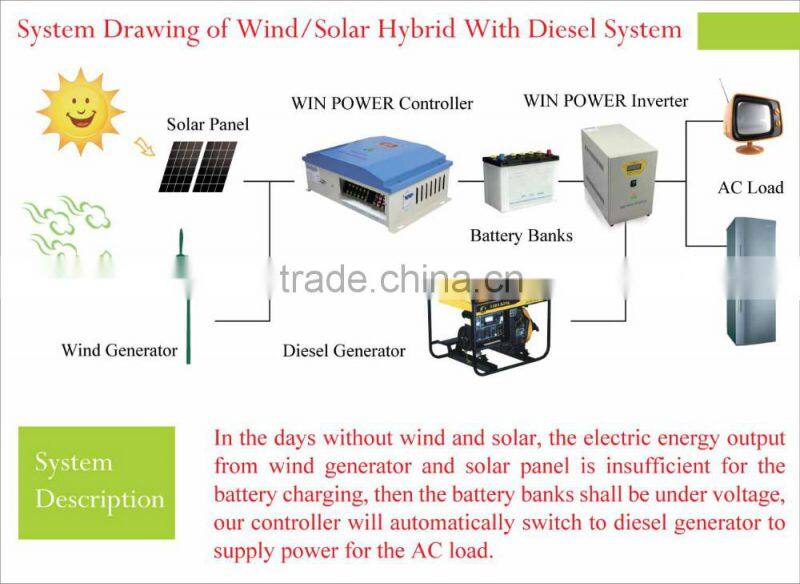

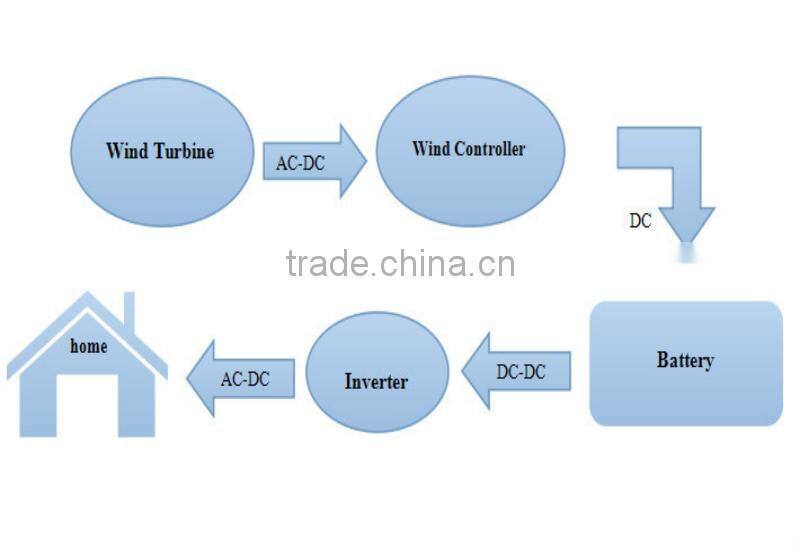

Wind turbine system

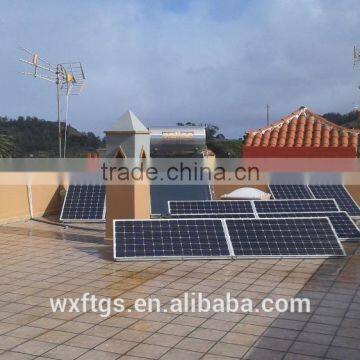

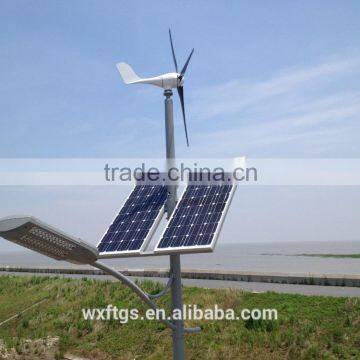

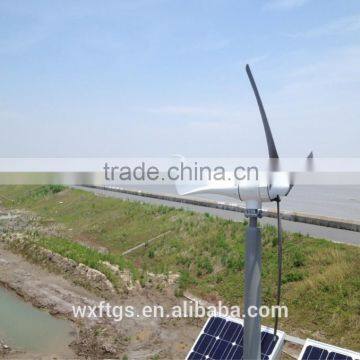

Wind turbine and solar panels system

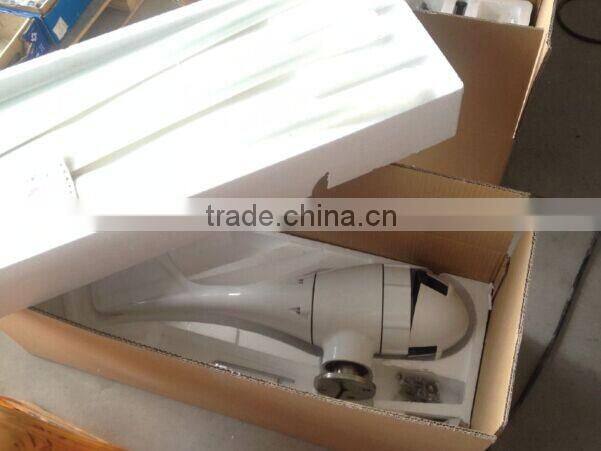

Pakaging for 500w Marine use wind turbine with CE
1.Reply your inquiry for wind turbine in 24 working hours.
2. Experienced staffs answer all your questions in fluent English.
3. Customized design is available. OEM are welcomed.
4. Exclusive and unique solution can be provided to our customer by our well-trained
and professional engineers and staff.
5. Special discount and protection of sales are provided to our distributor.
6.Certain warranty for every wind turbine.
As professional manufacturer of wind turbine for 6years,we have our own R&D team.
We can offer horizontal axis wind turbine generator 50w-10kw,
vertical axis wind turbine generator 50w,100w,200w,300w,400w,
and permanent magnet generator 100w-60kw.
For any requirement of wind turbine system,feel free to contact with us
1. Q: Where is your factory?
A: Wuxi city, Jiangsu Province, about one hour drive from Shanghai.
2. Q: Is installation easy?
A: Yeah, it's very easy, every customer can do it by themselves. We supply you all the components and the installation manual.
3. Q: Is our wind enough for a wind generator?
A: Our wind generator can start running at low wind speed, 3m/s. So if your average annual wind speed is more than 5m/s, you can use it.
4. Q: Which model should I choose?
A: If you are not sure to choose the model, please contact our sales with the following points:
1. What appliance do you want to run by the system? How many watts are they? How long do they work?
2. Your annual wind speed.
3. What kind of system do you want? On-grid or off grid?
5. Q: Can I only buy parts of the whole system?
A: Yes.
Any other questions for 500w Marine use wind turbine with CE , please contact me.
