Home use horizontal axis wind generator 900w
For home use horizontal axis wind generator 900w, we have 24v/48v, off-grid, on-grid for your choose.

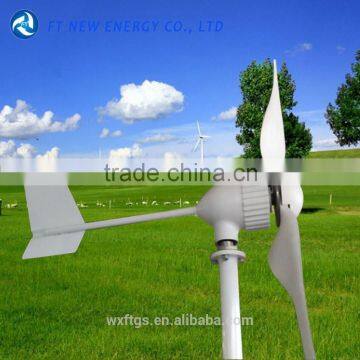

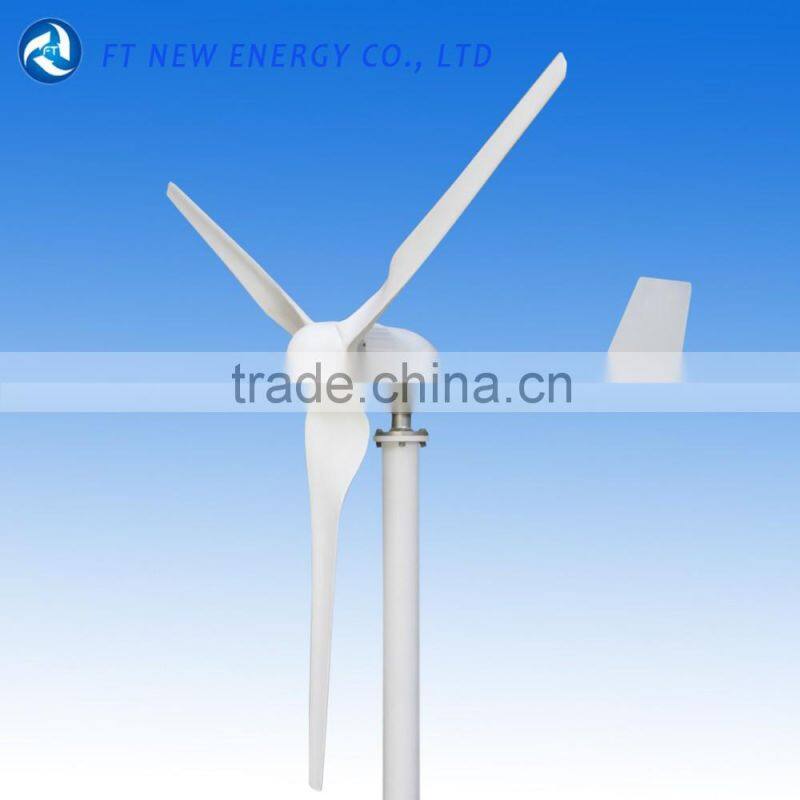

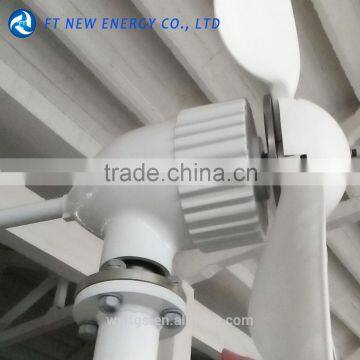

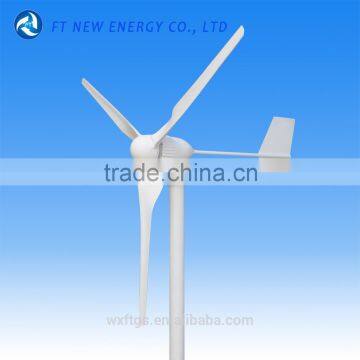

Picture for home use horizontal axis wind generator 900w:
|
|
Model |
FT-900M5 |
Rated power |
900W |
Maximum power |
1000W |
Rated voltage |
24/48V |
Start-up wind speed |
2.5m/s |
Rated wind speed |
13m/s |
Survival wind speed |
50m/s |
Top net weight |
25kg |
Wheel diameter |
2.4m |
Number of blades |
3 |
Blades material |
Reinforce glass fiber |
Generator type |
Three phase permanent magnet AC synchronous generator |
Magnet material |
NdFeB |
Generator case |
Casting aluminum alloy |
Control system |
Electromagnet/wind wheel yaw |
Speed regulation |
Automatically adjust windward direction |
Working temperature |
-40°C - 80°C |
Design life |
20 y |
Certificates |
CE, ISO14001,ISO 9001, TUV |
Features for home use horizontal axis wind generator 900w :
1.Casting aluminum alloy body, compact, safe.
2.Reinforced glass fiber blades,matched with optimized aerodynamic shape and structure,which enhance the wind energy utilization and annual output.
3.Patented permanent magnet ac generator with special stator,effectively reduce torque, well match the wind wheel and generator, and ensure the performance of whole system.
4.Tail adopts mechanical yaw technique, making it survive storm and run safely.
5.With epoxy zinc rich primer and polyurethane anti-corrosion treatment,be ultraviolet-proof, acid rain resistant, salt resistant.
Our certification:

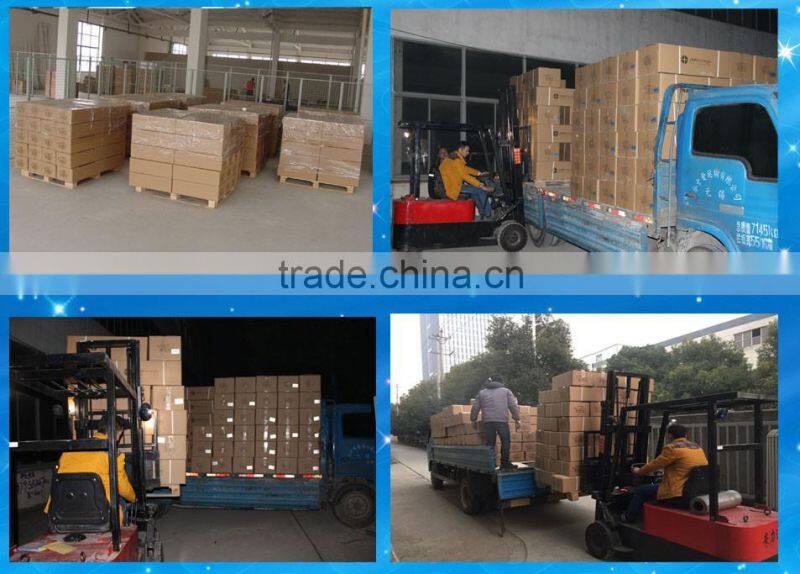

We pack nd ship horizontal axis wind generator 900w as per customers' requirements. Usually we use carton with foam to pack our products.
We can design different systems of wind turbine for customers according to their requirements.
All lifelong technical support and part cost supply.
24 hours on-line---Your enquiries will be replied within 24 hours.
We are manufacturer of wind turbine generator,we have our R&D team, advanced
manufacturing and testing facilities for small wind turbine generator,now our small wind turbine generators are hot sale.our products covers small wind turbine generator 50w-600w,wind turbine generator 1000w-10kw, vertical axis wind turbine and permanent magnet generator.
Cooperation around the world:
|
|
|

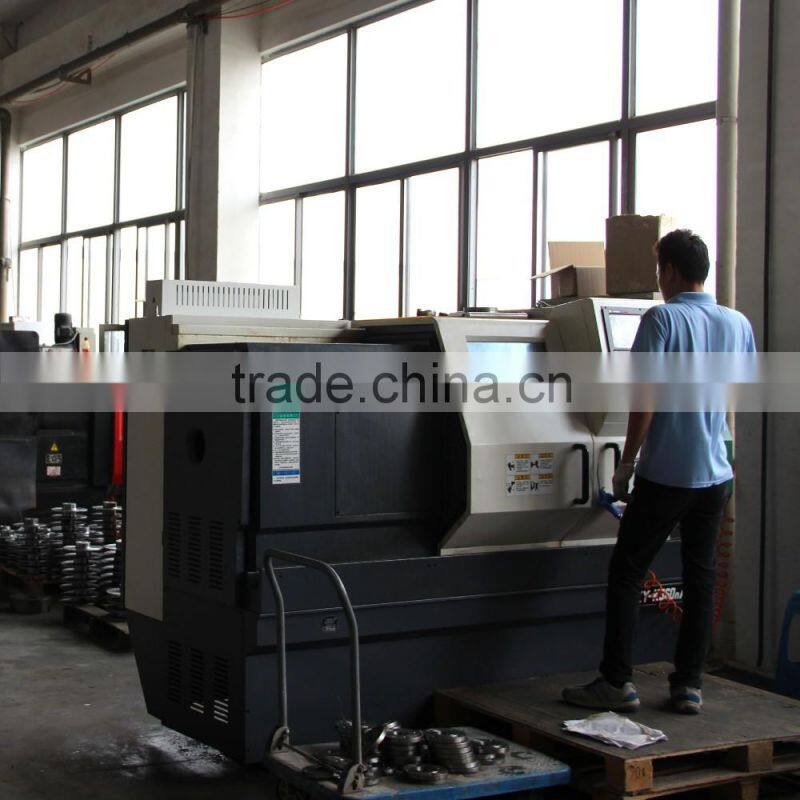

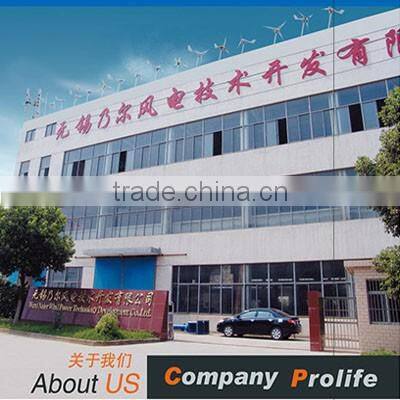

Factory view:
|
|
|
|
|
|
1. Q: Where is your factory?
A: Wuxi city, Jiangsu Province, about one hour drive from Shanghai.
2. Q: Is installation easy?
A: Yeah, very easy. Every customer can do it by thenselves. We supply you all the components and the isntallation manual.
3. Q: Is our wind enough for a wind generator?
A: Our wind generator can start running at low wind speed 3m/s, so if your verage annual wind speed is more than 5m/s, you can use it.
4. Q: Which model should I choose?
A: If you are not sure to choose the model, please contact our sales with the following points:
1. What appliance do you want to run by the system? How many watts are they? How long do they work?
2. Your annual wind speed.
3. What kind of system do you want? On-grid or off grid?
5. Q: Can I only buy parts of the whole system?
A: Yes.
Any other questions, please feel free to contact me.
