55ton Injection Molding Machine
USD $1 - $11,000
/ Set
1 Set(Min.Order)
- 30 Set / Sets per Month
- Zhongshan
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
Condition: | New | Type: | Preform Injection | Style: | Vertical |
Brand Name: | Yatai | Model Number: | V55 | Place of Origin: | Guangdong, China |
Plastic Type: | Thermoplastic | Automatic: | Yes | Injection Weight: | 132g |
Injection Rate: | 103mm/s | Clamping Force: | 55ton | Opening Stroke: | 200mm |
Power(W): | 13KW | Certification: | ISO9001,CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
1.Vertical type with 55ton clamping force2. YUKEN valve and oil pump
3. PORCHESON controller
4. Inserting convinient
1. Machine Specifications
Model No. | V55 | |||||
Injection Unit | Screw Diameter | mm | 28 | 32 | 36 | |
Theoretical Injection Volume | cm3 | 86 | 112.5 | 142 | ||
Injection Weight(PS) | g(oz) | 80(2.8) | 104(3.6) | 132(4.6) | ||
Max.Injection Pressure | Mpa(kgf/cm2) | 212(2170) | 162(1661) | 146(1492) | ||
Injection Rate | cm3/s | 63 | 83 | 105 | ||
Injection Speed | mm/s | 103(149) | ||||
Screw Speed Rotation | r.p.m | 0-240 | ||||
Nozzle Out From Platens | mm | ≥45 | ||||
Clamping Unit | Clamping Force | KN(tf) | 539(55) | |||
Clamping Stroke | mm | 200 | ||||
Min.Mold Thickness | mm | 180(260) | ||||
Max.Opening | mm | 380(460) | ||||
Distance Between Tie Bars | mm | 445*255 | ||||
Max.Mould Size | mm | 380*376 | ||||
Platen/Slide Size | mm | 500*396 | ||||
Ejector Distance | mm | 100 | ||||
Ejector Force | KN(tf) | 21.5(2.2) | ||||
Others | System Pressure | Mpa(kgf/cm2) | 13.7(140) | |||
Oil Tank Capacity | L | 140 | ||||
Electric Power | KW(HP) | 7.5(10) | ||||
Heater Power | KW | 5.5 | ||||
Machine Dimensions | L*W | mm | 2.16*1265 | |||
H | mm | 2465(3110) | ||||
Machine Weight | tf | 1.7 |

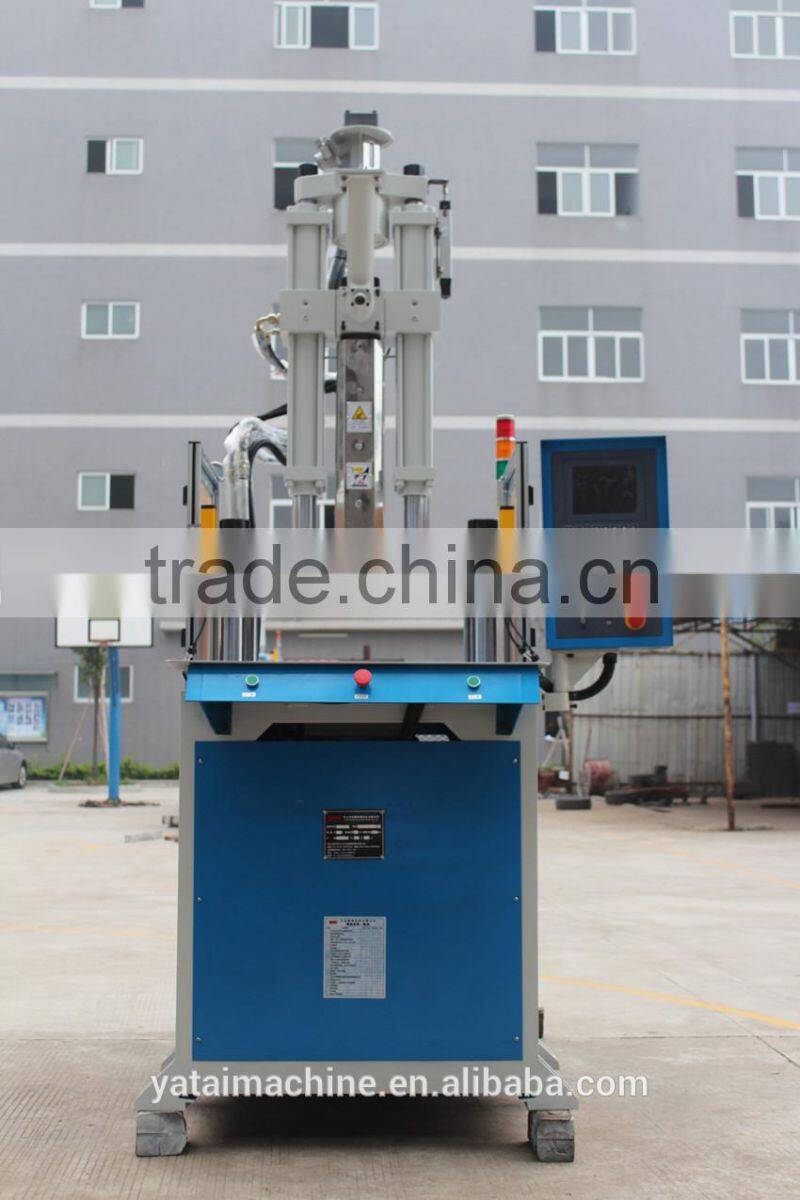

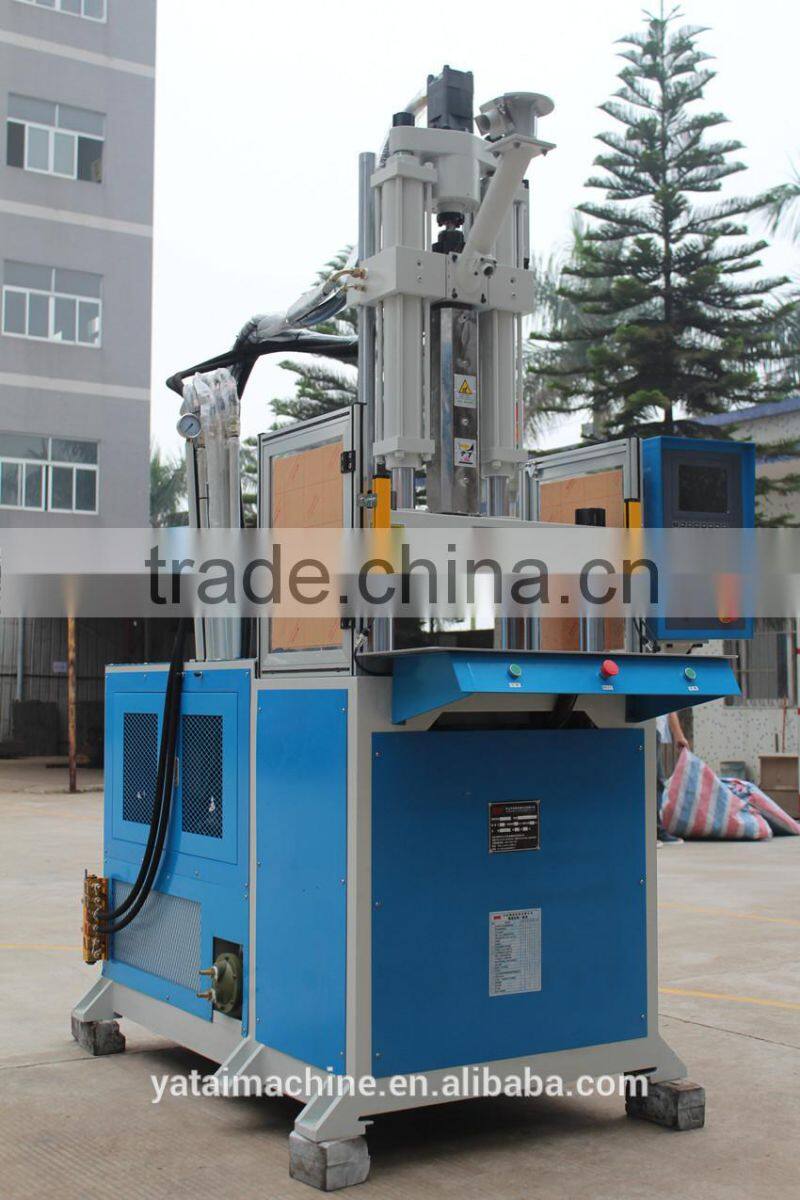

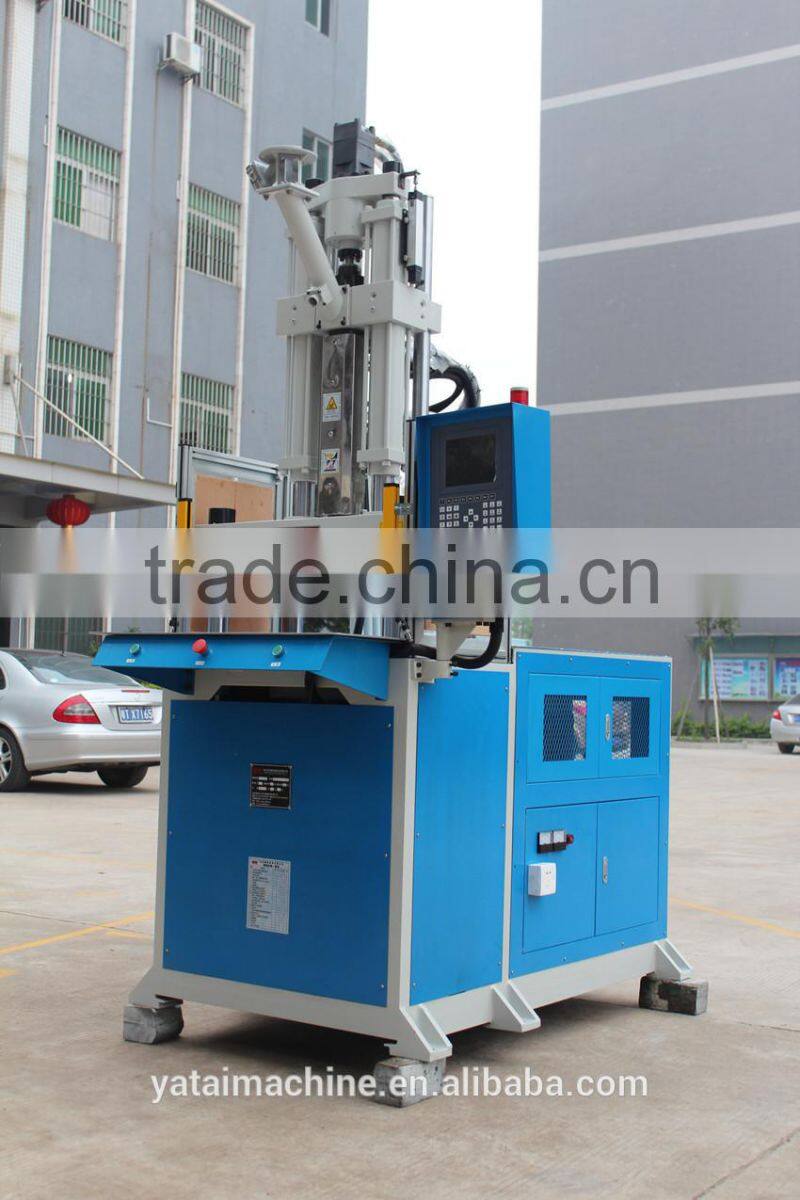

2. Machine Real Pictures

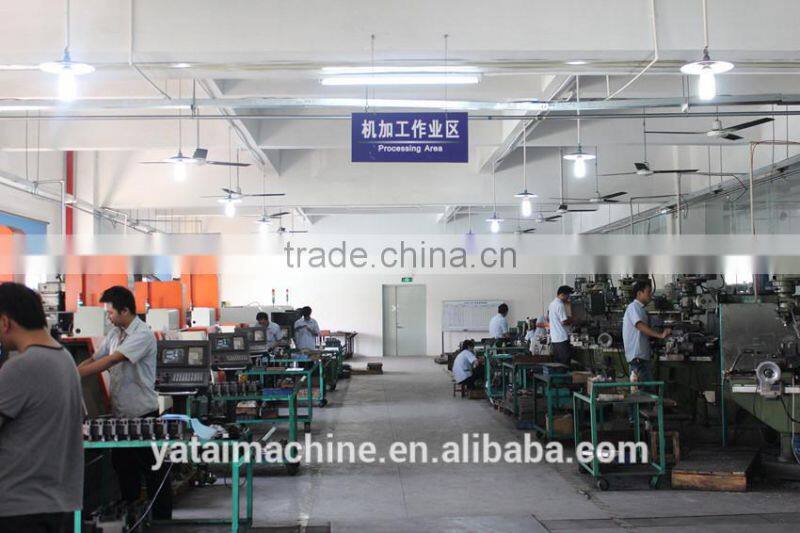

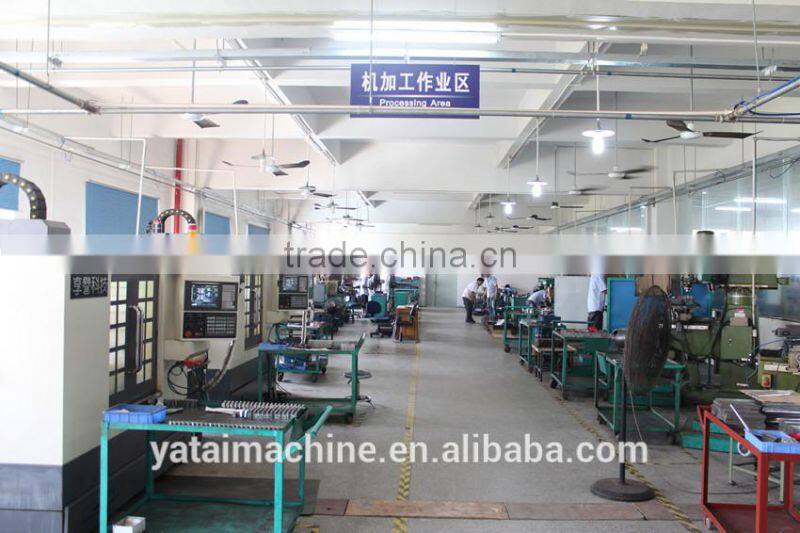

3. Processing Workshop

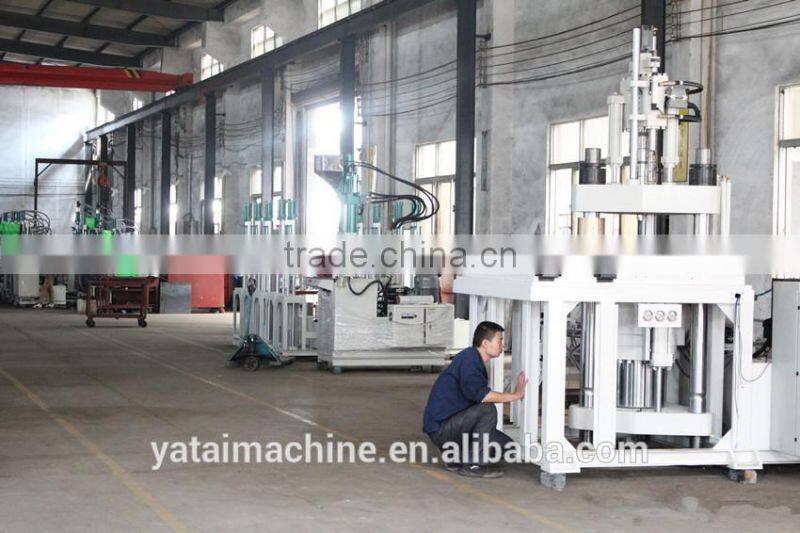

4. Assembling Workshop
5. Stock Workshop
6.Packing & Shipping

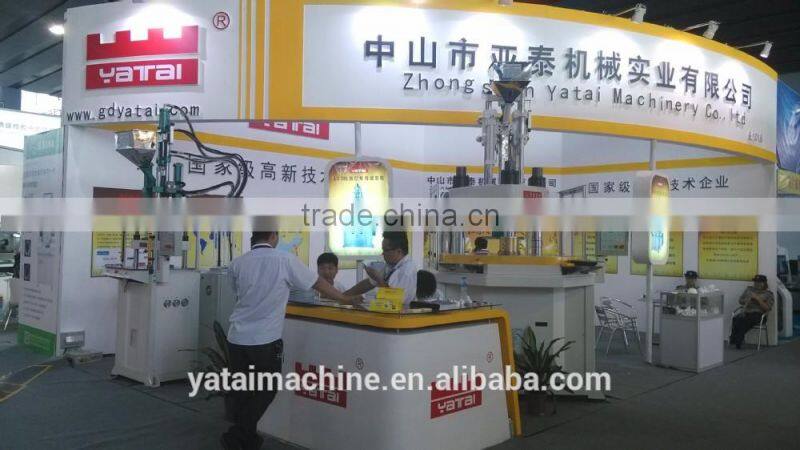

7. Exhibition Shows
8. Certificates
Contact Us
- Zhongshan Yatai Machinery Co., Ltd.
- Contact nameJason Ye
- Phone86-0760-22500258
- AddressMAXIN INDUSTRIAL ZONE,HUANGPU TOWN,ZHONGSHAN CITY,GUANGDONG PROVINCE Zhongshan,Guangdong
