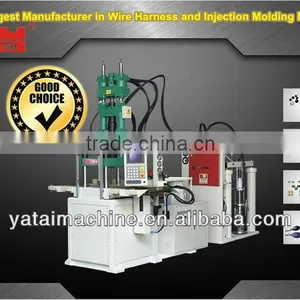

55T Good Vertical LSR Injection Molding Machine V55SD-LSR

Name: 55T Good Vertical LSR Injection Molding Machine V55SD-LSR
Brand: Qianke
SKU: 111078299

US$ 1,500 - 80,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Preform Injection

Style:

Vertical

Zhongshan Yatai Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Zhongshan

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Preform Injection

Style Vertical

Brand Name Qianke

Model Number V55SD-LSR

Place of Origin Guangdong, China

Plastic Type Thermoplastic

Automatic Yes

Injection Weight 112.5g

Injection Rate 103mm/s

Clamping Force 55Tf, 35-200Ton

Opening Stroke 200mm

Certification CE

After-sales Service Provided Overseas service center available

Specifications

1.Clamping force 35-200tons
2.Vertical clamping,Vertical injection,easy to insert
3.Famous brand in each parts.
4.Yuken,Omron

1,Specifications

			Unit	V55SD-LSR
Injection Unit	Screw Diameter		mm	28	32	38
	Theoretical Injection Volume		cm3	86	112.5	142.4
	Max.Injection Pressure		Mpa(kgf/cm2)	153(1563)	162(1661)	127(1313)
	Injection Rate		cm3/s	88	83	105
	Injection Speed		mm/s	103
	Screw Speed Rotation		r.p.m	0-240
	Nozzle Out From Platens		mm	≥45
Clamping Unit	Clamping Force		KN(tf)	539(55)
	Clamping Stroke		mm	200
	Min.Mold Thickness		mm	120(200)
	Max.Opening		mm	320(400)
	Distance Between Tie Bars		mm	445*255		---
	Max.Mould Size		mm	380*376	380*376	300*300
	Platen/Slide Size		mm	500*396	890*396	880
	Ejector Distance		mm	70	70	70
	Ejector Force		KN(tf)	21.5(2.2)	26.5(2.7)	26.5(2.7)
Others	System Pressure		Mpa(kgf/cm2)	13.7(140)	13.7(140)	13.7(140)
	Oil Tank Capacity		L	140	180	230
	Electric Power		KW(HP)	7.5(10)	11(15)	11(15)
	Machine Dimensions	L*W	mm	2016*1265	1650*1380	1755*1598
		H	mm	2465(3110)	2460(3105)	2560(3205)
	Machine Weight		tf	1.8	2.2	2.7
