Home > Manufacturing & Processing Machinery > Plastic Machinery > Injection Molding Machine > 85T Good Tie-barless Injection Molding Machine C85

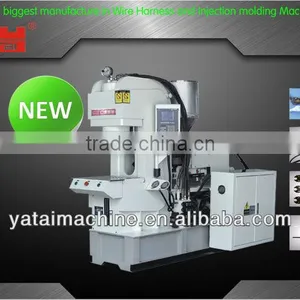

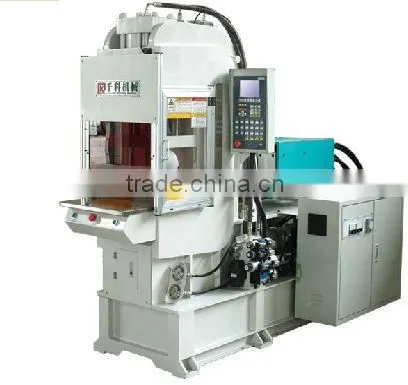

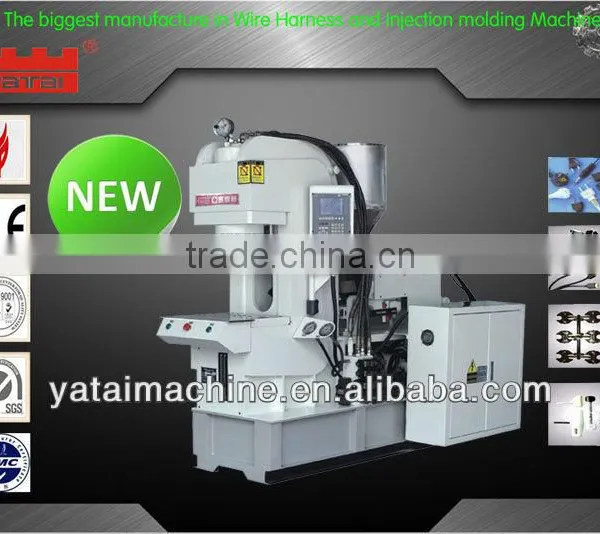

85T Good Tie-barless Injection Molding Machine C85
US$ 1,500 - 80,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Preform Injection
Style:
Vertical
Payment & Shipping
Payment Methods:
Port of Shipment:
Zhongshan
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
55T Good Tie-barless Injection Molding Machine C55US$ 1,500 - 80,000MOQ: 1 Set -
85T Good Tie-barless Injection Molding Machine C85RUS$ 1,500 - 80,000MOQ: 1 Set
-
55T Good Tie-barless Injection Molding Machine C55SDUS$ 1,500 - 80,000MOQ: 1 Set
-
300T Good Horizontal Injection Molding Machine H300SUS$ 1,500 - 80,000MOQ: 1 Set
-
220T Good Horizontal Injection Molding Machine H220US$ 1,500 - 80,000MOQ: 1 Set
Condition
New
Type
Preform Injection
Style
Vertical
Brand Name
Qianke
Model Number
C85
Place of Origin
Guangdong, China
Plastic Type
Thermoplastic
Automatic
Yes
Injection Weight
168g
Injection Rate
125cm3/s
Clamping Force
35-120 Ton, 35-120 Ton
Certification
CE
After-sales Service Provided
Overseas service center available
Specifications
1.Clamping force 35-120tons2.Vertical clamping,Vertical injection,easy to insert
3.Famous brand in each parts.
4.Yuken,Omron
1,Specifications
| Unit | C85 | |||
| Injection Unit | Screw Diameter | mm | 38 | |
| Theoretical Injection Volume | cm3 | 181 | ||
| Injection Weight(PS) | g(oz) | 168(5.9) | ||
| Max.Injection Pressure | Mpa(kgf/cm2) | 173(1760) | ||
| Injection Rate | cm3/s | 125 | ||
| Injection Speed | mm/s | 111 | ||
| Screw Speed Rotation | r.p.m | 0-300 | ||
| Clamping Unit | Clamping Force | KN(tf) | 833(85) | |
| Clamping Stroke | mm | 270 | ||
| Min.Mold Thickness | mm | 185 | ||
| Max.Opening | mm | 455 | ||
| Max.Mould Size | mm | 500*350 | ||
| Platen/Slide Size | mm | 590*396 | ||
| Ejector Distance | mm | 90 | ||
| Ejector Force | KN(tf) | 26.5(2.7) | ||
| Others | System Pressure | Mpa(kgf/cm2) | 13.7(140) | |
| Oil Tank Capacity | L | 350 | ||
| Electric Power | KW(HP) | 15(20) | ||
| Heater Power | KW | 10.2 | ||
| Machine Dimensions | L*W | mm | 2787*1250 | |
| H | mm | 2404 | ||
| Machine Weight | tf | 5.2 | ||
2,Pictures
