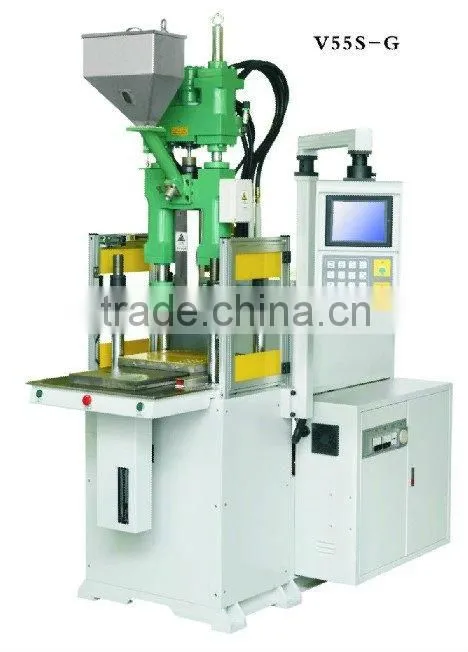

160T Good Vertical Injection Molding Machine
US$ 1,500 - 80,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Preform Injection
Style:
Vertical
Payment & Shipping
Payment Methods:
Port of Shipment:
Zhongshan
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
35T Good Vertical Injection Molding Machine V-35SDUS$ 1,500 - 80,000MOQ: 1 Set -
55T Good Vertical Injection Molding Machine VS55D-GUS$ 1,500 - 80,000MOQ: 1 Set
-
120T Good Vertical Injection Molding MachineVS120D-GUS$ 1,500 - 80,000MOQ: 1 Set
-
160T Good Vertical Injection Molding Machine VS160D-GUS$ 1,500 - 80,000MOQ: 1 Set
-
85T Good Vertical Injection Molding Machine VS85D-GUS$ 1,500 - 80,000MOQ: 1 Set
Condition
New
Type
Preform Injection
Style
Vertical
Brand Name
Qianke
Model Number
V160-S
Place of Origin
Guangdong, China
Plastic Type
Thermoplastic
Automatic
Yes
Injection Weight
296-442g
Injection Rate
112(121)mm/s
Clamping Force
160Tf, 30-500 Ton
Opening Stroke
300mm
Certification
CE
After-sales Service Provided
Overseas service center available
Specifications
1.Clamping force 35-500tons2.Vertical clamping,Vertical injection,easy to insert
3.Famous brand in each parts.
4.Yuken,Omron
1,Qualifications
| Unit | V160S | |||||
|
Injection Unit |
Screw Diameter | mm | 45 | 50 | 55 | |
| Theoretical Injection Volume | cm3 | 318 | 393 | 475 | ||
| Injection Weight(PS) | g(oz) | 296(10.4) | 365(12.8) | 442(15.6) | ||
| Max.Injection Pressure | Mpa(kgf/cm2) | 218(2226) | 177(1803) | 146(1490) | ||
| Injection Rate | cm3/s | 178 | 220 | 266 | ||
| Injection Speed | mm/s | 112(121) | ||||
| Screw Speed Rotation | r.p.m | 0-300 | ||||
| Nozzle Out From Platens | mm | ≥45 | ||||
| Clamping Machine | Clamping Force | KN(tf) | 1568(160) | |||
| Clamping Stroke | mm | 300 | ||||
| Min.Mold Thickness | mm | 300(400) | ||||
| Max.Opening | mm | 600(700) | ||||
| Distance Between Tie Bars | mm | 860*420 | ||||
| Max.Mould Size | mm | 710*630 | ||||
| Platen/Slide Size | mm | 730*650 | ||||
| Ejector Distance | mm | 125 | ||||
| Ejector Force | KN(tf) | 45(4.6) | ||||
| Others | System Pressure | Mpa(kgf/cm2) | 13.7(140) | |||
| Oil Tank Capacity | L | 500 | ||||
| Electric Power | KW(HP) | 22.5(30) | ||||
| Heater Power | KW | 13.8 | ||||
| Machine Dimensions | L*W | mm | 2687*1960 | |||
| H | mm | 3632(4564) | ||||
| Machine Weight | tf | 8.1 | ||||

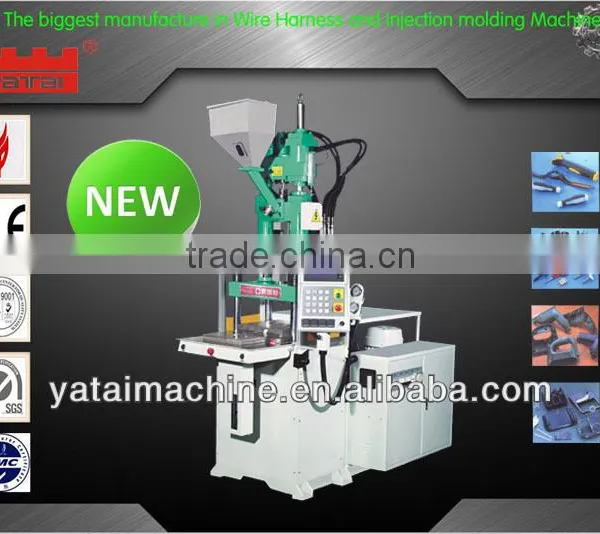

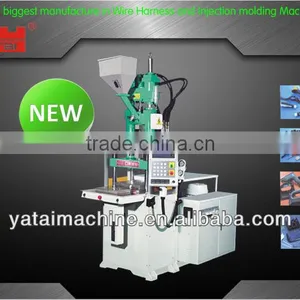

2,Pictures
1.Clamping force 35-500tons
2.Vertical clamping,Vertical injection,easy to insert
3.Famous brand in each parts.
4.Yuken valves ,Omron PLC,Siemens Motor.
