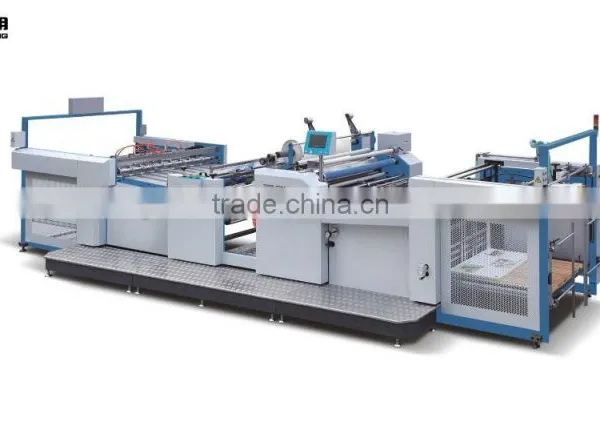

SGFM-1100A Fully Automatic Laminating Machine
Applications:
To two kinds of film: pre-glued film and glueless film
Features:
SGFM-1100A fully automatic laminator is newly developed upon the old model SGFM-1100 for the big size of paper lamination with glueless film or pre-glued film. The machine realizes complete automation to paper feed, lamination, paper cut, paper receiving and temperature control. The electrical and pneumatic devices are controlled by PLC (programmable control) system, and can be operated easily via touch screen. Enlarged size of heating roll adopts built-in oil heating system. The collecting unit is equipped with corrugating paper pressing system, which settles completely the crimping trouble of thin and big size of laminated paper.
This machine centralizes the features of high automation, high precision of lamination, humanized configuration and easy operation, and is an excellent performance of equipment for the best choice of large and medium-size enterprises.
Configuration:
1. Automatic paper feeder adopts oil-free vacuum pump to feed paper automatically. And paper can be added even if the machine is kept running, which improves working efficiency so much.
2. Man-machine interface system: color touch screen simplifies the machine operation. On the touch screen, as long as the operator inputs paper size, overlap length and working speed etc., the machine can realize completely automated operation. And on touch screen, working status of the machine can be checked at any time.
3. Automatic paper feeding system is equipped with no paper protector, paper break protector and paper superposing protector, which are controlled by photoelectric and mechanical systems. When no paper, paper break or paper superposition occurs, the machine will stop automatically for self-protection.
4. Conveying table is furnished with air aspirator and front lay etc. to regulate paper conveying and overlap and improve lamination prevision.
5. High precision of big chrome plated heating roller is equipped with built-in oil heating system, which has excellent performance to temperature control. The laminating temperature is adjustable upon applications.
6. Hydraulic pressuring system provides automatically big and steady pressure to guarantee good laminating quality.
7. Air expansion shaft releases film, and perfects the precision of film release, and also makes the loading and unloading of film roll much more convenient.
8. The combination of air expansion shaft and braking device can adjust film release tension and release speed.
9. Pneumatic cutting system realizes automatic paper cut as long as the operator inputs the size of workable paper on the touch screen.
10. Collecting unit is furnished with corrugating paper pressing system, which settles completely the crimping trouble of thin and big size of laminated paper.
| Technical Parameters: | |
|---|---|
Model No. |
SGFM-1100A |
Max Paper Size |
1100*1200mm |
Min Paper Size |
300*300mm |
Laminating Speed |
0-50m/min |
Paper Thickness |
100-500gsm |
Gross Power |
30kw |
Overall Dimensions |
9000*2260*1900mm |
Weight |
5000kgs |
