Hydraulic clamping
Protect mould better
Great product surface!
Servo motor driving
50%-70% energy saving
Perfect cost performance!
| Model No. | NCII-230 | |||
| Screw Diameter | mm | 45 | 50 | 56 |
| Injection Weight(P.S.) | g | 369 | 456 | 572 |
| oz | 13 | 16.1 | 20.2 | |
| Injection Pressure | kgf/cm2 | 2286 | 1851 | 1476 |
| Length/Diameter Ratio | L/D | 22.3 | 20 | 17.8 |
| Injection Speed | 106 | |||
| Injection Rate | mm/sec | 169 | 209 | 262 |
| Screw Speed | r.p.m | 155 | ||
| Plasticizing Capacity(P.S.) | kg/hr | 66 | 102 | 132 |
| Hopper Capacity | kg | 100 | ||
| Mold Opening Force | ton | 8 | ||
| Mold Opening Stroke | ton | 230 | ||
| Mold Clamping Force | mm | 710 | ||
| Min.Mold Thickness | mm | 220 | ||
| Max.Daylight Opening | mm | 930 | ||
| Distance Between Tie Bars | mm | 535*510 | ||
| Mold Plate Dimension | mm | 775*750 | ||
| Ejector Force | ton | 8.5 | ||
| Ejector Stroke | mm | 200 | ||
| Ejector Quantity | p.c.s | 5 | ||
| Pump Motor | kw(HP) | 22(30) | ||
| Heater Band Capacity | kw | 13.43 | ||
| No.of Heating Zone | Nozzle+3 | |||
| Oiltank Capacity | L | 549 | ||
| Machine Dimension(L*W*H) | m | 5.56*1.3*1.75 | ||
| Machine Weight | ton | 7.4 | ||

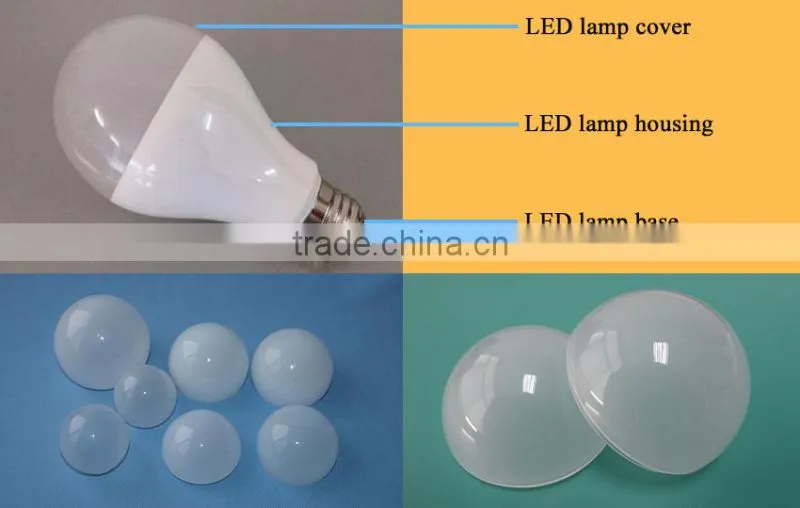

The project we made for LED lamp cover manufactuer,thin wall technology replace part of plastic blowing molding machine functions!
1. Provide free guidance before you start using our plastic injection molding machine
2. 1 year warranty
3. Free remote guidance by video chat when you have problem during use our phone case making machine
1. Check and test the machine carefully before shipping
2. We will arrange to manufacture the second day after confirmation,we can delivery it usually after 45days
3. According to the destination,we will compare several transportation companies and select the most suitable and economic one to provide service for us
Zhongshan Yatai Machinery Co., Ltd. is biggest wire processing factory in the area of perl river delta region ,Specialized in R&D and producing plastic injection molding machines, full auto wire stripping crimping machines, cutting stripping machines, tube cutting machines and automatic robot hands.If you want to know more about our pruducts,please browse the website as follows
