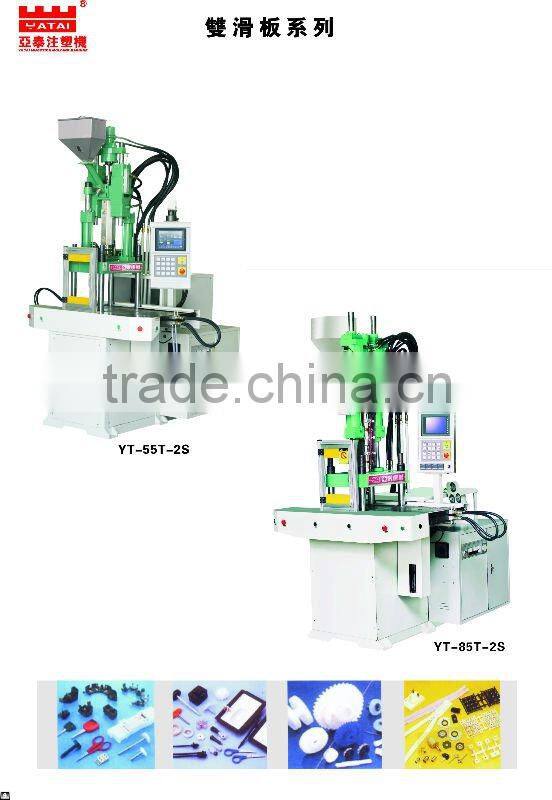

2011 Injection Molding Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Preform Injection
Style:
Vertical
Payment & Shipping
Payment Methods:
Port of Shipment:
Zhongshan
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2011 Injection Molding MachineNegotiableMOQ: 1 Set -
2011 Plastic Injection Molding MachineNegotiableMOQ: 1 Set
-
2011 Injection Molding MachineNegotiableMOQ: 1 Set
-
2011 Injection Molding MachineUS$ 3,500 - 5,000,000MOQ: 1 Set
-
2011Vertical Injection Molding Machine -YT-VD120-1SNegotiableMOQ: 1 Set
Condition
New
Type
Preform Injection
Style
Vertical
Brand Name
YATAI
Model Number
YT-85T-2S
Place of Origin
Guangdong, China
Plastic Type
Thermoplastic
Automatic
Yes
Injection Weight
194g
Injection Rate
0-180
Clamping Force
85T
Opening Stroke
200
Specifications
1.85T injection molding machine2.High efficiency and stable injection
3.Most famous component parts
4.With double Slider
Main advantage :
1.85T injectiong molding machine
2.High efficiency and stable injection
3.Most famous component parts
4.With double Slider
|
YT-85T-2S | 1 | 2 | |
| Injection Unit | Clamping force (Tf ) | 85 | ||
| Screw Diameter (mm) | 36 | 42 | ||
| Injection Volume (cm3) | 158 | 215 | ||
| Injection Weight(PS) (g/oz) | 141/5 | 194/7 | ||
| Injection Pressure (kg/cm2) | 2176 | 1599 | ||
| Screw Speed (RPM) | 0~180 | |||
| Screw Stroke (mm) | 155 | |||
| Clamping Unit | Space Between Tie-Bars(mm) | 500x350 | ||
| Min.Mould Thickness (mm) | 180-380 |
|||
| Ejection Force (Tf) | 2.7 | |||
| Ejection Stroke (mm) | 100 |
|||
| Power unit and General | Slider stroke | 550 | ||
| Motor Power (kw) | 11.1 | |||
| Heater Power (kw) | 6.7 |
|||
| Dimenshion(LxWxH) m | 2.6x1.7x3.6 | |||
| Machine Weight (kg) | 5100 | |||
Each parts details :
Hydraulic Oil pump : Yuken (Made in Japan)

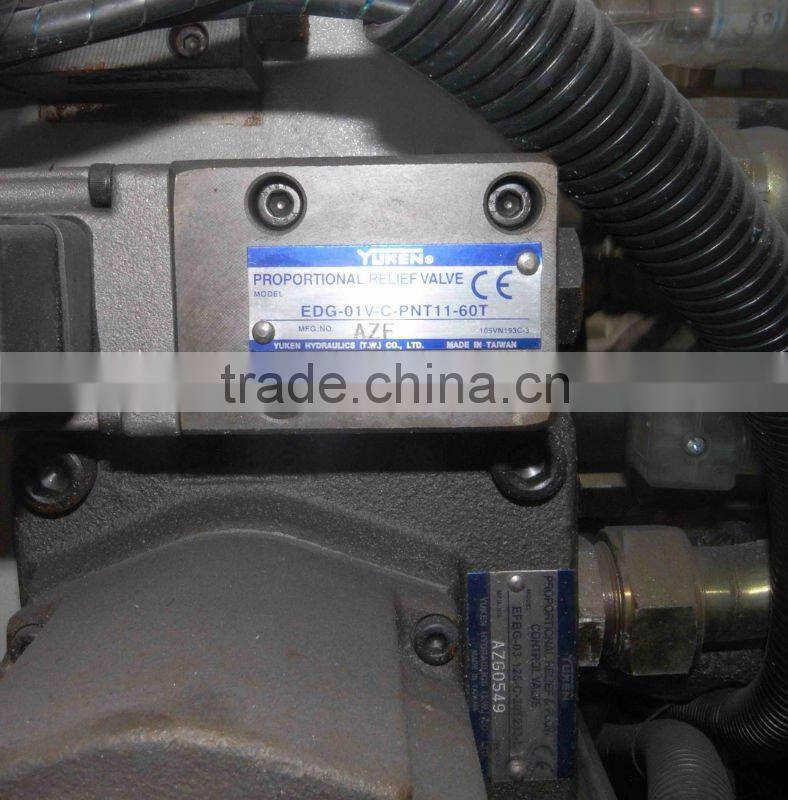

Proportional Valve:Yuken (Made in Japan)
Direcional Valve: Seven Ocean(Made in Taiwan)
Control system : PORCHESON (Made in Australia)
Electricl parts :Shihlin (Made in Taiwan )
General Purpose Light Curtain : FOTEK (Made in Taiwan )
Switchs : FOTEK (Made in Taiwan)
Barrel :Tai-star (Made in Dongguan)
Motor : Dongguan (Made in Dongguan)
Oil seal :Nok(Made in Japan)
Bearing:Nsk (Made in Japan)
Steel material : CKD11 S45C
Hydraulic pressure motor :DANFOSS (Made in Danmark)
