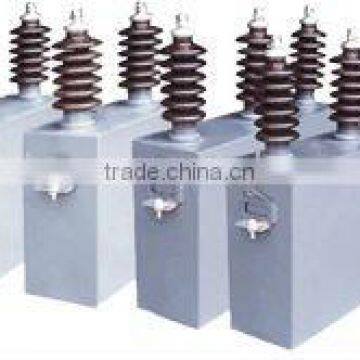

Product: High Voltage Power Capacitor-11kV, 50Hz
Application:
The capacitors are designed for power factor correction and harmonics filtration in power network.
Benefit:
- - Improve Power Factor
- Reduce Line Losses
- Decrease Voltage Drop
Through that it helps greater Energy Efficiency.
- Power Range : Single Phase 25Kvar to 1000Kvar
: There Phase 50Kvar to 500Kvar
- Voltage Range : Single Phase 1000V to 22000V
: Three Phase 1000V to 11000V
- Frequency : 50Hz / 60Hz
Technical performance
Standards : |
GB/T 11024.1 / IEC 60871.1 |
Location: |
Less 1000m |
Cooling |
Naturally air cooled |
Ambient temperature: |
-40/+45°C |
Capacitance tolerance: |
-5 / +10 % |
Continuous operation voltage: |
1.0Un, long-term max. Overvoltage:less1.1Un. |
Over- current: |
Less 1.43 In |
Max. Permissible output: |
less 1.35Qn. |
Discharge device (on request): |
Less than 75V in 10min |
Voltage test between terminals: |
2.15×Un AC / 10s |
Service condition
1. Altitude less than 1000m;
2. Ambient temperature: -40°C~+45°C;
3. No strong mechanical vibration at installing. No corrosive gas, inductive dust, and in flammable and explosive media in the ambient environment.
*Other voltage, power and frequency on request.
We can supply the special requirement for the customers as follows:
1. Discharge resistance inside; 2. Internal fuse inside; 3. Wet tropics; 4. Plateau section

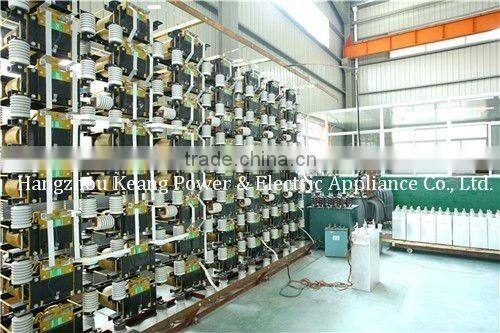

Test:
We constantly endeavor to build new business relations and partnerships.
