36X Auto-Tracking High Speed Dome PTZ Camera Ptz Security High Speed Dome Camera 700tvl

36X Auto-Tracking High Speed Dome PTZ Camera Ptz Security High Speed Dome Camera 700tvl thumbnail-1
36X Auto-Tracking High Speed Dome PTZ Camera Ptz Security High Speed Dome Camera 700tvl photo-1
US$ 200 - 400 MOQ: 4 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Aliviz
Model Number:
AS-AT88XX Series
Contact Supplier Request Quote Chat Now
Aliviz Security (Shenzhen) Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Aliviz
Model Number AS-AT88XX Series
Type Analog Camera
Style Dome Camera
Sensor CCD
Technology Pan / Tilt / Zoom
Special Features Waterproof / Weatherproof

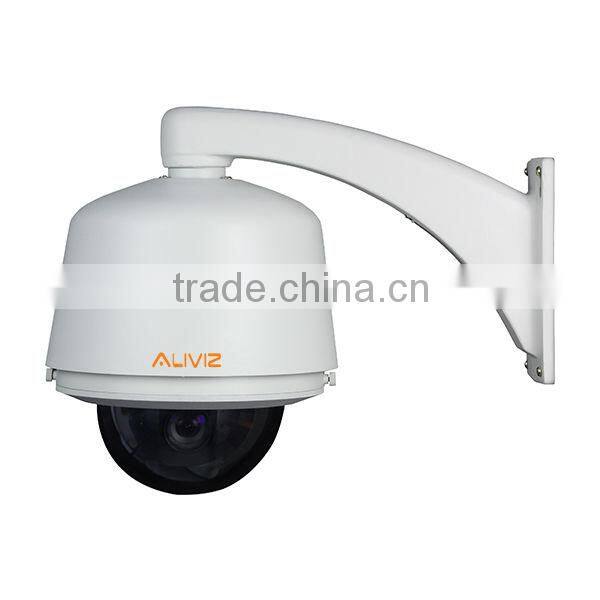

36X Outdoor AutoTracking High Speed PTZ Camera with SONY Zoom Module

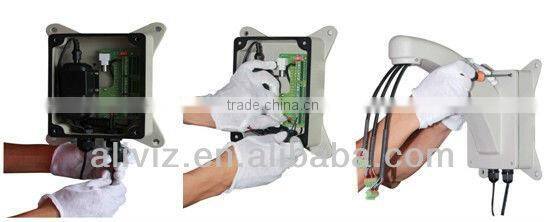

With wall mount and power box
36X Auto-Tracking High Speed Dome PTZ Camera ptz security high speed dome camera 700tvl

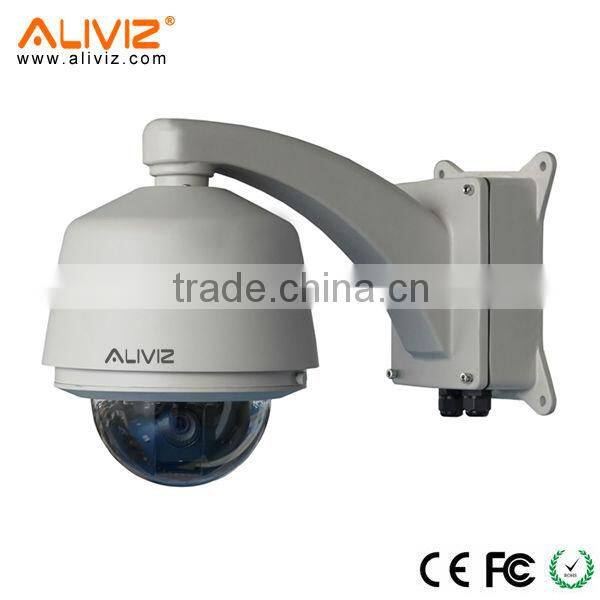

IP Camera wall mount with Power supply Box

36X Auto-Tracking High Speed Dome PTZ Camera ptz security high speed dome camera 700tvl

With Wall mount



 36X Auto-Tracking High Speed Dome PTZ Camera ptz security high speed dome camera 700tvlSPECIFICATIONS



Model
AS-AT8836
Camera   Specification
Image Sensor
1/4” Progressive Scan EXview HAD CCD
Effective Pixels
PAL: 752(H) x 582(V), NTSC: 768(H) x x494(V)
Horizontal Resolution
600TVL(Color), 650TVL(B/W)
Min. Illumination
0.1Lux/F1.6(Color), 0.01Lux/F1.6(B/W)
Lens
36X
f=3.4mm(wide) ~ 122.4mm(tele), F1.6 ~ F4.5
Digital Zoom
12X
Angle of View
57.8°(wide) ~ 1.7°(tele)
Close Focal Distance
320mm(wide) ~ 1500mm(Tele)
Electronic Shutter
PAL: 1/3 ~ 1/10000 sec. (20 steps), NTSC: 1/4 ~ 1/10000 sec. (20 steps)
WDR
ON/OFF/AUTO
Day/Night
ICR, ON/OFF/AUTO
3D Noise Reduction
ON/OFF (level 5 to 1 / OFF, 6 steps)
Gain
Auto/Manual/Max. Gain Limit (-3 dB to +28 dB, 2 dB steps)
Exposure Control
Auto, Manual, Priority mode
BLC
ON/OFF
White Balance
Auto, ATW, Indoor, Outdoor, Outdoor Auto
Picture Effects
E-Flip, Nega Art, Black & White
S/N Ratio
Above 50 dB
Privacy Masking
ON/OFF (up to 24 privacy masking areas)
Video Output
BNC(1.0Vp-p / 75Ω), PAL / NTSC
Dome Drive
Pan/Tilt Range
Horizontal: 0°~360° endless, Vertical: -2°~90° auto flip 180°
Manual Control Speed
Horizontal: 0.1° ~160° /s, Vertical: 0.1° ~120° /s
Preset Speed
Horizontal: 240° /s, Vertical: 200° /s
Preset
255
PTZ Mode
5 Auto Pattern, 8 Auto Tour, 5 auto scan
3D Positioning
Yes
Speed Setup
Human-oriented focal Length/ speed adaptation
Info Display
Time, Location, Dome title
Power up Action
Auto restore to previous PTZ and lens status after power failure
Idle Motion
Activate preset/scan/tour/ patter
Time Task
Auto
Alarm
Optional
White and Black
YES, Day and Night support
Remote Upgrade
Yes, RS485
Protocol
 Pelco-P/D
General
Power Supply
AC 24V/3A (±10%)
Power Consumption
12W/30W(IR lamp on)
Working Temperature
-20ºC ~ 60ºC
Protection Level
                                                         IP66 and 4000V





36X Auto-Tracking High Speed Dome PTZ Camera ptz security high speed dome camera 700tvl
