FEATURES
1.Support 4CH Full D1
2.Dual-stream design, network remote view effects and local recording effects
3.Parameters can be set separately, independently of each other.
4.Hexaplex operation simultaneously: Preview, recording, playback, backup,
network live, mobile phone view
5.Support Multiple channel playback (Support 4CH playback simultaneously, each
channel can be enlarge to full screen)
6.Support Network function: one IE browser centralized monitoring and CMS Software
for multiple DVR (up to 255 DVR simultaneously)
7.Recording playback support :Normal play, Speed play, Fast back play, Manual single-frame slow play
8.Supports Built-in free DDNS domain name, with Server address:
9.Support Mobile phone remote view by Symbian S60V3/V5;WindowsMobile;
10.Android system; phone; Blackberry
11.Support alarm triggered recording will send alerts matter to the designated email.
12.System auto recovery to power after power reconnected, and return to the pre-power-down state
SPECIFICATION
4 CH H.264 DVR AS-9104LVS | |
|
Video Compression Format |
H.264 |
Video System |
NTSC / PAL |

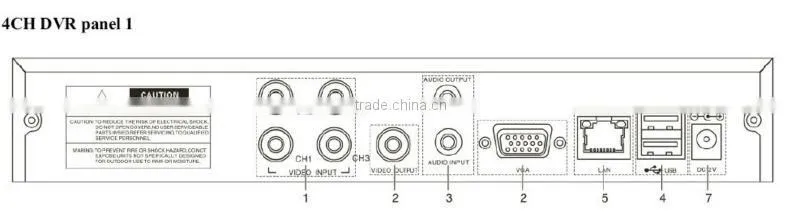

Video Input/Output(BNC) |
4CH BNC input/1CH BNC output |
Audio Input/ Output |
1CH audio input,1CH audio output(RCA) |
Maximum Recording Rate |
D1:704*480 pixels with 60 IPS /704*576 pixels with 50 IPS |
Image Quality Setting |
Supper Best, Well, Good, Medium, Normal and Bad |
Hard Disk Storage |
Support one SATA HDD, unlimited for the capacity |
Alarm Input /Output |
1CH alarm input,1CH alarm output |
Multiplex Operation |
Live display/record/playback/backup/network transmit |
Recording Mode |
Auto/Manual/Timer/Motion/Alarm |
Playback Mode |
Multiple slow and rapid play speeds, manual and single-frame |
Backup Device |
USB flash disk/USB remove HDD/Network |
Pre-alarm Recording |
Recording for 10 seconds before alarming |
Network Protocol |
TCP/IP,PPPOE ,DDNS ,FTP,UPNP,ARSP and NTP |
Ethernet remote view |
Support remote surveillance up to 10 users simultaneously |
VGA Interface |
YES ,support VGA and BNC can work at the same time |
Log record function |
YES |
Video Loss Detection |
YES |
Video Adjustable |
Hue /Saturation /Contrast /Brightness adjust |
PTZ Control |
YES ,built-in RS485 port, support 17 kinds protocols |
IR Remote control/USB Mouse |
YES |
Power Source |
DC 12V |
Size(mm) |
260(W) x 45(H) x 234(D) |
