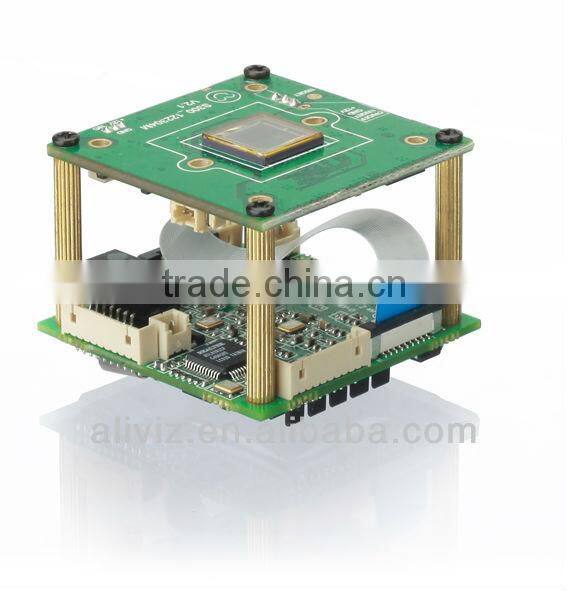

Top 10 HD 720P WDR Low Lux Megapixel Network ip Camera Board

Name: Top 10 HD 720P WDR Low Lux Megapixel Network ip Camera Board
Brand: Aliviz
SKU: 111064207
Availability: InStock

Top 10 HD 720P WDR Low Lux Megapixel Network ip Camera Board thumbnail-1

Top 10 HD 720P WDR Low Lux Megapixel Network ip Camera Board photo-1

US$ 80 - 100 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

Aliviz

Model Number:

AS-H723

Contact Supplier Request Quote Chat Now

Aliviz Security (Shenzhen) Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name Aliviz

Model Number AS-H723

Type Digital Camera

Style Dome Camera

Sensor CMOS

Technology NetWork

Special Features Waterproof / Weatherproof

FEATURES

1. High Resolution 1/2.8’’ Megapixel CMOS Sensor

2. Built in 2.8-12mm Megapixel Lens Optional

3. H.264 / MJPEG compression Optional

4. 1MP:1280*720,D1:640*480, ONVIF 2.1 Compliant

5. Real time transmission can up to 25FPS@720P

6. Day & Night application

7. Support 2-Way Audio

8. Support Hardware Motion Detection

9. DC12V or Power Over Ethernet (PoE IEEE802.3af)

10. Wall Mount Optional, IP66 weatherproof

IP Module

SPECIFICATION

MODEL	AS-H723
Main Processor	Hi3518
Sensor	SONY 1/3"Ex-view Megapixel CMOS with Low Lux and WDR
Max. Res./Max Frame Rate	1280x720@25fps
Min. illumination	0 Lux (IR LED On)
CAMERA
Day/Night	True Day/Night with ICR Filter. High Powered IR LEDs
Lens	2.8-12mm Megapixel Varifocal Lens
Horizontal Field of View	78.5°-29.8°
IR LED	35pcs super Flux IR LED
IR Distance	20-25 Meters (65-82 feet)
Electronic Shutter	Auto/ User 1/5-1/15,000 sec
VIDEO
Compression	H.264 main profile 5.0 Level
Streaming	Dual Stream Transfer(H.264)CBR/VBR Adjustable Main Stream(1M~8Mbps)With Local Skim, TF Card etc. Sub-Stream(0.5MK~2Mbps)With Network Transfer.
Quality Setting	1-9 Level
Brightness/Sharpness	Variable 0-100/0-100
Gain Control	Auto
Text Overlay	Time/Date/Camera/Customs OSD
Masking	8 Masking / No limit (through software)
NETWORK
Ethernet	1 Ethernet (10/100 Base-T),RJ-45 connector
TCP/IP	IPv4/IPv6(DHCP/Fixed)
Compliance	Onvif V 2.0
RTSP Video	Standard RFC2326, Support Quicktime/VLC Player. User Security at Three level administrator,Password protection
Recording Simultaneous	Local Recording,Remote FTP server,TCP/UDP CMS,RTSP Connection
Network Protocol	TCP,UDP,IP,HTTP,FTP,SMTP,DHCP,DNS,ARP,ICMP,POP3,NTP,RTP, and RTCP. Video Streaming from SDK&NVMS/NVR software or 3rd Party applications.
Web Language	English/ Chinese
AUDIO
Input/Output	1X RCA input/ 1xRCA output@1V Line Level
Audio Compression	G.726
GENERAL
Power	DC12V,1A (IR LED On) / PoE Class 3
Temperature	Operating:-10°C~55°C (14°F-131°F); Storage:-20°C~60°C(-4°F-140°F)
Operating Humidity	10%-85% RH
Approvals	CE/FCC Compliant;ISO
Product Dimensions	118x64x64mm
Product Weight	Net Weight :1.2KG; Gross Weight:1.5KG
