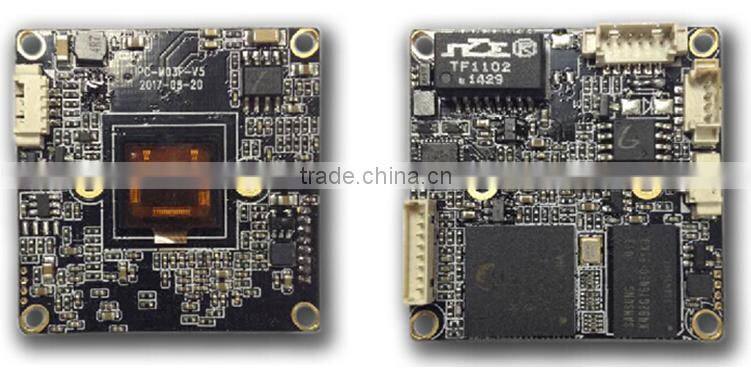

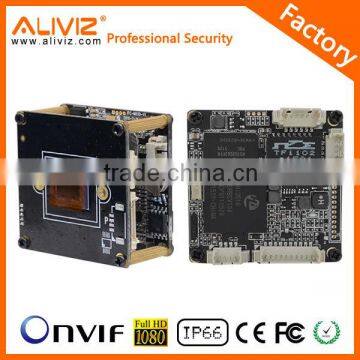

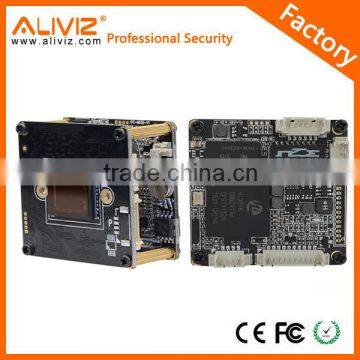

cctv camera system ip camera module

Model

IP1201C-2MP

IP1201CF-2MP

Camera

Image Sensor

1/2.8” 2.0 megapixels Progressive Sony IMX322 CMOS

CPU

Hisilicon 3516C

Effective Pixels

1920(H)x1080(V)

Scanning System

Progressive

Electronic Shutter Speed

Auto (1/25 ~ 1/10000s)

Min. Illumination

0. 01Lux/F1.2 (Color), 0.001Lux/F1.2(B/W)

S/N Ratio

≥50db(AGC OFF)

Camera Features

Day/Night

Auto(ICR)/Color/B/W

WDR

Digital WDR

White Balance

Auto

Gain Control

Auto

Noise Reduction

3D

Privacy Masking

Up to 4 areas

Video

Compression

H.264/MJPEG

Resolution

1080P(1920×1080)/720P(1280×720)/D1(704×576)/VGA(640*480)/QVGA(320×240)

Frame Rate

Main Stream

1080P/720P (1 ~ 25/30fps)

Sub Stream

D1/VGA/QVGA(1 ~ 25/30fps)

Bit Rate

32KB ~16Mbps, support VBR, CBR

Text Overlay

Channel, Date & Time, Bit Rate

Network

Data Storage

Video record, Picture format

Trigger

Manual, Automatic(motion detection, alarm, schedule,cycle )

Alarm data transmission

FTP, E-mail, Browser, CMS

Protocol

TCP/IP,UDP,RTP,RTSP,RTCP,HTTP,DNS,DDNS,DHCP,FTP,NTP,PPPOE,SMTP,UPNP

ONVIF

ONVIF 2.3

Max. User Access

10 users, IE, Google, Firefox

Smart Phone

Windows Mobile, iPhone, iPad, Android

Auxiliary Interface

Audio in

N/A

Support

Audio out

N/A

Support

BNC Video out

N/A

N/A

Memory Slot

N/A

N/A

USB

N/A

Support(WIFI, USB flash 64G)

Alarm in / out

N/A

N/A

Reset

N/A

Support

General

Power Supply

DC12V / PoE (802.3af)

Power Consumption

<3W

Working Environment

-20°C~+55°C , Less than 90% RH

Dimensions

38mm×38mm×15mm

Weight

0.02kg

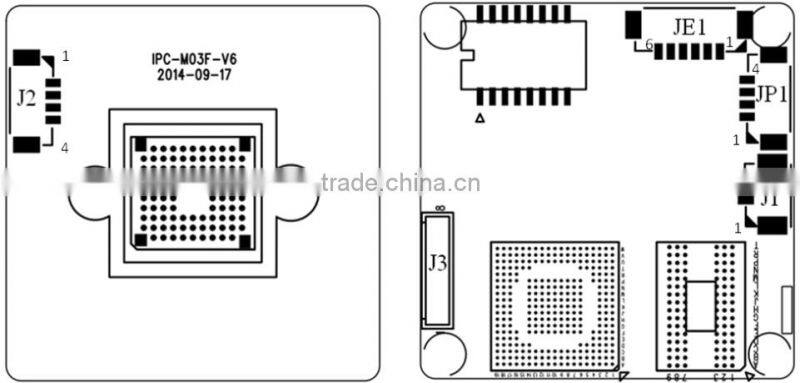

IP1201C-V2 / IP1201CF-V2

JP1 Power Supply Connector

1

DC12V

2

CMT_R

3

CMT_R

4

GND

JE1 Network Connector

1

RJ45_1

2

RJ45_2

3

RJ45_3

4

RJ45_6

5

Network Connected Light (green light)

6

Network Status Light (Yellow light)

J1 IR-cut Connector

1

IR-CUT Control Signal 3.3V

2

IR-CUT Control Signal 3.3V

J2 IR Light Board Connector

1

IR Light Board Power Supply (12V)

2

GND

3

IR Feedback Signal Input (0.8V-12V)

4

IC PWM Control

J3 Functions Connector (J3 only for IP1201CF, IP1201CF haven`t J3)

1

Audio in

2

Audio GND

3

Audio out

4

Reset

5

GND

6

USB_DP

7

USB_DM

8

5V Power supply
