3 Megapixel IP Camera Module

3 Megapixel IP Camera Module thumbnail-1
3 Megapixel IP Camera Module photo-1
US$ 26.00 - 26.00 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ALIVIZ
Model Number:
S124H3516D-L26-3MP
Contact Supplier Request Quote Chat Now
Aliviz Security (Shenzhen) Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name ALIVIZ
Model Number S124H3516D-L26-3MP

S124H3516D-L26

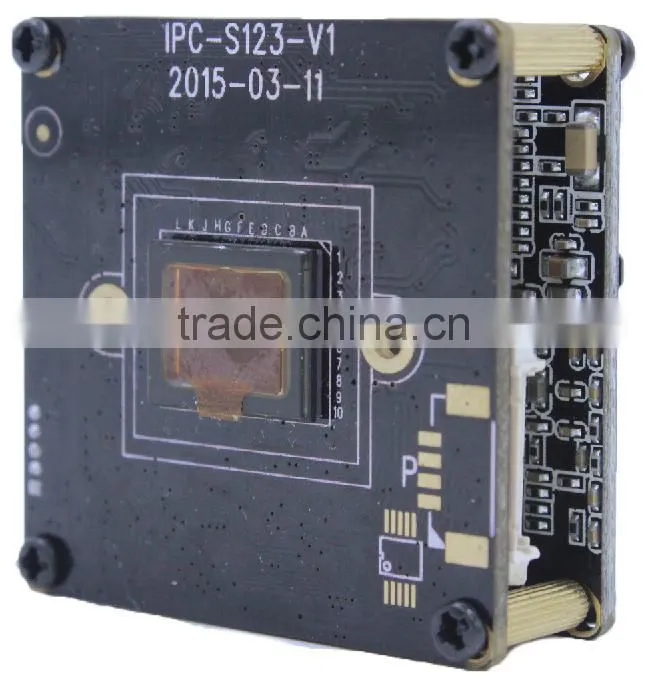

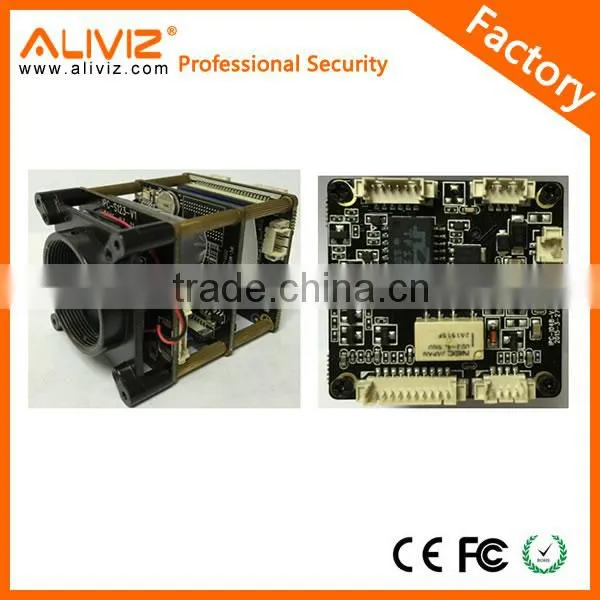

3.0 megapixel Super low-illumination 2 Boards IP Camera Module, Hi3516D + SONY IMX124 CMOS

1/2.8" 3.0 Megapixels Progressive Scan Sony IMX124 CMOS, Hisilicon Hi3516D Chipset, the highest resolution of 2048*1536, 0.001 Lux @ F1.2 (color); 38X38mm 2 boards ; RS485,Optional Motorized lens, IR - CUT (day/night), adapt Bullet, Dome;H.264 or H.265 video coding, double stream, ONVIF 2.4, be compatible many NVR and platform management software.

3 Megapixel IP Camera Module

Features

> Hisilicon Hi3516D

>1/2.8"3.0 Megapixels Progressive Scan Sony IMX124 CMOS

> Max 25/30fps @ 2.0 Megapixels (2048*1536)

> H.264/H.265 & MJPEG dual-stream encoding

> Super low-illumination, 0.001 Lux @ F1.2 (color)

> Privacy Mask, Motion Detection

> Support Onvif 2.4 protocol

> WDR>80db



Specifications

Model

S124H3516D-L26

Camera

Image Sensor

1/2.8” 3.0 megapixels Progressive Sony IMX124 CMOS

CPU

Hisilicon 3516D

Effective Pixels

2048(H)x1536(V)

Scanning System

Progressive

Electronic Shutter Speed

Auto (1/25 ~ 1/10000s)

Min. Illumination

0. 001Lux/F1.2 (Color)

S/N Ratio

≥50db(AGC OFF)

Camera Features

Day/Night

Auto(ICR)/Color/B/W

WDR

>80db

White Balance

Auto

Gain Control

Auto

Noise Reduction

3D

Privacy Masking

Up to 4 areas

Video

Compression

H.264/MJPEG/H.265

Resolution

2048*1536/1080P(1920*1080)/720P(1280*720)/D1(704*576)/VGA(640*480)/QVGA(320*240)

Frame Rate

Main Stream

2048*1536/1920*1080/720P(1280*720)(1 ~ 25/30fps)

Sub Stream

D1/VGA/QVGA(1 ~ 25/30fps)

Bit Rate

32KB ~16Mbps, support VBR, CBR

Text Overlay

Channel, Date & Time, Bit Rate

Network

Data Storage

Video record, Picture format

Trigger

Manual, Automatic(motion detection, alarm, schedule,cycle )

Alarm data transmission

FTP, E-mail, Browser, CMS

Protocol

TCP/IP,UDP,RTP,RTSP,RTCP,HTTP,DNS,DDNS,DHCP,FTP,NTP,PPPOE,SMTP,UPNP

ONVIF

ONVIF 2.4

Max. User Access

8 users, IE, Google, Firefox

Smart Phone

Windows Mobile, iPhone, iPad, Android

Auxiliary Interface

Audio in

Support

Audio out

Support

BNC Video out

Support

RS422/RS485

Support

USB

Support (64G USB flash/WIFI/3G)

Alarm in

Support

Alarm out

N/A

IO Interface

Support

General

Power Supply

DC12V / PoE (802.3af)

Power Consumption

<3W

Working Environment

-20°C~+55°C , Less than 90% RH

Dimensions

38 x 38 x 20mm

Weight

0.15kg

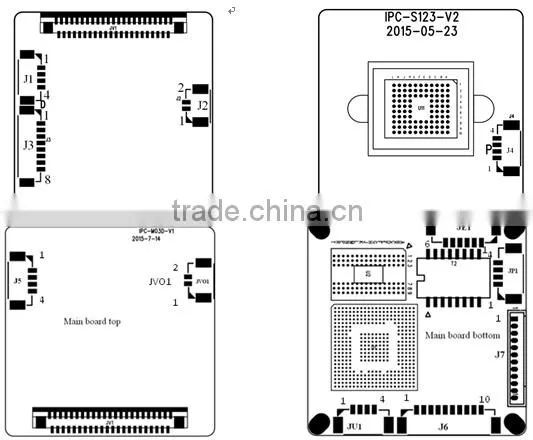

Connector

S124H16D-L26

3 Megapixel IP Camera Module

3 Megapixel IP Camera Module

JP1 Power Supply Connector

1

DC12V

2

CMT_R

3

CMT_T

4

GND

JE1 Network Connector

1

RJ45_1

2

RJ45_2

3

RJ45_3

4

RJ45_6

5

Network Connected Light (Green light)

6

Network Status Light (Yellow light)

J1 IR-cut Connector

1

IR-CUT Control Signal5V

2

IR-CUT Control Signal5V

J2 DC Auto-iris Connector

1

Drive -

2

Damp-

3

Damp+

4

Drive +

J3 Motorized Lens Connector(For AZ Series and lens YT2812FB.ICR-J-6)

1

Zoom A+

2

Zoom A-

3

Focus A+

4

Focus A-

5

Focus B+

6

Focus B-

7

Zoom B+

8

Zoom B-

J4 P-Iris Connector

1

IRIS A-

2

IRIS B+

3

IRIS A+

4

IRIS B-

J5 IR Light Board Connector

1

IR Light Board Power Supply (12V)

2

GND

3

IR Feedback Signal Input (0.8V-12V)

4

IC PWM Control

JVO1 BNC Video out

1

BNC Video out

2

GND

J6 Functions Connector

1

Audio In (MIC/ Line )

2

GND (Audio)

3

Audio Out

4

GND

5

IO Interface

6

Alarm In

7

NULL

8

NULL

9

RS_485+

10

RS_485-

JU1

1

GND

2

USB_DP

3

USB_DM

4

5V Power Supply
