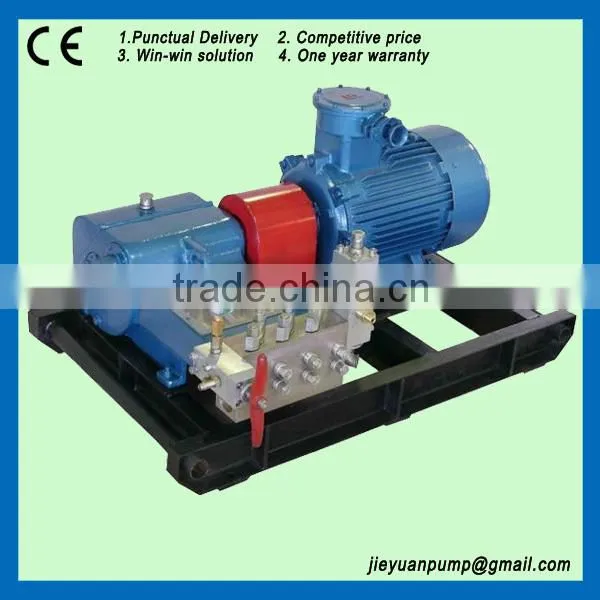

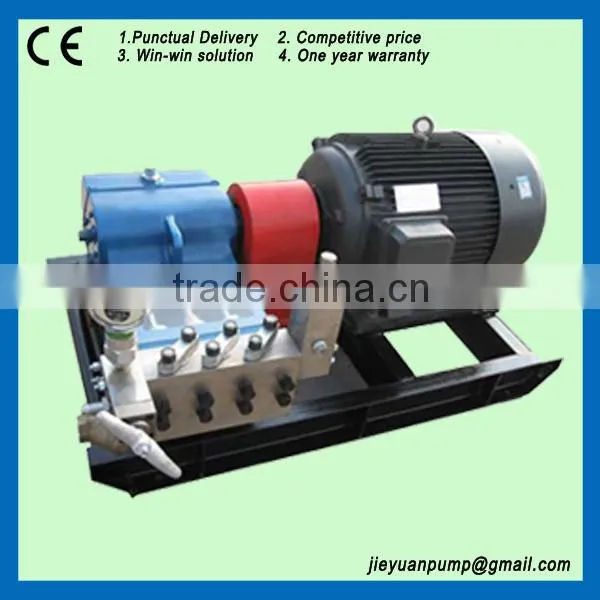

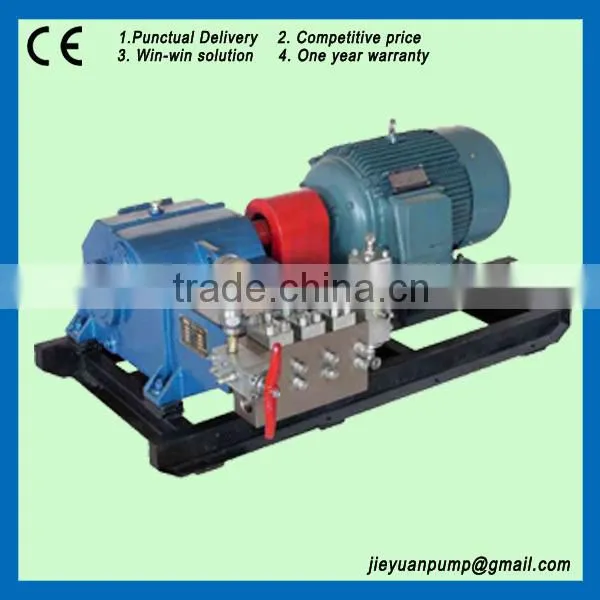

90~500bar electric motor drive pressure test pump high pressure pump
- 200 Set / Sets per Month
- qingdao tianjin shanghai
- Credit Card
- 20Mpa~50Mpa pressure test pump hydraulic pressure testing pump
- 2015 made in China diesel engine high pressure water jet pump cleaner
- water pressure testing equipment pipe hydraulic pressure testing pump
- electric motor drive high pressure hydraulic test pump
- professional high pressure hydro jet pump
- diesel engine high pressure pipe pressure testing pump water jet blaster pump
Product Details
Place of Origin: | Henan, China | Brand Name: | GY | Model Number: | GYB-2 |
Theory: | Reciprocating Pump | Structure: | Piston Pump | Usage: | Water |
Power: | Hydraulic | Standard or Nonstandard: | Standard | Fuel: | Gasoline |
Pressure: | High Pressure | Application: | Sewage |
Packaging Details
wooden package; pressure test pump
Product Description
water pressure testing equipment pipe hydraulic pressure test equipment
Specifications of the water pressure test pump hand operated hydraulic test pumps :
Max pressure: 500bar
Water flow: 40 lpm ~ 170 lpm
Engine: electric motor drive or diesel engine. Power: 30 kw~ 90 kw
Electric-powered: Typically used indoors because there are no fumes and they are quieter.
Diesel-powered: Self-contained and portable so they can be used in the field (no electric cords); all you need is water.
Main Features of the water pressure test pump electric pressure test pump China manufacture :
1.For the machine, pump is making with the tech. of Germany WOMA.
2.Small volume, bigger power, compact structure
3.Operates smoothly and suitable for long time continuous working.
Applications of the water pressure test pump electric pressure test pump China manufacture :
1.Pipe pressure test, hose pressure test, hydro pressure test, etc.
2.Shipyard rust removal, paint removal
3.Breweries yeast, sediments and fermentation residues on vats, pipe and facilities cleaning.
4.Aviation: expansion joints, grease, rubber and hydraulic fluid on runways cleaning.
5.hydropower station/ dam/dike concrete work treating.
6.Casting clean scale removal rust removal paint, removal sand.
7.Industrial pipe cleaning, such as starch factory, cement plant, etc…
Technical parameters:
speed of motor(r/min) | 1480 | Stroke(mm) | 95 | |||||||
Reduction ratio (i) | 3.65 | speed of pump (r/min) | 405 | |||||||
Power (KW) | 30 | 37 | 45 | 55 | 75 | 90 | Plunger diameter (mm) | |||
Rate Flow | Rate Pressure (Bar) | |||||||||
m3/h | L/min | |||||||||
2.4 | 40 | 370 | 460 |
|
|
|
| 22 | ||
3 | 50 | 300 | 360 | 450 |
|
|
| 25 | ||
3.42 | 57 | 260 | 320 | 400 | 500 |
|
| 26 | ||
3.9 | 65 | 230 | 280 | 350 | 450 |
|
| 28 | ||
4.5 | 75 | 200 | 250 | 300 | 380 | 500 |
| 30 | ||
5.1 | 85 | 170 | 220 | 260 | 340 | 450 | 500 | 32 | ||
6.12 | 102 | 150 | 180 | 220 | 280 | 360 | 430 | 35 | ||
8.1 | 135 | 110 | 140 | 170 | 210 | 280 | 330 | 40 | ||
10.2 | 170 | 90 | 110 | 140 | 170 | 240 | 280 | 45 |
This products could be made according to customer’s request.
If you would like more information, please do not hesitate to contact us . We will reply to you as soon as possible.
Contact information:
Name: Sally
Mobile: +86 18736029621
Company Profile
Our company is located in Henan Province, China. We are professional in the design, manufacture and production of high pressure cleaning machine, water blaster, high pressure pump, etc.
Our cleaning machine can be applied in both industrial and family cleaning, such as shipyard, power plant, starch factory, etc. which are used for pipe cleaning, pressure test, shipyard rust remove, paint remove, building surface cleaning, concrete cutting, etc.
Our company has years of research and experience in first-class design technology, excellent assembly line and good quality control system. Our products are welcomed by customers from all over the world.
We sincerely look forward to cooperating with new and old clients.
