Good DLG100 Dog Chews Pet Treats Pocessing Line

Specifications

Kibble Dog chews pet treats production line
Dental Dog treats chews making plant
Pet Chews Bone Treats Processing Line
CE



                                                                  DLG100 Dog chews pet treats processing line



Single Screw Pet Chews/Dog Treats Processing Machinery



1.Introduction of  Dog Chews Pet Treats Pocessing Line



(1)Pet treats processing line takes starch as raw materials with scientific configuration and was extruded from coextruder machine ,it can be made into many kind of shapes such as stick, bone ect.



(2)This kind of dog food not only provide protein fat vitamin nutrition for dogs, but also satisfy the dog nature hobby.



(3)It has following features: strengthen teeth, clean mouth and teeth, the products can be in many shapes, like twist, bi-color, core-filling and so on.



2.The technical parameters of  Pet treats and Dog Chews snacks food making Machine

Model   Parameter	Mixer	Screw Conveyor	Extruder	Cooling Conveyor		Model   Parameter	Cutter
Installed capacity	4KVA	1.1KVA	47KVA	0.37KVA		Installed capacity	0.75KVA
Power	3Kw	0.5Kw	26Kw	0.3Kw		Real Power	0.53Kw
Output	150kg/h	0-600kg/h	100-120kg/h	100-120kg/h		Length of Cutter	100-120kg/h
Dimension	0.9×0.5×1.1m	3.2×0.6×0.7m	3.2×0.9×1.4m	5.0×0.7×1.1m		Dimension	3-120mm





3.The equipment list of Dog Chews Pet Treats Pocessing Line

(1)Single color Dog chews machine

Mixer → Screw conveyer→Single-screw extruder → Cooling conveyor → Cutter machine

(2)Double color dog chews machine

Mixer *2→ Screw conveyer*2→Single-screw extruder*2 → Cooling conveyor → Cutter machine

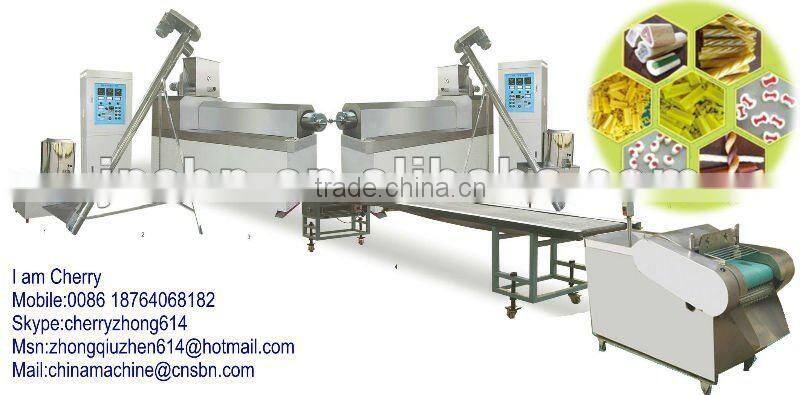

4.The pictures of dog chews treats food processing line
