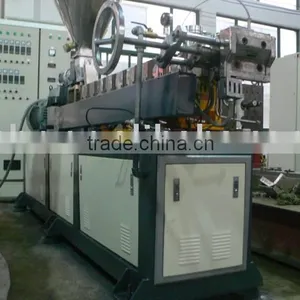

Lab-twin Screw Extruder

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Screw Design:

Double-screw

Place of Origin:

China

Model Number:

SHJ-35A

Jinan Saibainuo Technology Development Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Screw Design Double-screw

Place of Origin China

Model Number SHJ-35A

Specifications

Twin-screw stem length-diameter ratio is 40:1; Twin-screw stem motor power 22KW AC; Motor speed ( MAX): 1500RPM; SIEMENS Brand

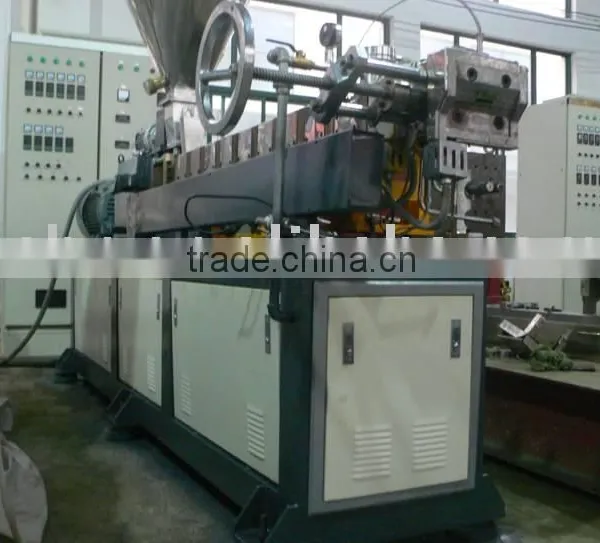

SHJ 35 twin-screw extruder

A. Gearbox

Reduction factor2.5:1
Output shaft rotation speedMAX600RPM
Input shaft rotation speedMAX1500RPM
The compact host machine features integrated speed reduction and torque transfer with a design of parallel three axles. SKF bearings are used in the reducer, torque transfer device and as the radial bearing in the output shaft.

B. Lubrication oil cooling system

Motor of oil pump 0.55KW
Lubrication oil model: Hai Brand 6402 made in Shanghai, middium load gear oil, model: 85W/90GL - 4.
Brand name: xi' an Oil Pump Plant
Condenser modelSL - 305
Lube oil pump modelCB B6

C. Motor of host machine

D. Screw stem

Screw stem diameterScrew stem diameterΦ35.5mm, max. diameter D=Φ35.5mm,min. diameter d=Φ23.5mm, D/d=1.51, center distance: A=30mm, torque: T=115N.M, torque coefficient: T/A³=4.2.
L/D =40:1
Screw stem with modular structure
The screw core shaft is made of 40CrNiMoA, and the screw thread components connect with the core shaft in an involute curve, which features high intensity, large load, and easy disassembly and assembly.
The screw components are made of high quality high-speed tool steel, W6Mo5Cr4V2, that receives heat treatment with vacuum hardening at high temperature.
Whole hardness: HRC62-64

E. Charging barrel

The barrel body is made of #45 steel, and the "∞" shape hole is lined with wearing proof alloy a-101Fe - Cr - Ni -B+Carbide, hardness: HRC60 - 64, barrel length: L = 150mm/section.
The first cylinder is used for feeding materials barrel, the 9th cylinder for vacuum barrel, the 10th cylinder for extrusion barrel and the other cylinders are of closed mouth type.
Soft water circulation system

The barrel uses soft water cooling.
The soft water tank separates with the body, which facilitates cleaning and service.
Electromagnetic valveCEME9313 imported from Italy.
Water pipe are copper pipes coated with chrome.
cooling method: water cooling
cooling pump0.55KW
water tank capacity 150L
