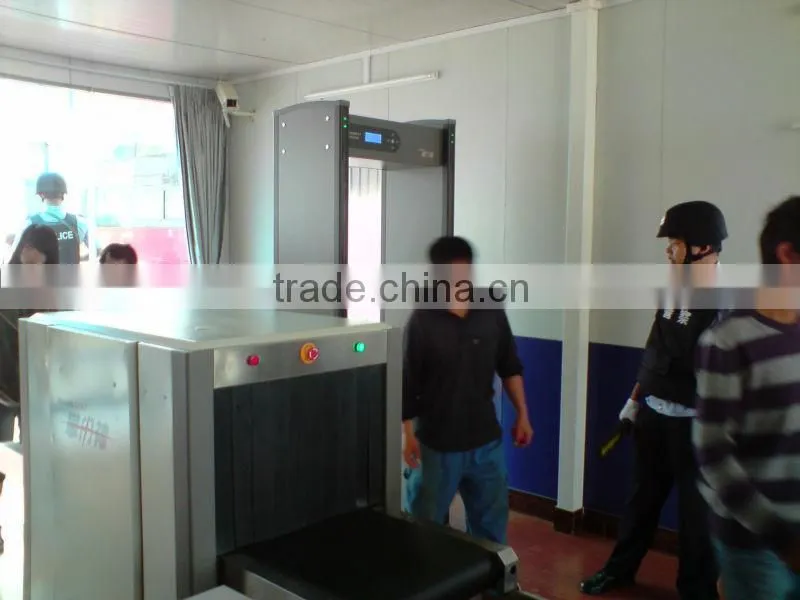

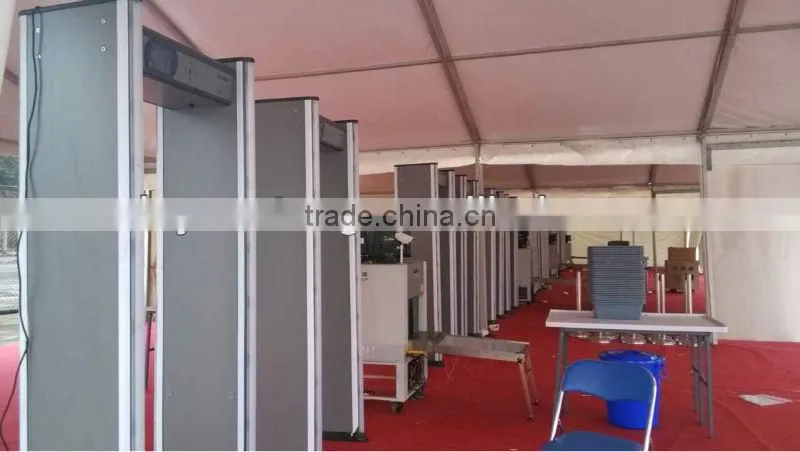

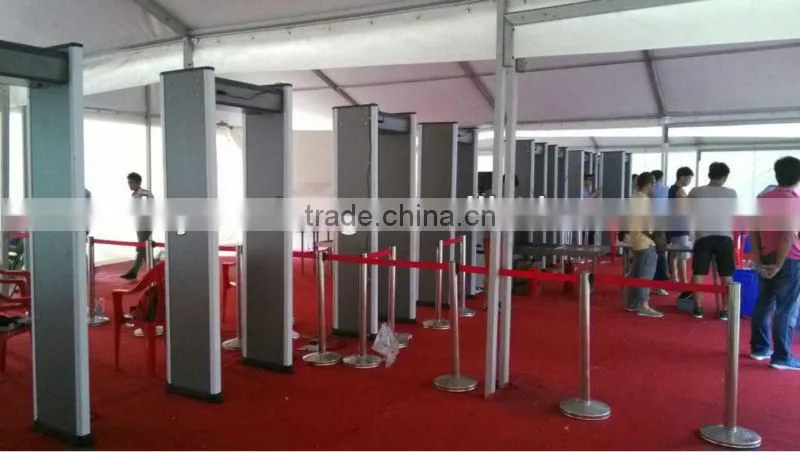

Security walk through metal detector gate for airport,hotel,bank,university,exhibition center
Technical parameter
1.Electric current: AC85V~264V/50-60HZ
2.Power: <20W, low consume, low radiation
3.Net weight: 70KG
4.Workplace environment: -20°C~+45°C
5.Standard: GB15210-2003, CE
6.Standard External size: 2225mm(H)X860mm(W)X560mm(D)
7.Standard Internal size: 2055mm(H)X700mm(W)X500mm(D)

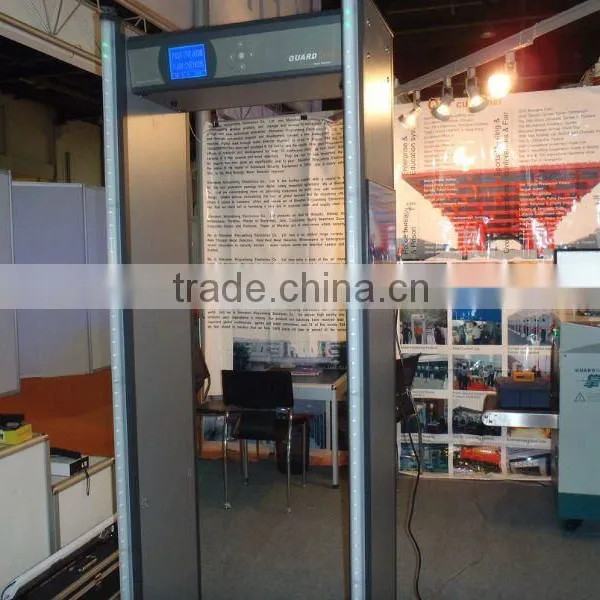

Picture of XYT2101LCD
Characteristic & Function:
1.LCD screen with Infrared remoter controller, both Chinese & English program, easy to operate.
2.Adopt advanced digital signal processing control replaced traditional analog signal control, better stability.
3.Program Self-diagnostic when power on, automatically checking left and right door panel, LED light and choose the best working frequency.
4.Detecting Zones: 6,8,12,16,18,24 detecting zones for option.
5.Sensitivity adjustable: Each zone has 255 degree sensitivity level, three patterns: High, middle, Low for different requirements. Preset the metal size, weight, volume, location to exclude the coin, key, belt.
6.Sound Alarm: 1-25s alarm time, 255 different sound volume for choose
7.LED light alarm: LED bar graph on left and right door frame, visible alarm simultaneously to ascertain the layout of metal articles
8.Password protection, only the authorized person can operate.
9.Anti-interference function, using advanced interactive transmitting and receiving to avoid interference, frequency range from 4K-8K to avoid frequency interference
10.6 preset programs for security application versatility
11.Automatically count passengers and alarm times
12.Microprocessor control on top unit, anti-interference and self-diagnose transmission channel to avoid internal and external interference.
13.Easy assembly: designed with only 2 pieces cables and 8 screws, Simply-to-follow instruction.
14.Harmless to human body: is harmless with heart peacemaker, pregnant women, magnetic floppy, recording tapes, etc.
15.For option : Battery backup, 2-8 hours for option
16.For option : Network support

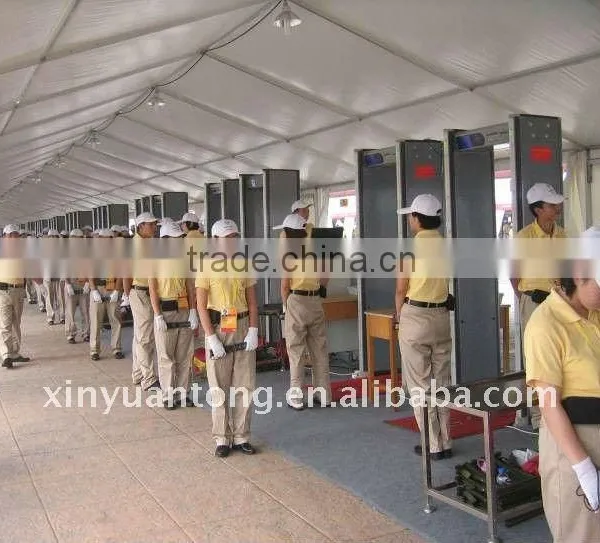

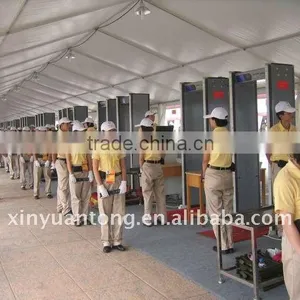

Application : Airport, Banks, Embassies, Entertainment environments, Gymnasiums, Exhibition Centers for luxurious appearance
Certification
OEM and ODM are available; small orders are acceptable. All items has one year warranty for free spare parts.
More details, please contact me via xyt007atxinyuantongdotcom or skype name: merrygao8888.
