Home > Security & Protection > Alarm & Security Systems > Alarm > Multizone Arch Walk Through Metal Detector.security Body Scanner Metal Detector XYT2101S
Multizone Arch Walk Through Metal Detector.security Body Scanner Metal Detector XYT2101S
Negotiable
MOQ: 5 Units (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
Guard Spirit
Model Number:
XYT2101S
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Multizone Metal Detector.arch Walk Through Metal Detector.security Body Scanner Metal DetectorNegotiableMOQ: 5 Units -
Airport Scanner Security Archway Walkthrough Metal DetectorNegotiableMOQ: 3 Units
-
Security Door Walk Through Metal DetectorNegotiableMOQ: 5 Units
-
6 Detecting Zones Walk Thru Metal Detector XYT2101A2NegotiableMOQ: 3 Units
-
Popular Door Frame Metal Detector Gate XYT2101-IINegotiableMOQ: 1 Unit
Place of Origin
China
Brand Name
Guard Spirit
Model Number
XYT2101S
Usage
Other, security guard checking
multizone arch walk through metal detector.security body scanner metal detector XYT2101S

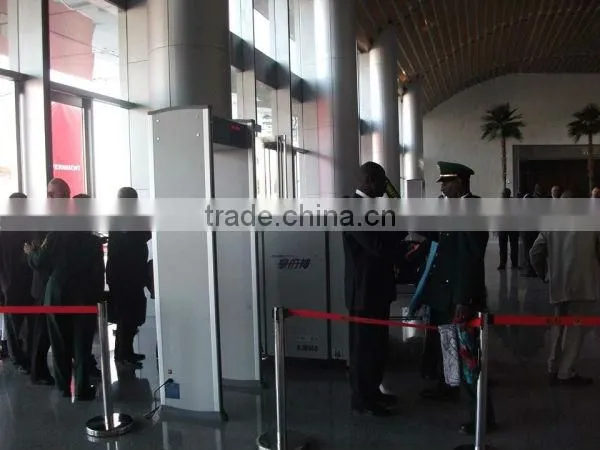

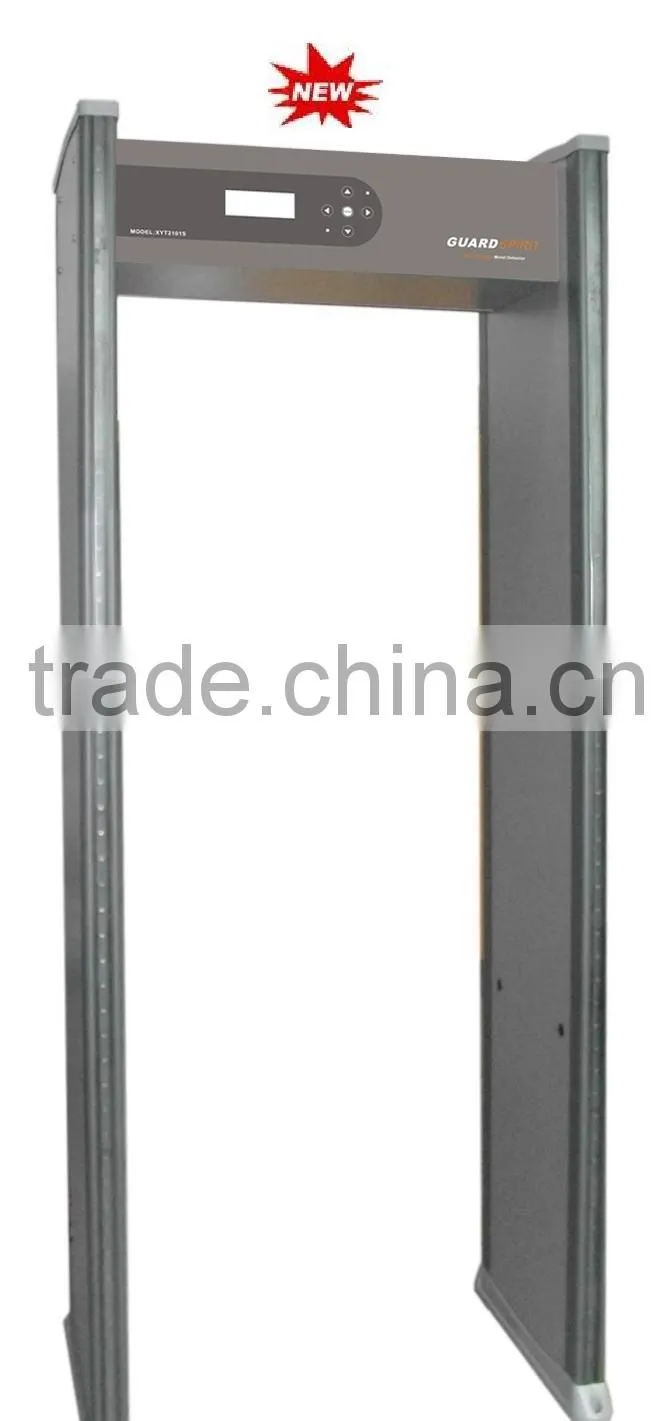

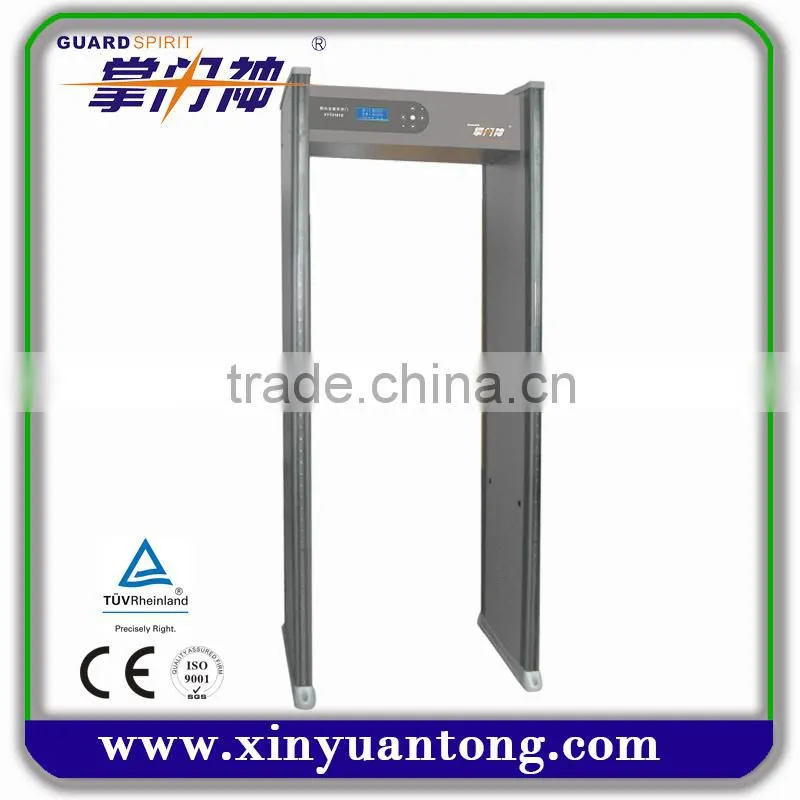

(1)Picture of walk through metal detector
(2). Specifications
Technical parameter
Electric current: AC85V~264V/50-60HZ
Power: <20W, low consume, low radiation
Net weight: 70KG
Workplace environment: -20°C~+45°C
Standard: GB15210-2003, CE
Standard External size: 2230mm(H)X835mm(W)X580mm(D)
Standard Internal size: 1990mm(H)X700mm(W)X500mm(D)
Characteristic & Function
- LCD screen with Infrared remoter controller,
- both Chinese & English program, easy to operate.
- Adopt advanced digital signal processing control replaced
- traditional analog signal control, better stability.
- Program Self-diagnostic when power on, automatically checking left and right door panel, LED light and choose the best working frequency.
- Detecting Zones: 16 detecting zones. Separate left and right side detection. Simultaneous alarm from multi- zones;
- Sensitivity adjustable: Each zone has 255 degree sensitivity level, three patterns: High, middle, Low for different requirements. Preset the metal size, weight, volume, location to exclude the coin, key, belt.
- Sound Alarm: 1-25s alarm time, 255 different sound volume for choose
- LED light alarm: LED bar graph on left and right door frame, visible alarm simultaneously to ascertain the layout of metal articles
- Password protection, only the authorized person can operate.
- Anti-interference function, using advanced interactive transmitting and receiving to avoid interference, frequency range from 4K-8K to avoid frequency interference
- 6 preset programs for security application versatility
- Automatically count passengers and alarm times
- Microprocessor control on top unit, anti-interference and self-diagnose transmission channel to avoid internal and external interference.
- Easy assembly: designed with only 2 pieces cables and 8 screws, Simply-to-follow instruction.
- Harmless to human body: is harmless with heart peacemaker, pregnant women, magnetic floppy, recording tapes, etc.
- For option : Battery backup, 4 hours
- For option : Network support
Application
The XYT2101S is designed to Airport, Banks, Embassies, Entertainment environments, factories, stores,
Gymnasiums, Exhibition Centers for luxurious appearance
Certificate
Project & Exhibition
2012 18TH African union summit meeting
2011 Universiade Shenzhen Metro
2010 Shanghai World Expo
