Home > Instruments & Meters > Meter for Liquid & Gas > Thermometer & Hygrometer > Hot Sale Thermostat Guard Dual Thermostat ZR 011
US$ 6 - 7
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Winston/OEM, Winston/OEM
Model Number:
ZR 011 thermostat guard, ZR 011 thermostat guard
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo Shanghai or others
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hot Sale Thermostat Wpf Dual Thermostat ZR 011US$ 6 - 7MOQ: 1 Piece -
ZR 011 Dual Plastic Actuator Ajustable Temperature Controller Capillary Thermostat With CEUS$ 6 - 7MOQ: 1 Piece
-
RTC70 Floor Heating Mechanical Digital Electronic Room Temperature Controller Thermostat With CE Quality ChoiceUS$ 6 - 8MOQ: 1 Piece
-
EFR 012 LED Display Electronic Hygrostat Humidity Adjustable Electronic Thermostat With CEUS$ 4.3 - 6.5MOQ: 10 Pieces
-
ETF 012 Environmental Electronic Programmable Temperature Humidity Controller Thermostat With CEUS$ 4.3 - 6.5MOQ: 100 Pieces
Place of Origin
Zhejiang, China
Brand Name
Winston/OEM, Winston/OEM
Model Number
ZR 011 thermostat guard, ZR 011 thermostat guard
Usage
Other, Industrial, Industrial
Theory
Other, Temperature Controller, Temperature Controller
Accuracy
100%, 100%
Temperature Range
0-60degree
250VAC 10A thermostat guard
Product Description
NC / NO or NO / NO in one unit
Separate adjustable temperatures
Color coded temperature dials
DIN rail mountable

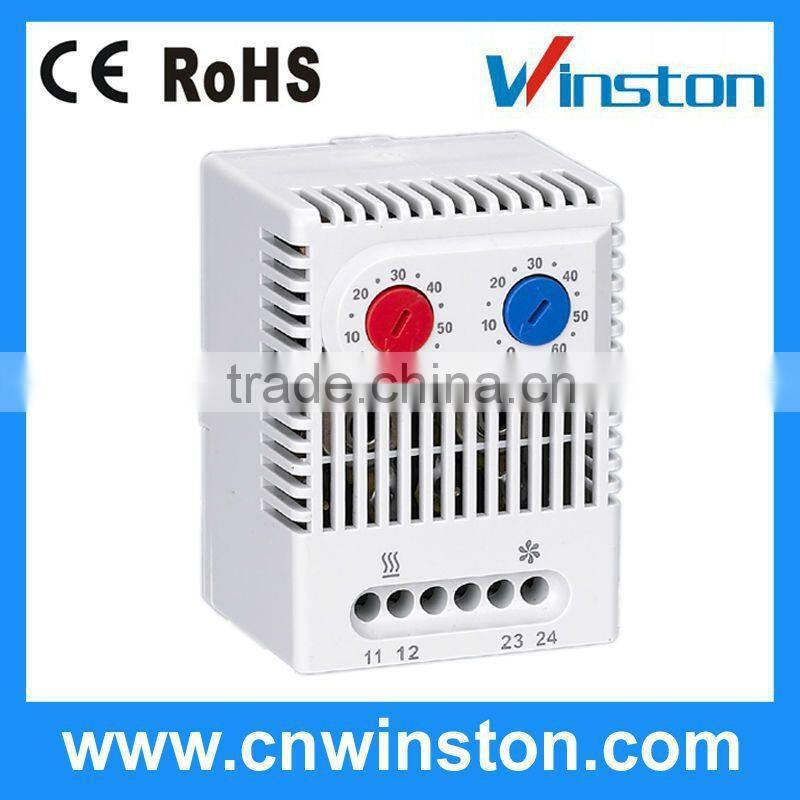

The ZR 011 houses two separate thermostats, allowing the independent control of heating and
cooling or other equipment.
Thermostat NC (normally closed):
Thermostat opens at temperature rise - for regulating heaters or for switching signal devices.
Comes with red temperature dial.
Thermostat NO (normally open):
Thermostat closes at temperature rise - for regulating filter fans and heat exchangers or for
switching signal devices. Comes with blue temperature dial.
thermostat guard
Technic data
| Switch temperature difference | 7K (± 4K tolerance) |
| Sensor element | thermostatic bimetal |
| Contact type | snap-action contact |
| Service life | > 100 000 cycles |
| Max. switching capacity | 250VAC, 10 (2) A |
| 120VAC, 15 (2) A | |
| DC 30W | |
| Connection | 4-pole terminal, clamping torque 0.5Nm max.: rigid wire 2.5mm², stranded wire (with wire end ferrule) 1.5mm² |
| Mounting | clip for 35mm DIN rail, EN60715 |
| Casing | plastic according to UL94 V-0. light grey |
| Dimensions | 67 x 50 x 46mm |
| Weight | approx. 90g |
| Fitting position | variable |
| Operating/Storage temperature | -45 to +80°C (-49 to +176°F) |
| Operating / Storage humidity | max. 90 % RH (non-condensing) |
| Protection type | IP20 |
| Approvals | UL File No. E164102 |
| Art. No. | Setting range | Setting range | Setting range | Setting range |
| 01172.0-00 | contact breaker, normally closed | 0 to +60°C | contact maker, normally open | 0 to +60°C |

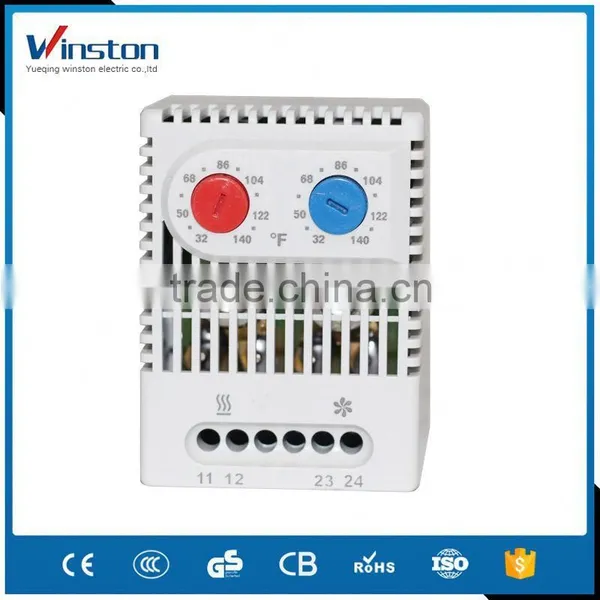

| 01172.0-01 | contact breaker, normally closed | +32 to +140°F | contact maker, normally open | +32 to +140°F |
| 01175.0-00 | contact breaker, normally closed | -10 to +50°C | contact maker, normally open | +20 to +80°C |
| 01175.0-01 | contact breaker, normally closed | +14 to +122°F | contact maker, normally open | +68 to +176 °F |
| 01176.0-00* | contact maker, normally open | 0 to +60°C | contact maker, normally open | 0 to +60°C |
| 01176.0-01* | contact maker, normally open | +32 to +140°F | contact maker, normally open | +32 to +140°F |
| *For regulating heat exchangers and fans (e.g LE 019) and as an alarm contact for monitoring the interior temperature of electronic enclosures. |

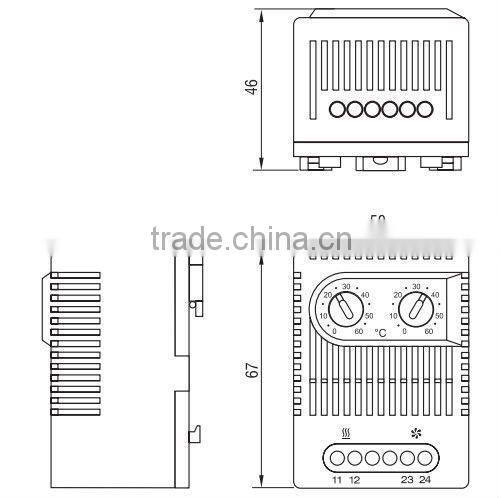

Size

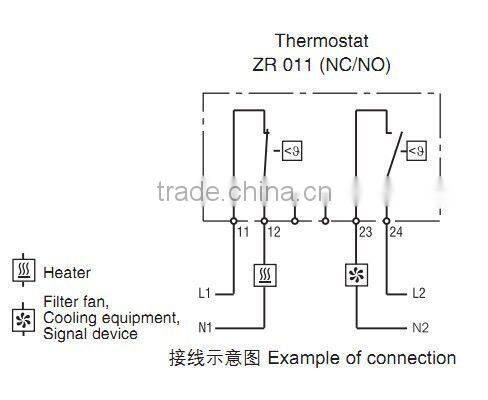

4.Example of connection:
