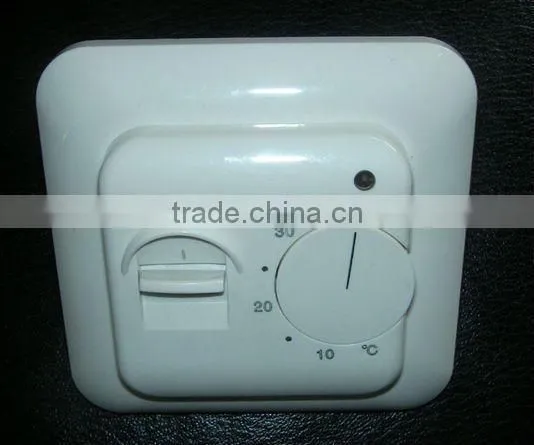

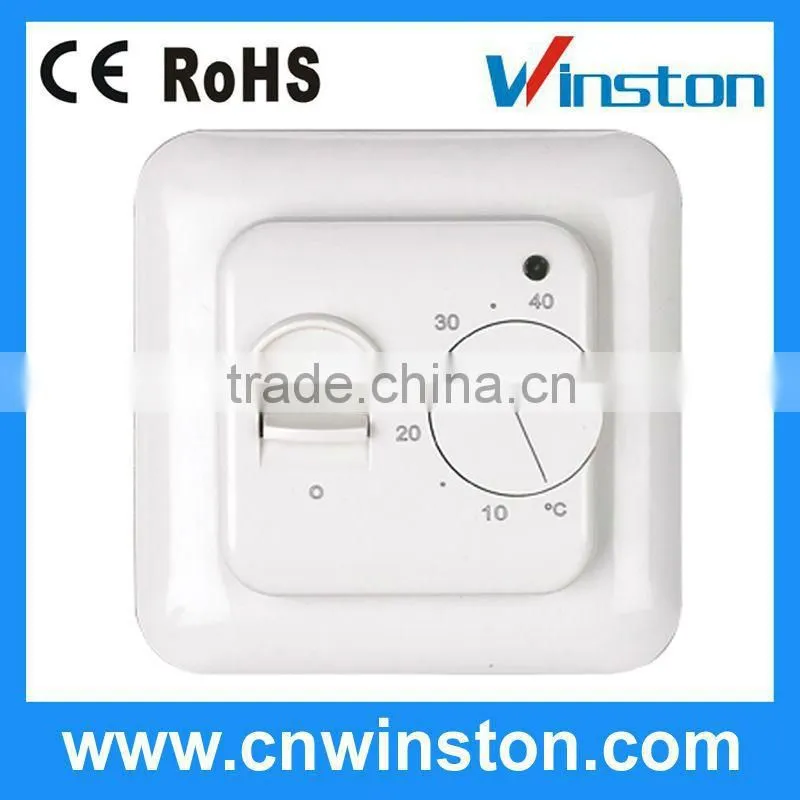

TC70 Floor Heating Mechanical Room Thermostat
The RTC70.XX is used for 2-position control with on/off output for the control the temperature by means of an NTC sensor placed externally or internally in the thermostat
The thermostat acquires the room temperature with its built-in sensor or floor sensor, and the heating contact will close when the room temperature falls below the selected setpoint.
For the control of warm-water (floor) heating systems and direct electric heating systems used in Commercial buildings, Residential buildings, Light industrial buildings…
Features:
LED indicator is light when heating is on
With manual switch and knob for easy operation
On/off control output for heating device
Setback function when connecting with a programmable timer (RTC70.33&RTC70.36)
Temperature limitation function for protecting the floor (RTC70.33&RTC70.36)
Voltage |
AC230V |
Power consumption |
5W |
Setting range |
4°C~45°C |
Switching differential |
±0.5k |
Ambient temperature |
-5°C~50°C |
Protective housing |
IP20 |
housing material |
Self-exting uishing PC |
Floor sensor |
Rubber-thermoplastic NTC sensor |
The external sensor |
Cable length is 3m |
Selection table:
Model No. |
Fan control | Sensor | Temperature limitation function | Setback function | Loading (PCS/Carton) |
| RTC70.13 | 3A | Built-in sensor | No | No | 64 |
| RTC70.16 | 16A | Built-in sensor | No | No | 64 |
| RTC70.26 | 16A | Floor sensor | No | No | 64 |
| RTC70.33 | 3A | Built-in sensor | NO | NO | 64 |
