Home > Instruments & Meters > Meter for Liquid & Gas > Thermometer & Hygrometer > EFR 012 Electronic Hygrostat

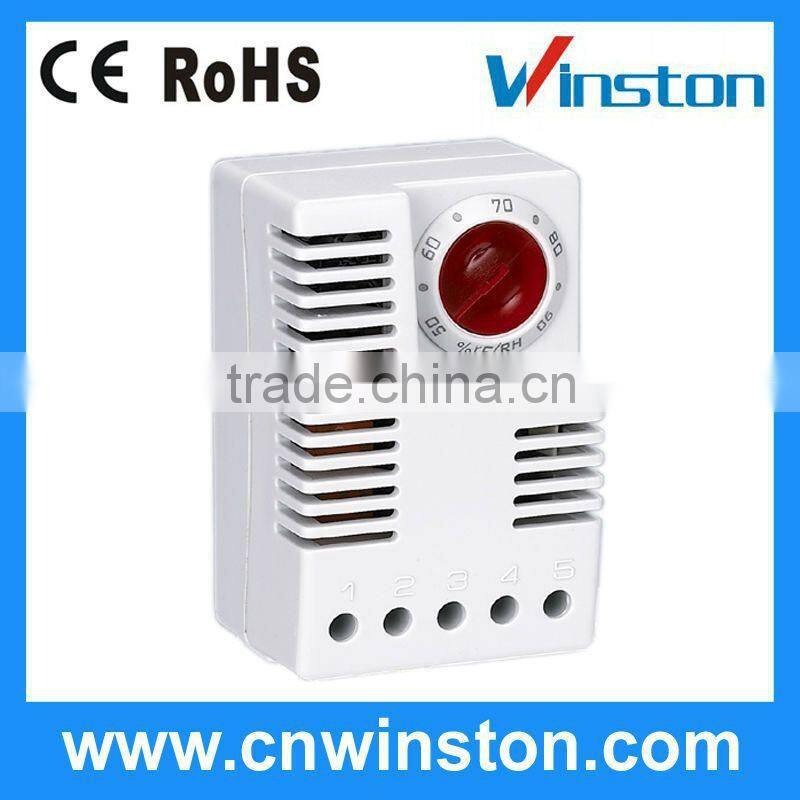

EFR 012 Electronic Hygrostat

Name: EFR 012 Electronic Hygrostat
Brand: Winston, Winston/OEM
SKU: 110980383
Availability: InStock

Yueqing Winston Electric Co., Ltd.

EFR 012 Electronic Hygrostat thumbnail-1

EFR 012 Electronic Hygrostat thumbnail-2

EFR 012 Electronic Hygrostat thumbnail-3

US$ 10 - 20 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

Winston, Winston/OEM

Model Number:

EFR 012, EFR 012 electronic hygrostat

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name Winston, Winston/OEM

Model Number EFR 012, EFR 012 electronic hygrostat

Usage Other, Industrial, Industrial

Theory Other, Temperature Controller, electronic hygrostat

Accuracy 100%, 100%

Temperature Range 0-60degrees, 0-60degrees

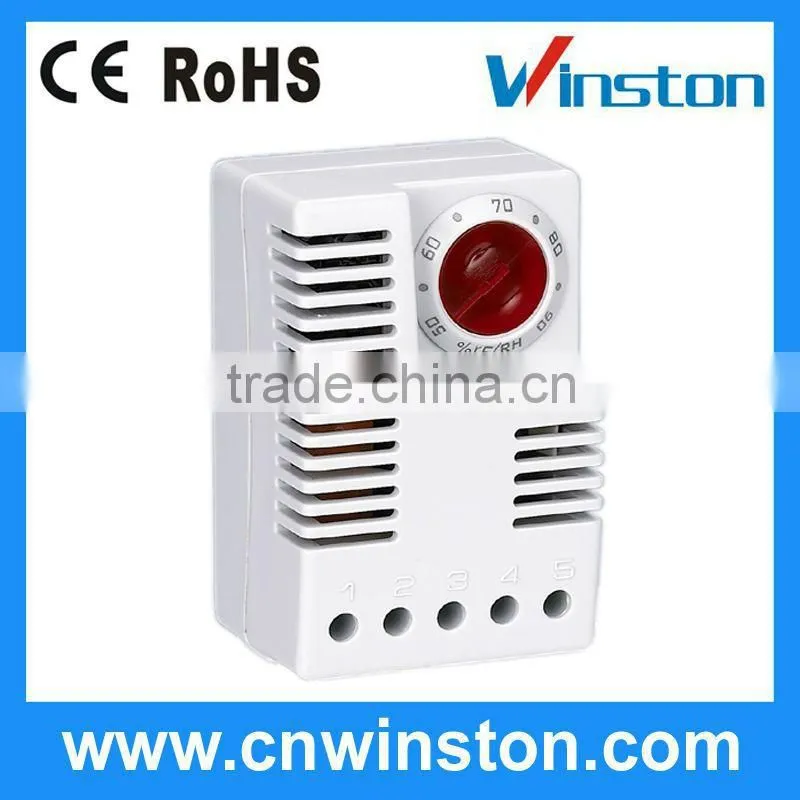

EFR 012 electronic hygrostat

Specifications

EFR 012 electronic hygrostat
Compact design
High switching capacity
Optical function display (LED)
DIN rail mountable

EFR 012 electronic hygrostat

Product Description

Adjustable & pre-set relative humidity setpoints
Compact design
High switching capacity
Optical function display (LED)
DIN rail mountable

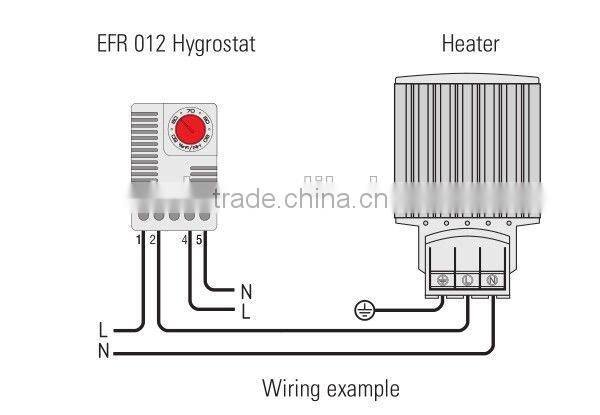

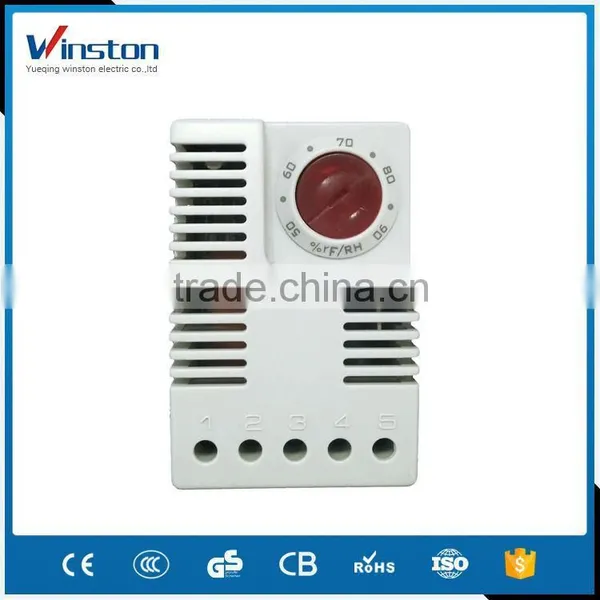

The EFR 012 electronic hygrostat senses the relative humidity in an enclosure and
turns on a heater at the set point, helping prevent the formation of condensation in the
enclosure. The integrated LED is lit when the connected device is in operation.

Technic data

Switch difference	5% RH(±1% RH tolerance)at 25°C,77F(50%RH)
Reaction time	approx.5sec

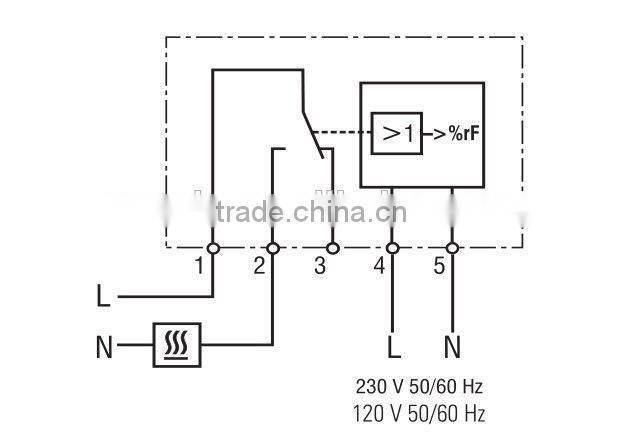

Contact type	change-over contact(relay)
service life	>50000cycles
max switching capacity(relay output)	240VAC 8(1.6)A 120VAC 8(1.6)A 24VDC 4A
EMC	acc.to en55014-1-2 EN61000-3-2 EN61000-3-3
optical indicator	LED
connection	5-pole terminal clamping torque 0.5Nm max tigid wire 2.5mm2 standed wire(with wire end ferrule)1.5mm2
mounting	clip for 35mm DIN rail EN50022
casing	plastic according to UL94-V-0 light grey

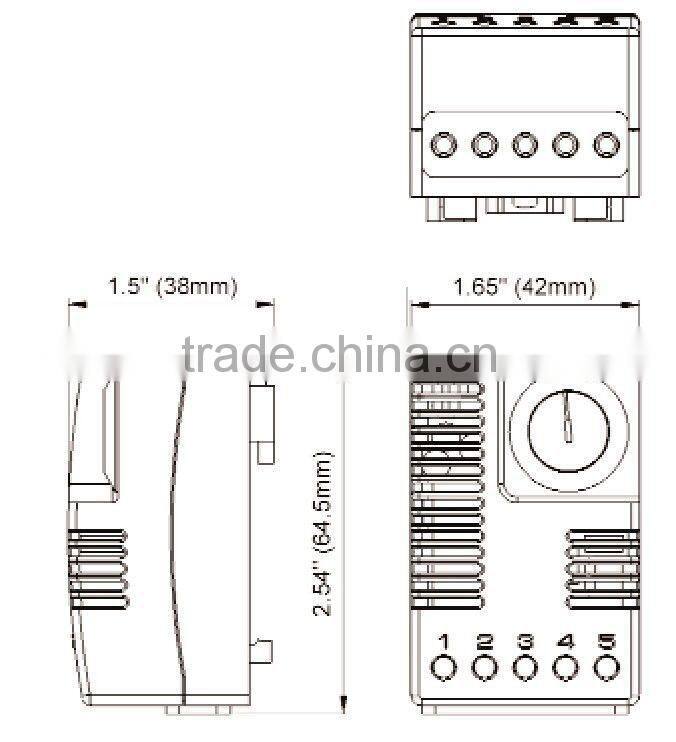

Dimension	64.5x42x38mm
Weight	approx 70g
operating/storage temprature	0to+60°C(+32 to +140F)/-20TO +70°C(-4TO +158F)
fitting position	vertical
max strorage humidity	90% RH(WITHOUT condensation)
Protectiion type	IP20

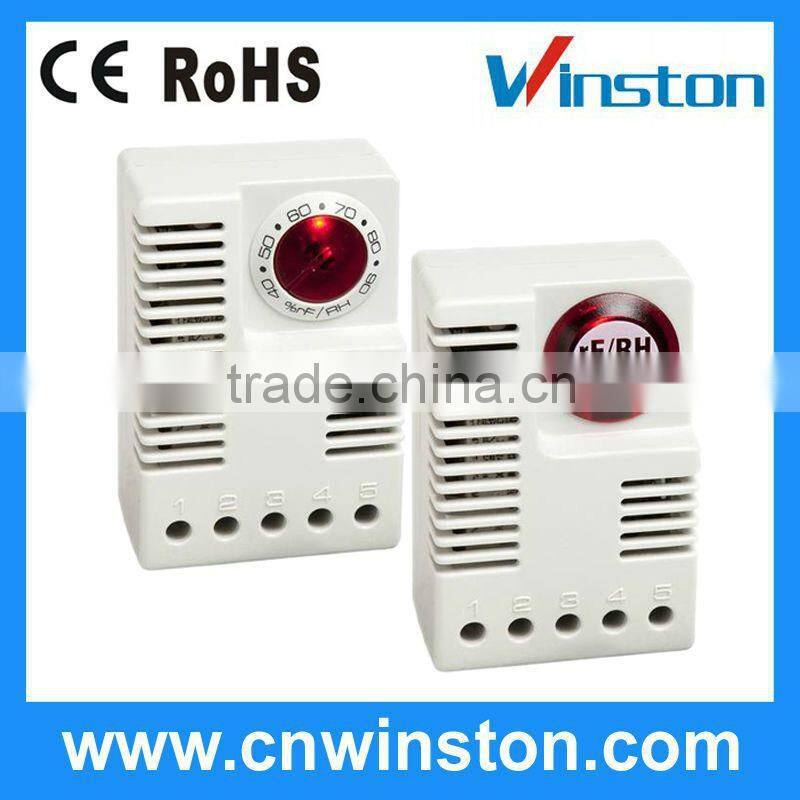

Art NO.	Operating voltage	setting range
01245.0-00	230VAC,50/60HZ	40 TO 90%RH
01246.0-00	230VAC,50/60HZ	65% RH pre-set
01245.9-00	120VAC,50/60HZ	40 TO 90%RH
01246.9-00	120VAC,50/60HZ	65% RH pre-set
