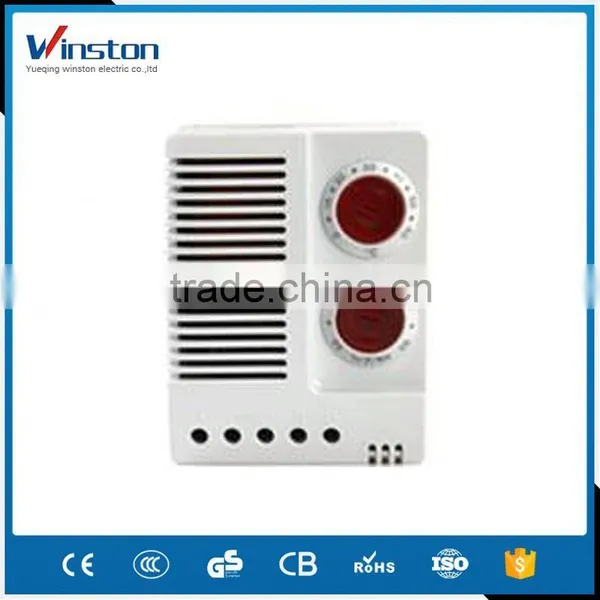

DC24V 4A Electronic Hygrostat humidity thermostat ETF 012 LED humidity adjustable hygrostat thermostat
Where is our Thermostat use?
If we want indoor to keep the temperature more or less constant, we have to keep switching our heaters on and off—or, alternatively, rely on clever gadgets called thermostats to do the job for us.
What is the Features of the Thermostat?
Compact design
Wide adjustment range
Color coded temperature dials
DIN rail mountable
What is the Specifications about our Thermostat?
| Switch temperature difference | 7K (± 4K tolerance) |
| Sensor element | thermostatic bimetal |
| Contact type | snap-action contact |
| Service life | > 100,000 cycles |
| Max. Switching capacity | 250VAC, 10 (2) A |
| 120VAC, 15 (2) A | |
| DC 30W | |
| Connection | 2-pole terminal, clamping torque 0.5Nm max.: rigid wire 2.5mm⊃2; stranded wire (with wire end ferrule) 1.5mm⊃2; |
| Mounting | clip for 35mm DIN rail, EN60715 (or for exit filter EF 118 Series) |
| Casing | plastic according to UL94 V-0, light grey |
| Dimensions | 60 x 33 x 43mm |
| Weight | approx. 40g |
| Fitting position | variable |
| Operating / Storage temperature | -45 to +80°C (-49 to +176°F) |
| Operating / Storage humidity | max. 90 % RH (non-condensing) |
| Protection type | IP20 |
| Setting range | Art. No. Contact Breaker (NC) | Art. No. Contact Maker (NO) | Approvals |
| 0 to +60°C | 01140.0-00 | 01141.0-00 | |
| -10 to +50°C | 01142.0-00 | 01143.0-00 | |
| +20 to +80°C | 01159.0-00 | 01158.0-00 | |
| +32 to +140°F | 01140.9-00 | 01141.9-00 | |
| +14 to +122°F | 01142.9-00 | 01143.9-00 | |
| 0 to +60°C | 01146.9-00 | 01147.9-00 |
What is the Overall dimension of our Thermostat?
How to connect our thermostat?
What is the details of our thermostat?
What is the packing for our Thermostat?
What is the delivery way?
(1)If ship by sea and Air,you can get Bill of Loading,CO,Commerical invoice,Packing list from us after ship.
(2)If ship by express company,you will get a Tracking No. from us after ship.
What the Certifications do we have obtained?
What is the payment?
What's the Refund & Replacement?
1. 90-day-warranty.
If there is any quality problem (defective / don't work) of the goods, it could be returned within the warranty days. (Please notify us as soon as possible)
2. Any items must be returned in their original condition to qualify for a refund or replacement. (Any used items cannot be refunded or replaced).
Company view
How do our thermostat switches on and off?
1. An outer dial enables you to set the temperature at which the thermostat switches on and off.
2. The dial is connected through a circuit to the temperature sensor (a bimetal strip, shown here colored red and blue), which switches an electrical circuit on and off by bending more or less.
3. The bimetal ("two metal") strip is made of two separate metal strips fastened together: a piece of brass (blue) bolted to a piece of iron (red).
4. Iron expands less than brass as it gets hotter, so the bimetal strip curves inward as the temperature rises.
5. The bimetal strip forms part of an electrical circuit (gray path). When the strip is cool, it's straight, so it acts as a bridge through which electricity can flow. The circuit is on and so is the heating. When the strip is hotter, it bends and breaks the circuit, so no electricity can flow. Now the circuit is off.
What's the model meaning of our thermostat ?
KTO 011 : Thermostat (normally closed), contact breaker for regulating heaters
KTS 011: Thermostat (normally open), contact make for regulating of filter fans and heat exchangers or for switching signal devised when temperature limit has been exceeded
What is the MOQ of our our Thermostat?
MOQ: We support sample order.(1~5PCS)
More than 500PCS,can pring Logo on the products.
What is the guarantee Period for our our Thermostat?
1-Year afer sold
