Home > Products > Thermostat > Mechanical Hygrostat MFR 012 digital thermostat with external sensor

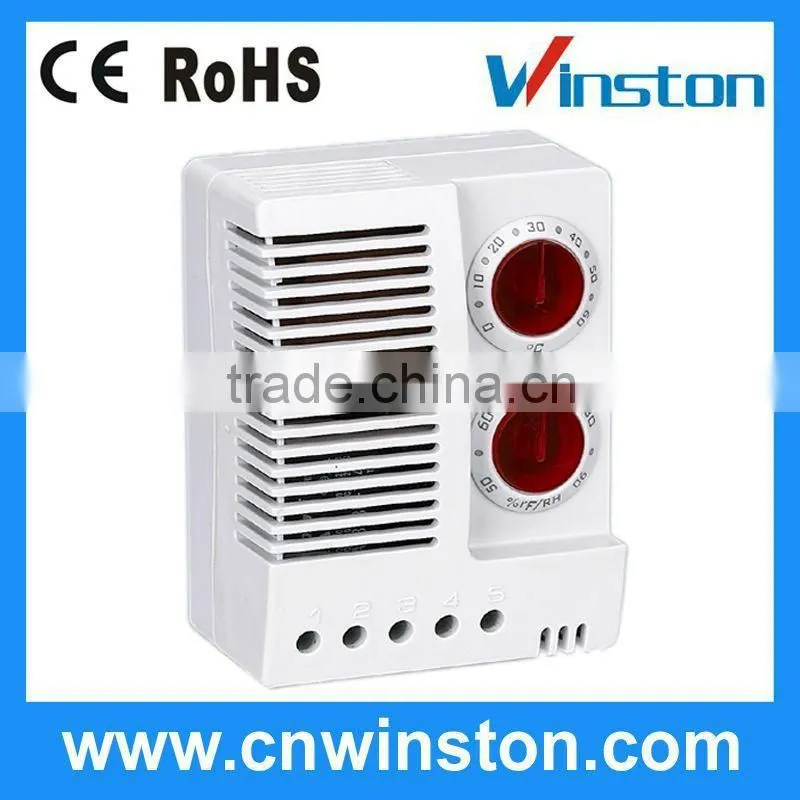

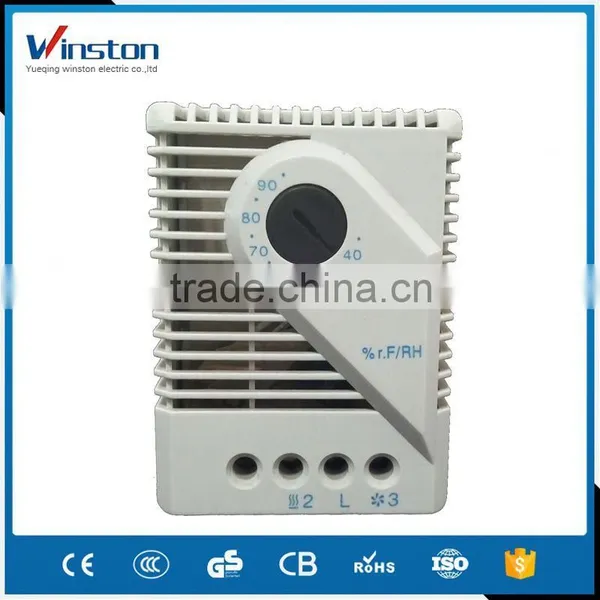

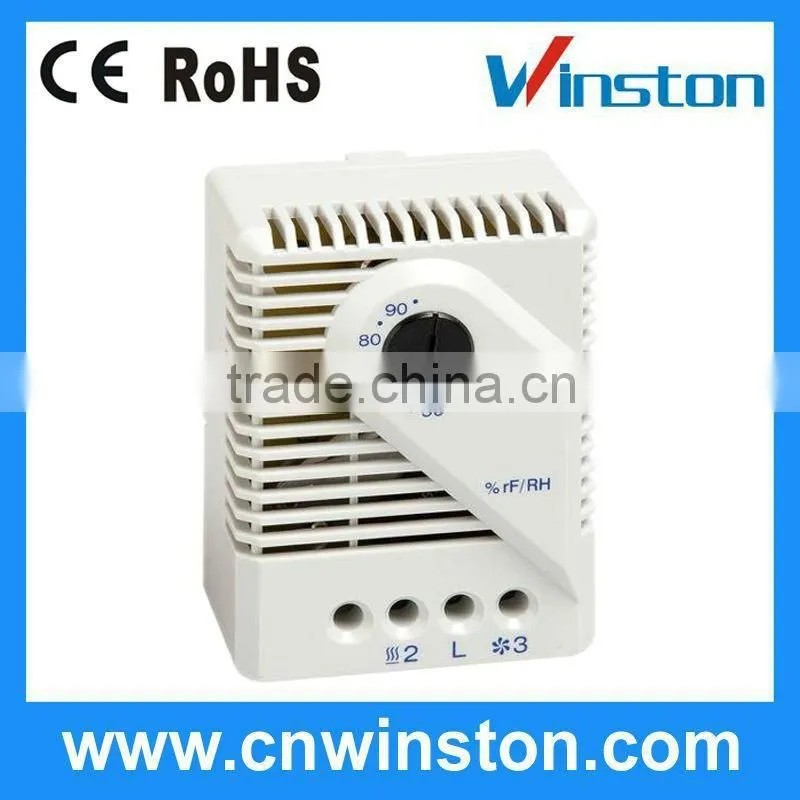

Mechanical Hygrostat MFR 012 digital thermostat with external sensor
- 50000 Piece / Pieces per Month
- Ningbo Shanghai
- T/T Credit Card PayPal
Product Details
| Place of Origin: | Zhejiang, China | Brand Name: | Winston digital thermostat with external sensor | Model Number: | MFR 012 digital thermostat with external sensor |
| Usage: | Other, Industrial, Industrial | Theory: | Other, Temperature Controller, digital thermostat with external sensor | Accuracy: | 100% |
| Temperature Range: | 0 to +60°C (+32 to +140°F) / -40 to +60°C (-40 to +140°F) |
Product Description
MFR 012 digital thermostat with external sensor
- Efficient condensation control
- Adjustable relative humidity range
- High switching capacity
- DIN rail mountable
The MFR 012 electromechanical hygrostat is designed to control the relative humidity inside
enclosures. When connected to an enclosure heater (dehumidifier), it will energize the heater
at the humidity set point in order to raise the dew point. This helps prevent damage and mal-
function of electronic components caused by condensation and corrosion. 1)
The MFR 012 can also be used to control cooling fans, warning lights or other devices.
| Switch difference* | 4% RH (±3% tolerance) |
| Permissible air velocity | 15m/sec |
| Contact type | change-over contact |
| Service life | > 50,000 cycles |
| Min. switching capacity | 20V AC/DC 100 mA |
| Max. switching capacity | 25VAC, 5A |
| DC 20W | |
| Connection | 3-pole terminal for 2.5mm², clamping torque 0.5Nm max.: rigid wire 2.5mm², stranded wire (with wire end ferrule) 1.5mm² |
| Mounting | clip for 35mm DIN rail, EN60715 |
| Casing | plastic according to UL94 V-0, light grey |

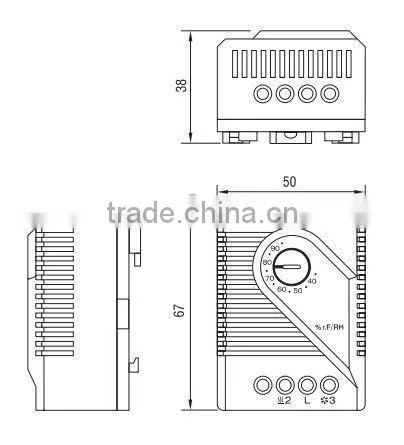

| Dimensions | 67 x 50 x 38mm |
| Weight | approx. 60g |
| Fitting position | variable |
| Operarting/Storage temperature | 0 to +60°C (+32 to +140°F) / -40 to +60°C (-40 to +140°F) |
| Operating / Storage humidity | max. 90 % RH (non-condensing) |
| Protection type | IP20 |
| Approvals | UL File No. E164102 |
| *at 50% RH |
| Art. No. | Setting range |
| 01220.0-00 | 35 to 95% RH |

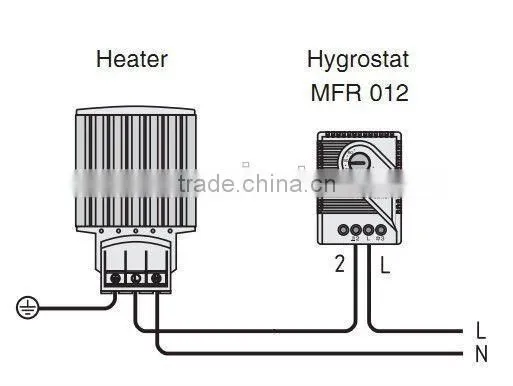

4.Example of connection:
