ZR 011 DUAL BIMETAL THERMOSTAT with CE
- 50000 Piece / Pieces per Month
- Ningbo Shanghai or others
- T/T Credit Card PayPal
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | Winston/OEM, Winston/OEM | Model Number: | ZR 011 dual bimetal thermostat, ZR 011 Dual Thermostat |
Usage: | Other, Industrial, Industrial | Theory: | Other, Temperature Controller, Temperature Controller | Accuracy: | 100%, 100% |
Temperature Range: | 0-60degree |
Product Description

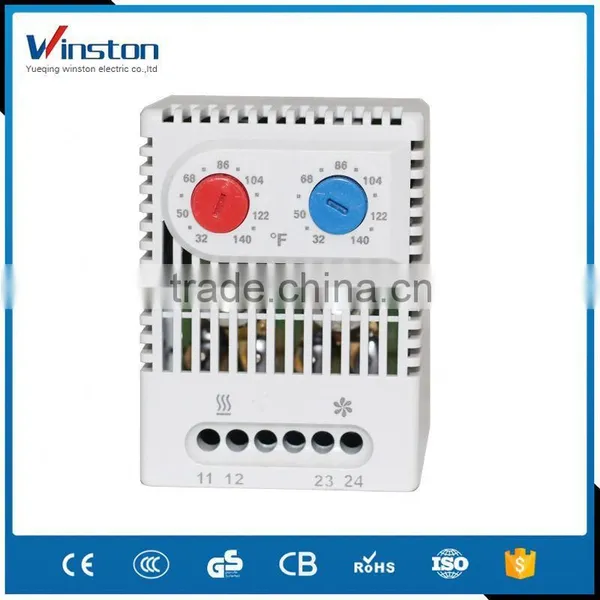

ZR 011 250VAC 10A dual bimetal thermostat
NC / NO or NO / NO in one unit
Separate adjustable temperatures
Color coded temperature dials
DIN rail mountable
The ZR 011 houses two separate thermostats, allowing the independent control of heating and
cooling or other equipment.
Thermostat NC (normally closed):
Thermostat opens at temperature rise - for regulating heaters or for switching signal devices.
Comes with red temperature dial.
Thermostat NO (normally open):
Thermostat closes at temperature rise - for regulating filter fans and heat exchangers or for
switching signal devices. Comes with blue temperature dial.
Switch temperature difference | 7K (± 4K tolerance) |
Sensor element | thermostatic bimetal |
Contact type | snap-action contact |
Service life | > 100 000 cycles |
Max. switching capacity | 250VAC, 10 (2) A |
120VAC, 15 (2) A | |
DC 30W | |
Connection | 4-pole terminal, clamping torque 0.5Nm max.: rigid wire 2.5mm², stranded wire (with wire end ferrule) 1.5mm² |
Mounting | clip for 35mm DIN rail, EN60715 |
Casing | plastic according to UL94 V-0. light grey |
Dimensions | 67 x 50 x 46mm |
Weight | approx. 90g |
Fitting position | variable |
Operating/Storage temperature | -45 to +80°C (-49 to +176°F) |
Operating / Storage humidity | max. 90 % RH (non-condensing) |
Protection type | IP20 |
Approvals | UL File No. E164102 |
Art. No. | Setting range | Setting range | Setting range | Setting range |
01172.0-00 | contact breaker, normally closed | 0 to +60°C | contact maker, normally open | 0 to +60°C |
01172.0-01 | contact breaker, normally closed | +32 to +140°F | contact maker, normally open | +32 to +140°F |
01175.0-00 | contact breaker, normally closed | -10 to +50°C | contact maker, normally open | +20 to +80°C |
01175.0-01 | contact breaker, normally closed | +14 to +122°F | contact maker, normally open | +68 to +176 °F |
01176.0-00* | contact maker, normally open | 0 to +60°C | contact maker, normally open | 0 to +60°C |
01176.0-01* | contact maker, normally open | +32 to +140°F | contact maker, normally open | +32 to +140°F |
*For regulating heat exchangers and fans (e.g LE 019) and as an alarm contact for monitoring the interior temperature of electronic enclosures. |
4.Example of connection:
What is the packing for our product?
What is the delivery way?
(1)If ship by sea and Air,you can get Bill of Loading,CO,Commerical invoice,Packing list from us after ship.
(2)If ship by express company,you will get a Tracking No. from us after ship.
What the Certifications do we have obtained?
What is the payment?
What's the Refund & Replacement?
1. 90-day-warranty.
If there is any quality problem (defective / don't work) of the goods, it could be returned within the warranty days. (Please notify us as soon as possible)
2. Any items must be returned in their original condition to qualify for a refund or replacement. (Any used items cannot be refunded or replaced).
Company view
Our team
What is the MOQ of our Thermostat?
MOQ: We support sample order.(1~5PCS)
More than 500PCS,can pring Logo on the products.
How to Visit and contact us?
Firstly, you are highly welcomed to visit our factory, we can provide you an invitation letter from Chinese Embassy for you if needed.
Besides, we are more pleased to help you to book a flight or hotel to save your time.
