1. sensor as heat sensitivity set to feedback of heat
2. Contact point scheme: single switchover contact point as instant switch component
3. Allowed load of contact point

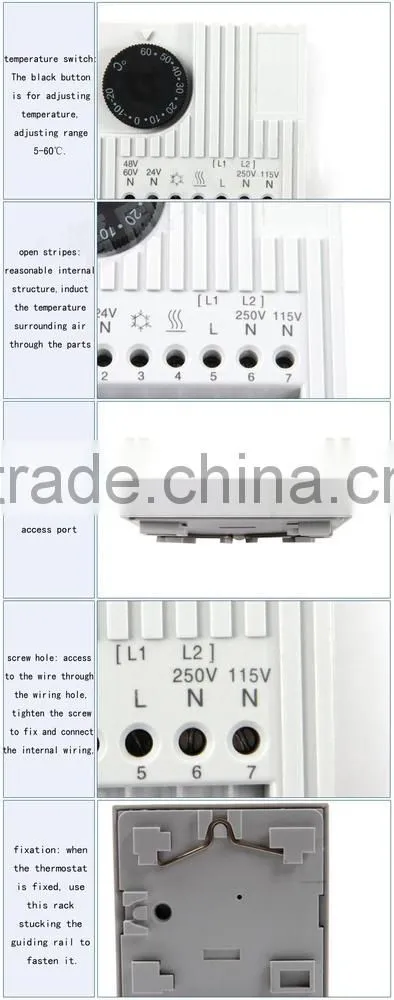

4. Adjusting range: +5°C to+60°C
5. Weight: 105 gappr
6. Size 70×70×33 5mm
7. Switch disc repancy: 1K±0.8K
8. Voltage scope is wide any type could be used f rom 24V to 230V
9. Time-saving connection terminal block could be installed with scrow from outside
10. Easy installation could be installed to 35mm din rail vertically or horizontally according to EN50022,it could be clipped to NS/35-ES cabinet profile with its accessory adapter
Description |
TC-8000 c0ntroller, increasing output |
Function |
Proportional plus Integral Positive or Negative |
Models |
See below chart |
Supply Power |
24VAC+15%-10%, 50-60HZ |
Output Signal |
24VAC through 3-end,2-way silicon controlled rectifier |
Consumption |
2VA(0.8A)No load |
Proportional Band |
1K-7K/4%-40% adjustable, 4K/20% set by the factory |
Resetting time |
5 or 2.5 minutes. adjusted by the inner jumper. |
Set-point re-adjust(only used in concentrated model) |
0V-10V DC correspond -8K-8K |
Stand by set-point |
2k by closing the external connector |
Setting range |
Chart |
Sensitive element |
NTC- thermistor |
Wiring |
Terminal wiring/fit for max.1.5mm thread wires |
Casing |
Flameproof and self-extinguished ABS-plastic, yellow |
Working Temp |
0oC~50oC |
Storage Temp |
-40oC~70oC |
Net Weight |
0.120Kg |
Accessories(order separately) |
Built-out long distance temperature sensor. |
What is the packing for our product?
What is the delivery way?
(1)If ship by sea and Air,you can get Bill of Loading,CO,Commerical invoice,Packing list from us after ship.
(2)If ship by express company,you will get a Tracking No. from us after ship.
What the Certifications do we have obtained?
What is the payment?
What's the Refund & Replacement?
1. 90-day-warranty.
If there is any quality problem (defective / don't work) of the goods, it could be returned within the warranty days. (Please notify us as soon as possible)
2. Any items must be returned in their original condition to qualify for a refund or replacement. (Any used items cannot be refunded or replaced).
Company view
Our team
What is the MOQ of our Thermostat?
MOQ: We support sample order.(1~5PCS)
More than 500PCS,can pring Logo on the products.
How to Visit and contact us?
Firstly, you are highly welcomed to visit our factory, we can provide you an invitation letter from Chinese Embassy for you if needed.
Besides, we are more pleased to help you to book a flight or hotel to save your time.
