FTS 011 Normal Open Fixed Temperature Tamperproof Auto AC Thermostat With CE

Name: FTS 011 Normal Open Fixed Temperature Tamperproof Auto AC Thermostat With CE
Brand: Winston/OEM, Winston/OEM
SKU: 110979883
Availability: InStock

FTS 011 Normal Open Fixed Temperature Tamperproof Auto AC Thermostat With CE thumbnail-1

FTS 011 Normal Open Fixed Temperature Tamperproof Auto AC Thermostat With CE thumbnail-2

FTS 011 Normal Open Fixed Temperature Tamperproof Auto AC Thermostat With CE photo-1

FTS 011 Normal Open Fixed Temperature Tamperproof Auto AC Thermostat With CE photo-2

US$ 3.5 - 7 MOQ: 10 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

Winston/OEM, Winston/OEM

Model Number:

FTS 011, FTS 011 NO

Contact Supplier Request Quote Chat Now

Yueqing Winston Electric Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo Shanghai Shenzhen or others

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name Winston/OEM, Winston/OEM

Model Number FTS 011, FTS 011 NO

Usage Other, Industrial, Industrial

Theory Other, Temperature Controller, Temperature Controller

Accuracy ± 5K tolerance, 100%

Temperature Range +15°C / +59°F

FTS 011 NO auto ac thermostat

Product Description

1.Compact design

2.Fixed set points

3.Color coded modules

4.DIN rail mountable

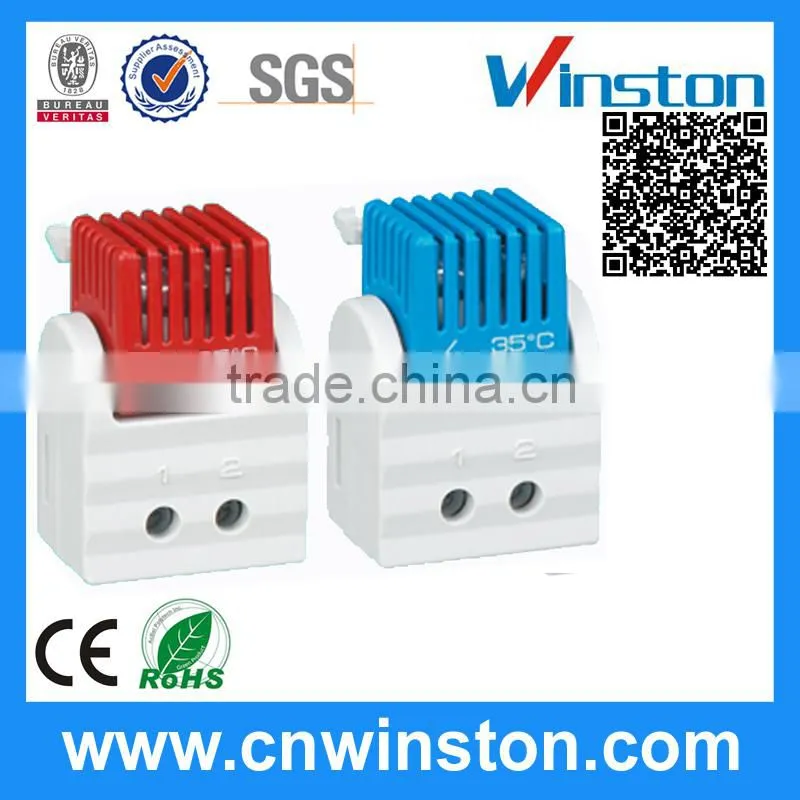

Tamperproof (Pre-set) Thermostat - NC

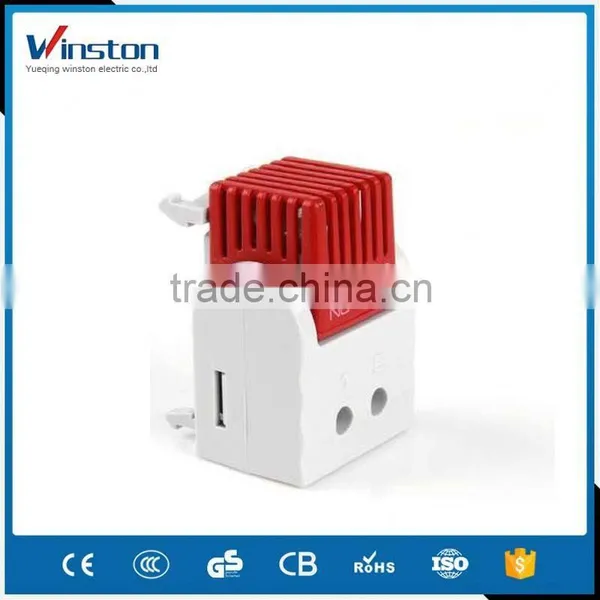

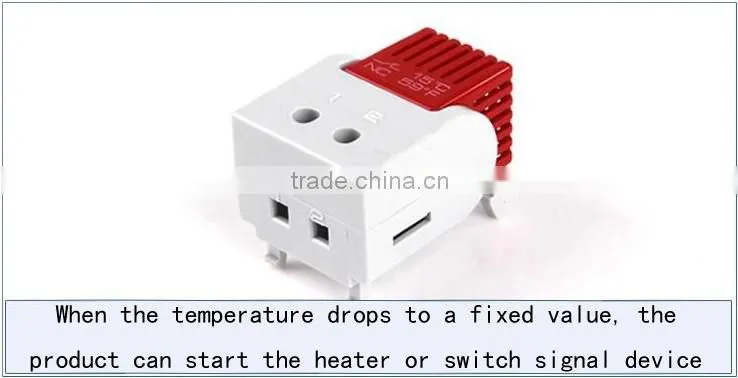

Opens on temperature rise (red module housing) - for regulating heaters or for switching signal
devices when temperature has fallen below the minimum value.
Tamperproof (Pre-set) Thermostat - NO

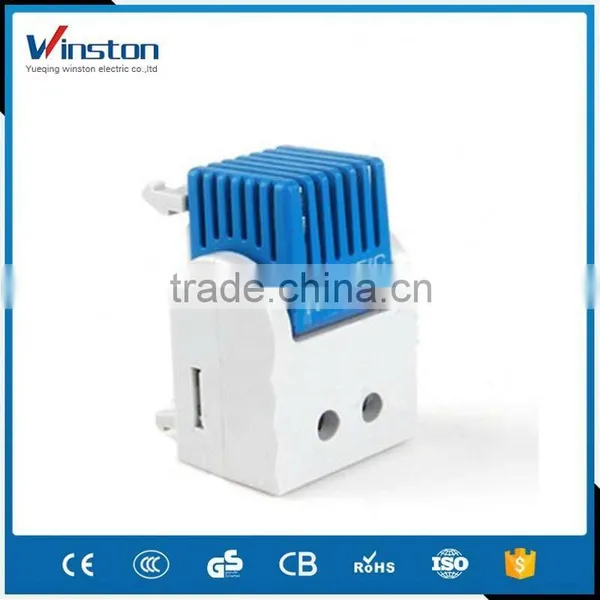

Closes on temperature rise (blue module housing) - for regulating filter fans, heat exchangers, cool-
ing devices or for switching signal devices when temperature limit has been exceeded.
Heaters and cooling equipment can be switched independently from each other with a temperature
offset as opposed to the usual SPDT/change-over contact.

Technic data

Sensor element	Thermostatic bimetal
Contact type	snap-action contact
Service life	> 100,000 cycles
Max. switching capacity	240V AC, 5 (1.6)A
	120 VAC, 10 (2)A
	DC 30W
Max. inrush current	AC 10A
Connection	2-pole terminal for 2.5mm², torque 0.8Nm max.
Mounting	clip for 35mm DIN rail, EN 60715
Casing	plastic according to UL94 V-0, light grey
Dimensions	47 x 33 x 33mm
Weight	approx. 30g
Fitting position	variable
Operating/Storage temperature	-40 to +80°C (-40 to +176°F) / -45 to +80°C (-49 to +176°F)
Operating / Storage humidity	max. 90 % RH (non-condensing)
Prot. type	IP20
Approvals	VDE + UL File No. E164102

Art. No.	Contact type	Switch-off temperature	Switch-on temperature
01160.0-00	Contact breaker (NC)	+15°C / +59°F (± 5K tolerance)	+5°C / +41°F (± 5K tolerance)

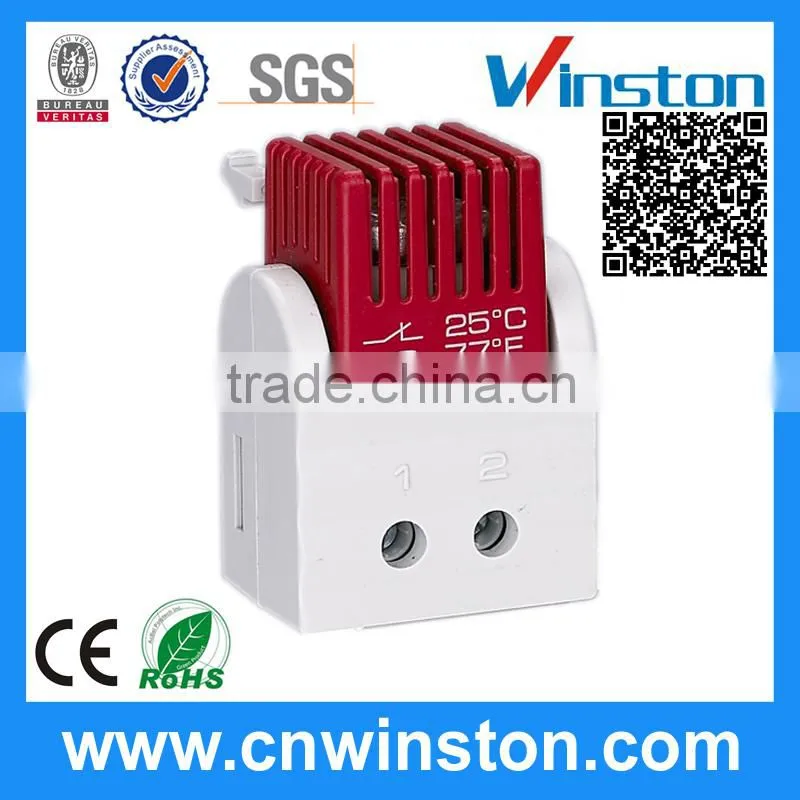

01160.0-01	Contact breaker (NC)	+25°C / +77°F (± 5K tolerance)	+15°C / +59°F (± 5K tolerance)
		Switch-on temperature	Switch-off temperature
01161.0-00	Contact maker (NO)	+50°C / +122°F (± 6K tolerance)	+40°C / +104°F (± 7K tolerance)
01161.0-01	Contact maker (NO)	+60°C / +140°F (± 6K tolerance)	+50°C / +122°F (± 7K tolerance)
01161.0-02	Contact maker (NO)	+35°C / + 95°F (± 6K tolerance)	+25°C / +77°F (± 7K tolerance)

Size

Example of connectio

Packaging & Shipping

What is the packing for our product?

What is the delivery way?

(1)If ship by sea and Air,you can get Bill of Loading,CO,Commerical invoice,Packing list from us after ship.

(2)If ship by express company,you will get a Tracking No. from us after ship.

Our Services

What the Certifications do we have obtained?

What is the payment?

What's the Refund & Replacement?

1. 90-day-warranty.

If there is any quality problem (defective / don't work) of the goods, it could be returned within the warranty days. (Please notify us as soon as possible)

2. Any items must be returned in their original condition to qualify for a refund or replacement. (Any used items cannot be refunded or replaced).

Company view

Our team

Certifications

FAQ

What is the MOQ of our Thermostat?

MOQ: We support sample order.(1~5PCS)

More than 500PCS,can pring Logo on the products.
