Home > Products > Proximity sensors > LMF24 Connector and Square Type NO/NC/NO+NC Output Inductive Infrared Straight Connector Proximity Sensor Switch With CE

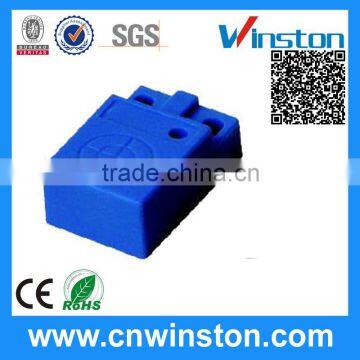

LMF24 Connector and Square Type NO/NC/NO+NC Output Inductive Infrared Straight Connector Proximity Sensor Switch With CE

FOB Price

US$ 2.9 - 4.5 / Piece

10 Pieces(Min. Order)

Port Ningbo Shanghai
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	WINSTON/OEM
Model Number	LMF24	Usage	Other, inductance proximity sensor switch
Theory	Inductance Sensor	Output	Analog Sensor

Product Description

World-class sensor manufacturer and supplier

Product Description

Compact volume
High precision of repeated location
Diversified exterior structures
Good performance of anti-interference.
Many output forms
High on-off frequency.
Wide voltage range
Dust proof, vibration proof, water proof and oil proof.
With short-circuit protection and inverted connecting protection.
Long service life

Technique parameter:
1. Switch category(LM: Inductance type; CM: Capactitance type; SM: Hall type; AM: Safety explosion-proof type; XM: Mimic linear type)

2. Outward appearance code(C: Cylinder type; F: Angular column type and planeinstallation type)

3. Operating voltage(30: 6-36VDC; 310: 5-24VDC; 320: 12-60VDC; 20: 90-250VAC; 210: 24-250VAC; 220: 380VAC; 40: 12-240VDC/24-240AC; 50: Special voltage)

4. Detection distance( 01: 1mm; 05: 5mm; 10: 10mm)

5. Output method (N: Three-line DC NPN output; P: Three-line DC PNP output; L: Two-line DC output; AC two-wire output; J: Relay output; NP: NPN+PNP output)

6. Output status(A: NO; B: NC; C: NO+NC; MU: Mimic voltage; MI: Mimic current)

7. Auxi function code(T: With connector; Y: Water proof, oil proof; I: Special requirement; H: High temp resistance; R: Ring type)

Technique parameter

DETECTION DISTANCE 4mm
Flush	DC 10-30V	NPN	NO	LMF24-3004NA
			NC	LMF24-3004NB
			NO+NC
		PNP	NO	LMF24-3004PA
			NC	LMF24-3004PB
			NO+NC
		two wire system	NO	LMF24-3004LA
			NC	LMF24-3004LB
	AC 90-250V	SCR Control-lable silicon	NO
			NC
			NO+NC
		Relay output
	DETECTION DISTANCE 5MM
Non-Flush	DC 10-30V	NPN	NO	LMF24-3005NA
			NC	LMF24-3005NB
			NO+NC	LMF24-3005NC
		PNP	NO	LMF24-3005PA
			NC	LMF24-3005PB
			NO+NC	LMF24-3005PC
		two wire system	NO	LMF24-3005LA
			NC	LMF24-3005LB
	AC 90-250V	SCR Control-lable silicon	NO
			NC
			NO+NC
		Relay output
Controloutput		DC		200mA
		SCR/ Relay
Output voltagc dropDC/AC				NPN/PNP< 3V, Two wire< 3.9V, AC< 10V
Consumption current				DC< 15mA, AC< 10mA
Standard detected object				12121(A3 iron)
Repeated precision				0.05
DC/AC				500HZ/5HZ
Working environment temperature				-25~+70º C
Insulation resistance				50MΩ
Shell material				ABS Plastic
Protection grade				IP67
Altemative model at home and abroad

Packaging & Shipping

(1)If ship by sea and Air,you can get Bill of Loading,CO,Commerical invoice,Packing list from us after ship.

(2)If ship by express company,you will get a Tracking No. from us after ship.

Our Services

Payment

FAQ

Q 1. what's the payment term?

A. We accept TT,30% deposit and 70% balance agaisnt copy of BL

Q 2. how's the delivery time ?

A. usually it will take about 15 days for production

Q 3. tell me the standard of package?

A. Export standard carton box

Q 4.Could you offer Form A or C/O ?

A. It totally not a problem. We can prepare relative documents to forgin affairs office or other office to apply for this certificate.

Q 5.Would you accept to use our logo ?

A.If you have good quantity,it absolute no problem to do OEM.

Q 6.We want to know month capacity.

A. It depends on which model.For example for M12 type normal type, month capacity can reach near 20000pcs.

Q 7.Where is your market?

A. Our products are popular in Russia, Indonisia, Philippines,Italy, America, Brazil and so on.Some of them are our regular customers and some of them are developing. We hope you can join us and make mutural benifit from our cooperation.

“Facts speak louder than words”. For more informations, Inquiry NOW !!!
