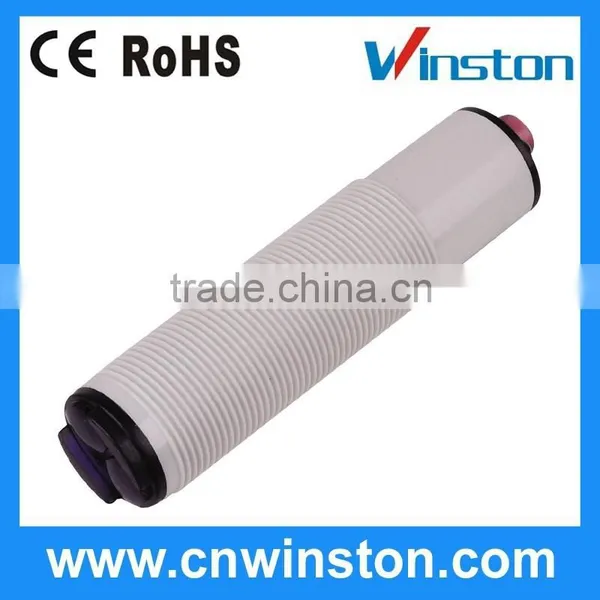

G18-3A10NA Diffuse type 10cm detection distance NPN NO Photoelectric sensor switch
What is Photoelectric switch?
A proximity sensor is a sensorable to detect the presence of nearby objects without any physical contact.
A proximity sensor often emits an electromagnetic field or a beam of electromagnetic radiation (infrared, for instance), and looks for changes in the fieldor return signal. The object being sensed is often referred to as the proximity sensor's target.
Where is our photoelectric switch use?
♦ Parking sensors, systems mounted on car bumpers that sense distance to nearby cars for parking
♦ Ground proximity warning systemfor aviation safety
♦ Vibration measurements of rotating shafts in machinery
♦ Top dead centre(TDC)/camshaftsensor in reciprocating engines.
♦ Sheet break sensing in paper machine.
♦ Anti-aircraft warfare
♦ Roller coasters
♦ Conveyor systems
♦ Beverage and food can making lines
♦ Improvised Explosive Devices or IEDs
♦ Mobile devices
What is the Features of the photoelectric switch?
Compact volume, High on-off frequency
High precision of repeated location
Diversified exterior structures
Good performance of anti-interference
Many output forms, Wide voltage range
Dust proof, vibration proof, water proof and oil proof
With short-circuit protection and inverted
connecting protection
Long service life
2 years warranty
What's the model meaning of our photoelectric switch?
1. Switch category(LM: inductance type; CM: capactitance type;SM:Hall type; AM:safety
explosion-proof type; XM: mimic linear type)
2. Outward appearance code(C: Cylinder type; F: Angular column type and planeinstall
-ation type)
3. Operating voltage(30: 6-36VDC; 310: 5-24VDC; 320: 12-60VDC; 20:90-250VAC; 210:
24-250VAC;220: 380VAC; 40: 12-240VDC/24-240AC; 50: Special voltage)
4. Detection distance( 01: 1mm; 05:5mm; 10:10mm)
5. Output method (N: Three-line DC NPN output;P: Three-line DC PNP output;
L: Two-line DC output; AC two-wire output;J: Relay output;NP: NPN+PNP output)
6. Output status(A: NO; B: NC; C: NO+NC; MU: Mimic voltage; MI: Mimic current)
7. Auxi function code(T: With connector; Y: Water proof, oil proof; I: Special requirement;
H: High temp resistance; R: Ring type)
What is the working principle of our photoelectric switch?
What is the Specifications about our photoelectric switch?
| Type | DETECTION DISTANCE 2mm | |||
| Flush | DC 10-30V | NPN | NO | LM12-3002NA |
| NC | LM12-3002NB | |||
| NO+NC | LM12-3002NC | |||
| PNP | NO | LM12-3002PA | ||
| NC | LM12-3002PB | |||
| NO+NC | LM12-3002PC | |||
| two wire system | NO | LM12-3002LA | ||
| NC | LM12-3002LB | |||
| AC 90-250V | SCR Control-lable silicon | NO | LM12-2002A | |
| NC | LM12-2002B | |||
| NO+NC | ||||
| Relay output | ||||
| DETECTION DISTANCE 4mm | ||||
| Non-Flush | DC 10-30V | NPN | NO | LM12-3004NA |
| NC | LM12-3004NB | |||
| NO+NC | LM12-3004NC | |||
| PNP | NO | LM12-3004PA | ||
| NC | LM12-3004PB | |||
| NO+NC | LM12-3004PC | |||
| two wire system | NO | LM12-3004LA | ||
| NC | LM12-3004LB | |||
| AC 90-250V | SCR Control-lable silicon | NO | LM12-2004A | |
| NC | LM12-2004B | |||
| NO+NC | ||||
| Relay output | ||||
| Controloutput | DC | 200mA | ||
| SCR/ Relay | ||||
| Output voltagc dropDC/AC | NPN/PNP<3V,Two wire<3.9V,AC<10V | |||
| Consumption current | DC<15mA,AC<10mA | |||
| Standard detected object | 15*15*1(A3 iron) | |||
| Repeated precision | 0.01 | |||
| DC/AC | 400Hz/25Hz | |||
| Working environment temperature | -25℃~+70℃ | |||
| Insulation resistance | 50MΩ | |||
| Shell material | Metal | |||
| Protection grade | IP67 | |||
| Altemative model at home and abroad | E2E-X5 | |||
What is the Overall dimension of our photoelectric switch?
What is the packing for our photoelectric switch?
What is the delivery way?
(1)If ship by sea and Air,you can get Bill of Loading,CO,Commerical invoice,Packing list from us after ship.
(2)If ship by express company,you will get a Tracking No. from us after ship.
What the Certifications do we have obtained?
What is the payment?
What's the Refund & Replacement?
1. 90-day-warranty.
If there is any quality problem (defective / don't work) of the goods, it could be returned within the warranty days. (Please notify us as soon as possible)
2. Any items must be returned in their original condition to qualify for a refund or replacement. (Any used items cannot be refunded or replaced).
Company view

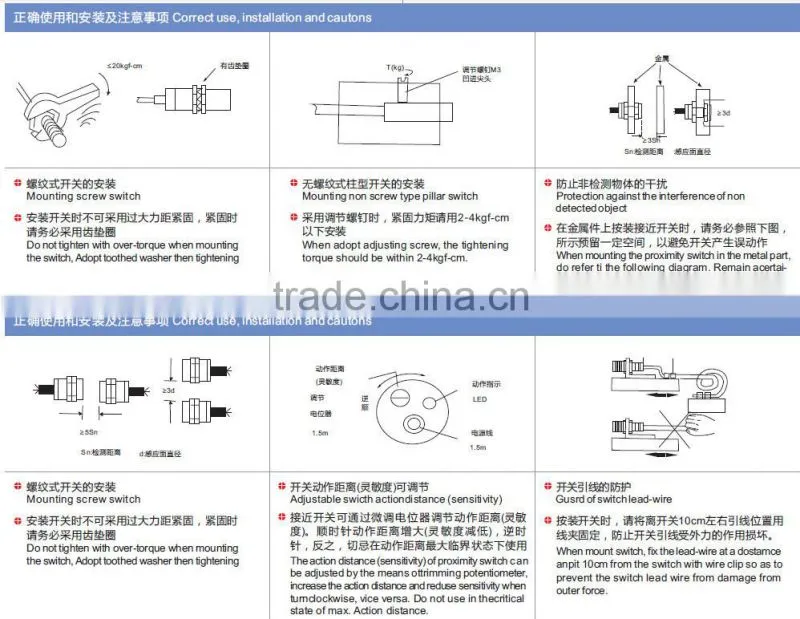

How to use our photoelectric switch?
What's the caution terms of our promixity switch?
(1) Should we use insulation transformer when using the DC switch?
Answer: Dc switch should adopt insulation transformer and ensure stable voltage mains corrugation.
(2) How to do when electric power line passes through the surrounding of switch lead-wire?
Answer: If any electric power line or dynamic line passes through the surrounding of switch lead-wire, in order to prevent the switch from damage or error action ,cover the metal bushing on the switch lead-wire and ground it to the earth.
(3) Why should we set the switch use distance?
Answer: Set the switch use distance within the rated distance to avoid the effects from temperature and voltage.
(4) What should we pay attention to when wiring?
Answer: Wiring while power-on is strictly prohibited. connecting the wires strictly according to the wiring diagram and output return elementary diagram.
(5) Are we accept the customization?
Anwser: Yes. If there are any special requirements to the switch like water proof, oil proof, acid proof, base proof, high temperature proof of with any other specifications, the users are required to give clear indication when placing an order. we can produce according to the requirements of the user.
What is the MOQ of our photoelectric switch?
MOQ: We support sample order.(1~5PCS)
More than 500PCS,can pring Logo on the products.
What is the guarantee Period for our Photoelectric switch?
1-2Year afer sold
How to Visit and contact us?
Firstly, you are highly welcomed to visit our factory, we can provide you an invitation letter from Chinese Embassy for you if needed. Besides, we are more pleased to help you to book a flight or hotel to save your time.
