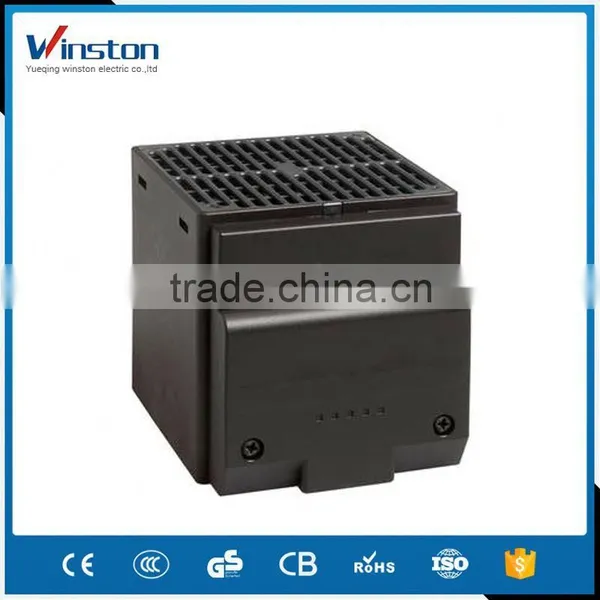

Help CenterCSL 028 Touch-Safe PTC Enclosure Industrial Electric Mini Air Fan Heater
Related Products
-
CR 027 Cabinet Enclosure Semiconductor Electric Compact High-perfromance Fan HeaterUS$ 93.96 - 97.4MOQ: 1 Piece -
CS 030 Cabinet Enclosure Semiconductor Electric Compact Foot-mount PTC Fan Heater With CEUS$ 113.44 - 120.31MOQ: 1 Piece
-
Hot Sale Fan Heater With Thermostat WST7000 Series Of Mechanical ThermostatUS$ 4 - 6MOQ: 1 Piece
-
RCE 016 PTC 5 & 9 w Semiconductor dc Voltage Small Heater Used to Prevent CondensationUS$ 5 - 100MOQ: 50 Pieces
-
DA 084 Pressure Compensation Bellows Type Expansion Vent Plug With CEUS$ 3 - 6MOQ: 10 Pieces
Small, compact design
Quiet in operation
Dynamic heating up
Clip or screw fixing
Fan heater prevents formation of condensation and provides an evenly distributed interior air temperature in enclosures with electric/electronic components. The heater is connected using the internal terminal connectors The CS 028s small size make it ideal for use in enclosures where space is at a premium.
Heating element |
PTC resistor - temperature limiting |
Surface temperature |
150W/250W: max. 50°C (122°F), except upper protective grille |
|
400W: max. 65°C (149°F), except upper protective grille |
|
at 20°C (68°F) ambient temperature |
Axial fan, ball bearing |
air flow, free flow: |
|
CS 028: 13.8m³/h |
|
CSL 028: 45m³/h (230VAC), 54m³/h (120VAC) |
|
service life 40,000h at 40°C (104°F) |

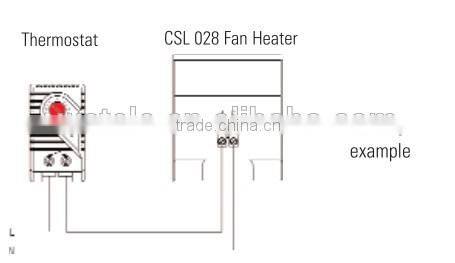

Connection |
2-pole clamp max. 2.5mm² (CSL 028 with strain relief), |
|
clamping screw torque 0.8Nm max. |
Casing |
plastic according to UL94-0, black |
Mounting |
clip for 35 mm DIN rail, EN 60715 or screw fixing (Ø 5.3mm) |
Fitting position |
vertical airflow (air outlet up) |
Operating/Storage temperature |
-45 to +70°C (-49 to +158°F) |
Operating/Storage humidity |
max. 90% RH (non-condensing) |
Protection type/Protection class |
IP20 / II (double insulated) |
Approvals |
|
Note |
other voltages on request |
Art. No. clip fixing |
Art. No. screw fixing |
Series |
Operating voltage |
Heating capacity* |
Inrush current max. |
Pre-fuse T (time-delay) |

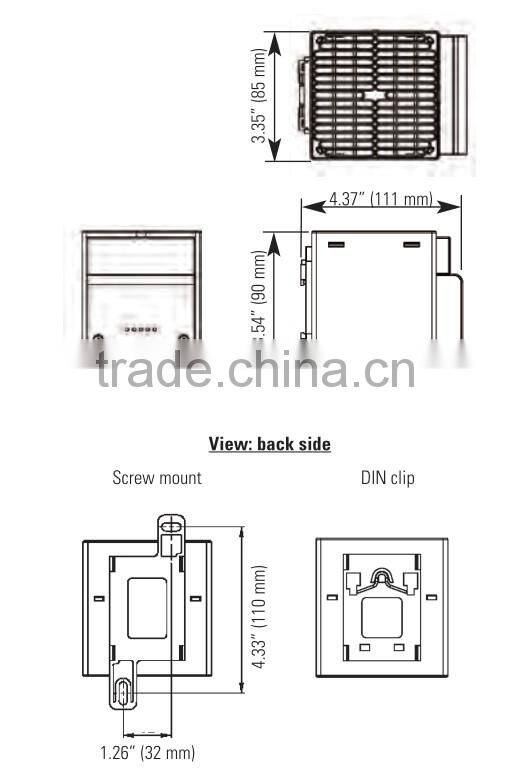

Dimensions (H x W x D) |
Weight (approx.) |
02800.0-00 |
02800.0-01 |
CS 028 |
230VAC, 50/60Hz |
150W |
12A |
6.3A |
75 x 65 x 90mm |
0.3kg |
02811.0-00 |
02811.0-01 |
CSL 028 |
230VAC, 50/60Hz |
250W |
9A |
6.3A |
90 x 85 x 111mm |
0.5kg |
02810.0-00 |
02810.0-01 |
CSL 028 |
230VAC, 50/60Hz |
400W |
15A |
10A |
90 x 85 x 111mm |
0.5kg |
02800.9-00 |
02800.9-01 |
CS 028 |
120VAC, 50/60Hz |
150W |
6A |
6.3A |
75 x 65 x 90mm |
0.3kg |
02811.9-00 |
02811.9-01 |
CSL 028 |
120VAC, 50/60Hz |
250W |
6A |
6.3A |
90 x 85 x 111mm |
0.5kg |
02810.9-00 |
02810.9-01 |
CSL 028 |
120VAC, 50/60Hz |
400W |
9A |
6.3A |
90 x 85 x 111mm |
0.5kg |
at 20°C (68°F) ambient temperature ptc heater
What is the delivery way?
(1)If ship by sea and Air,you can get Bill of Loading,CO,Commerical invoice,Packing list from us after ship.
(2)If ship by express company,you will get a Tracking No. from us after ship.
What the Certifications do we have obtained?
What is the payment?
What's the Refund & Replacement?
1. 90-day-warranty.
If there is any quality problem (defective / don't work) of the goods, it could be returned within the warranty days. (Please notify us as soon as possible)
2. Any items must be returned in their original condition to qualify for a refund or replacement. (Any used items cannot be refunded or replaced).
How do our thermostat switches on and off?
1. An outer dial enables you to set the temperature at which the thermostat switches on and off.
2. The dial is connected through a circuit to the temperature sensor (a bimetal strip, shown here colored red and blue), which switches an electrical circuit on and off by bending more or less.
3. The bimetal ("two metal") strip is made of two separate metal strips fastened together: a piece of brass (blue) bolted to a piece of iron (red).
4. Iron expands less than brass as it gets hotter, so the bimetal strip curves inward as the temperature rises.
5. The bimetal strip forms part of an electrical circuit (gray path). When the strip is cool, it's straight, so it acts as a bridge through which electricity can flow. The circuit is on and so is the heating. When the strip is hotter, it bends and breaks the circuit, so no electricity can flow. Now the circuit is off.
What is the MOQ of our our Thermostat?
MOQ: We support sample order.(1~5PCS)
More than 500PCS,can pring Logo on the products.
What is the guarantee Period for our our Thermostat?
1-2Year afer sold
How to Visit and contact us?
Firstly, you are highly welcomed to visit our factory, we can provide you an invitation letter from Chinese Embassy for you if needed. Besides, we are more pleased to help you to book a flight or hotel to save your time
