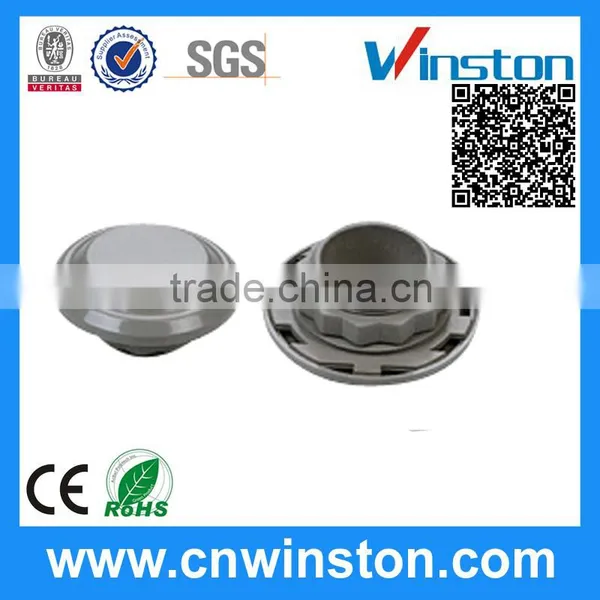

Pressure Compensation Device DA 084
1.High degree of protection
2.Easy to Install
3.dustproof
4.good quality

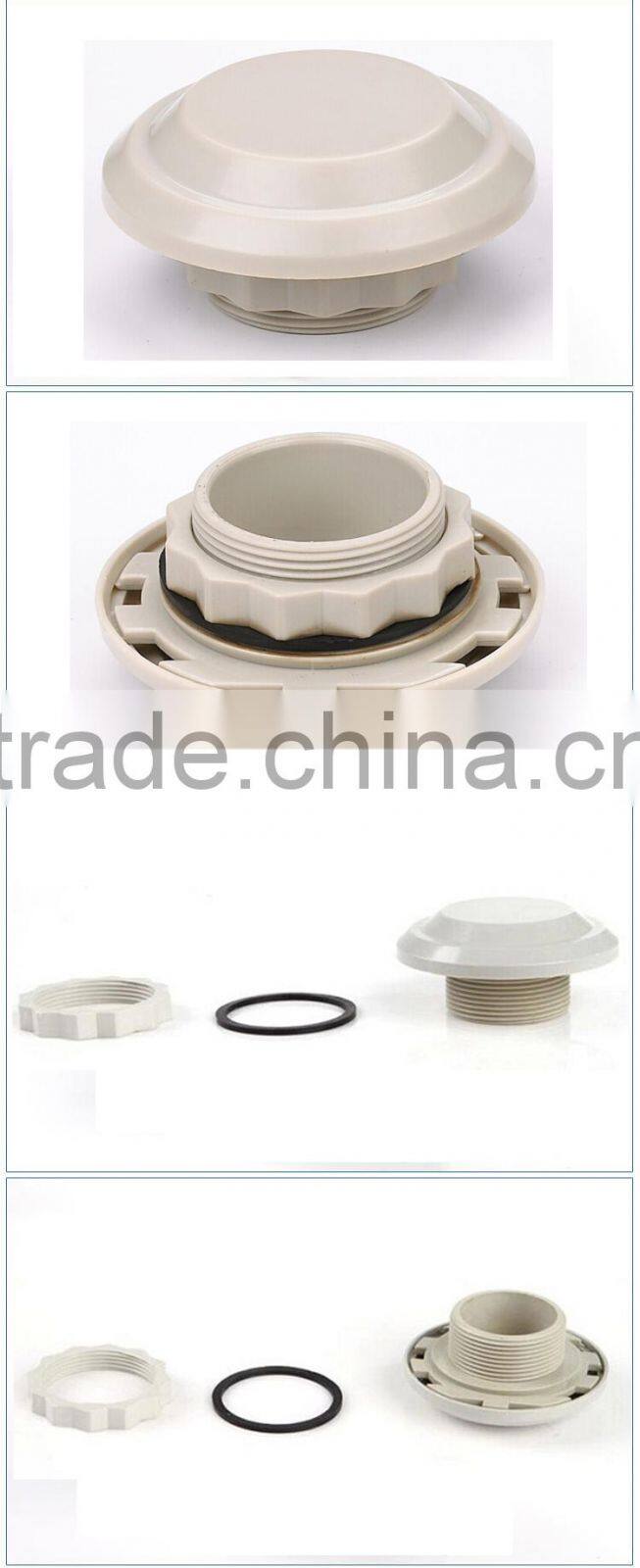

Pressure Compensation Device DA 084
It has becomemore andmore important to provide a protected enclosure environment for valuable and crucial electrical and electronic components.
In a tightly closed enclosure, pressure differentials can occur during extreme temperature variations, such as day/night operation.When this occurs, the risk of dust and humidity being absorbed into the control panel increases dramatically. The specially designed pressure compensation device DA 084 permits a controlled change in pressure. It can be installed easily in any enclosure. The pressure compensation device is suitable for the use in enclosures and switch cabinets in accordance with DIN EN 62208.
Mounting |
PG 29 thread with union nut |
Torque |
5Nm (max. 10Nm) |
Material |
plastic according to UL94 V-0, pebble grey |
Sealing |
sealing gasket NBR |
Air interface |
approx. 7cm² |
Dimensions |
Ø 65.5mm x 30.5mm |
Fitting position |
vertical* |
Operating/Storage temperature |
-45 to +70°C (-49 to +158°F) |
Art. No. |
Model | Protection type | 1 packing unit | Weight (approx.) |
| 08400.0-00 | without gasket | IP45 | 2 pieces | 62g (31g/pc.) |
| 08400.0-04 | with gasket | IP55 | 2 pieces | 62g (31g/pc.) |
What is the delivery way?
(1)If ship by sea and Air,you can get Bill of Loading,CO,Commerical invoice,Packing list from us after ship.
(2)If ship by express company,you will get a Tracking No. from us after ship.
What the Certifications do we have obtained?
What is the payment?
What's the Refund & Replacement?
1. 90-day-warranty.
If there is any quality problem (defective / don't work) of the goods, it could be returned within the warranty days. (Please notify us as soon as possible)
2. Any items must be returned in their original condition to qualify for a refund or replacement. (Any used items cannot be refunded or replaced).
Company view
How do our thermostat switches on and off?
1. An outer dial enables you to set the temperature at which the thermostat switches on and off.
2. The dial is connected through a circuit to the temperature sensor (a bimetal strip, shown here colored red and blue), which switches an electrical circuit on and off by bending more or less.
3. The bimetal ("two metal") strip is made of two separate metal strips fastened together: a piece of brass (blue) bolted to a piece of iron (red).
4. Iron expands less than brass as it gets hotter, so the bimetal strip curves inward as the temperature rises.
5. The bimetal strip forms part of an electrical circuit (gray path). When the strip is cool, it's straight, so it acts as a bridge through which electricity can flow. The circuit is on and so is the heating. When the strip is hotter, it bends and breaks the circuit, so no electricity can flow. Now the circuit is off.
What is the MOQ of our our Thermostat?
MOQ: We support sample order.(1~5PCS)
More than 500PCS,can pring Logo on the products.
What is the guarantee Period for our our Thermostat?
1-2Year after sold
How to Visit and contact us?
Firstly, you are highly welcomed to visit our factory, we can provide you an invitation letter from Chinese Embassy for you if needed. Besides, we are more pleased to help you to book a flight or hotel to save your time.
