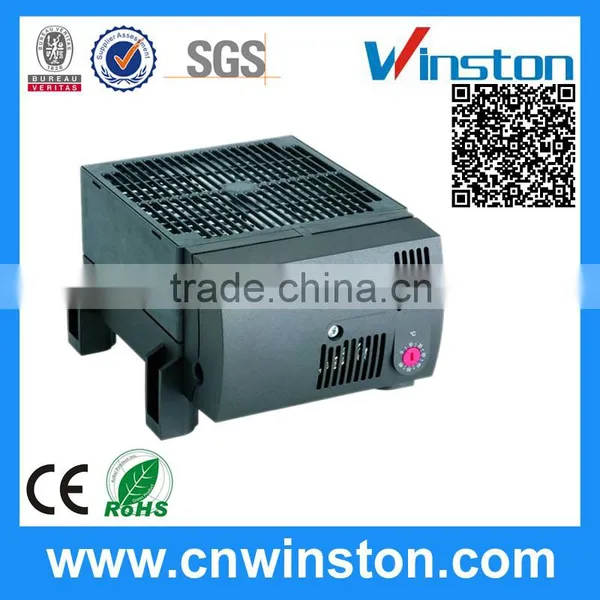

CR 030 Cabinet Enclosure Semiconductor Electric Compact High-perfromance Fan Heater
- 50000 Piece / Pieces per Month
- NINGBO SHANGHAI
- T/T Credit Card PayPal
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | WINSTON | Model Number: | CR 030 |
Usage: | Other, Industrial, Industrial | Theory: | Other, Temperature Controller, Temperature Controller | Accuracy: | 100% |
Temperature Range: | 0~+60 degrees |
Product Description
Compact design
Double insulated
Integrated thermostat or hygrostat
The compact high performance fan heater prevents formation of condensation and frost and provides an evenly distributed interior air temperature in enclosures with electric/electronic components. The plastic enclosure provides double insulation and acts as protection against contact. The fan heater is available with integrated thermostat or pre-set hygrostat for temperature or humidity control. The CR 030 was designed as a stationary unit for the bottom of the enclosure. For wall fixing the fan heater CR 130 is recommended.
Heating element | high performance cartridge |
Temperature safety cut-out | to protect against overheating in case of fan failure, |
| automatic reset |
Heater body | extruded aluminium profile |
Axial fan, ball bearing | airflow 160m³/h, free flow |
| service life 50,000h at 25°C (77°F) |
Connection | 2-pole max. 2.5mm², clamping screw with strain relief, |
| torque 0.8Nm max. |
Casing | plastic according to UL94 V-0, black |
Mounting | screw fixing (M5) |
Fitting position | vertical airflow (air outlet up) – other fitting positions possible |

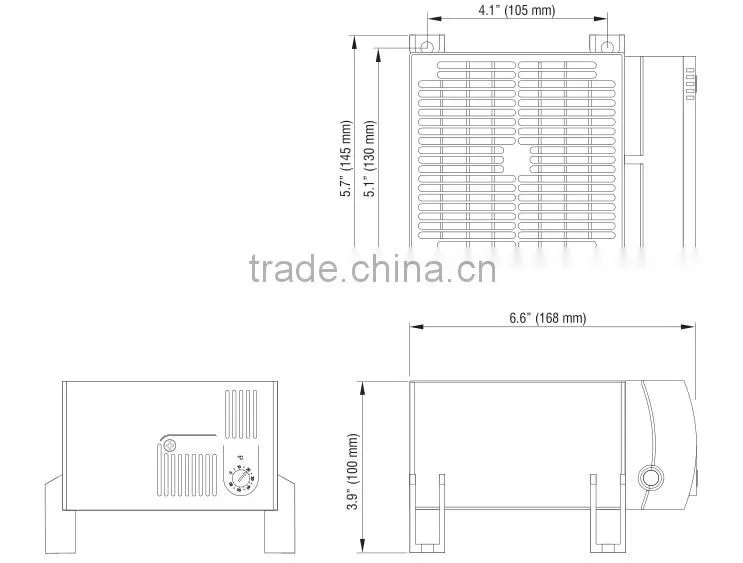

Dimensions | 168 x 145 x 100mm |
Weight | approx. 1.4kg |
Operating*/Storage temperature | -45 to +70°C (-49 to +158°F) |
Operating/Storage humidity | max. 90% RH (non-condensing) |
Protection type/Protection class | IP20 / II (double insulated) |
Note | other heating capacities from 200W up available on request |
Art. No. | Model | Operating voltage | Heating capacity | Pre-fuse T (time-delay) | Setting range | Approvals |
03051.0-00 | Fan Heater with thermostat | 230VAC, 50/60Hz | 950W | 8A | 0 to +60°C |
|
03051.0-02 | Fan Heater with hygrostat | 230VAC, 50/60Hz | 950W | 8A | 65% RH, factory-set |
|
03059.9-00 | Fan Heater with thermostat | 120VAC, 50/60Hz | 950W | 12.5A | +32 to +140°F |
|
What is the delivery way?
(1)If ship by sea and Air,you can get Bill of Loading,CO,Commerical invoice,Packing list from us after ship.
(2)If ship by express company,you will get a Tracking No. from us after ship.
What the Certifications do we have obtained?
What is the payment?
What's the Refund & Replacement?
1. 90-day-warranty.
If there is any quality problem (defective / don't work) of the goods, it could be returned within the warranty days. (Please notify us as soon as possible)
2. Any items must be returned in their original condition to qualify for a refund or replacement. (Any used items cannot be refunded or replaced).
Company view
How do our thermostat switches on and off?
1. An outer dial enables you to set the temperature at which the thermostat switches on and off.
2. The dial is connected through a circuit to the temperature sensor (a bimetal strip, shown here colored red and blue), which switches an electrical circuit on and off by bending more or less.
3. The bimetal ("two metal") strip is made of two separate metal strips fastened together: a piece of brass (blue) bolted to a piece of iron (red).
4. Iron expands less than brass as it gets hotter, so the bimetal strip curves inward as the temperature rises.
5. The bimetal strip forms part of an electrical circuit (gray path). When the strip is cool, it's straight, so it acts as a bridge through which electricity can flow. The circuit is on and so is the heating. When the strip is hotter, it bends and breaks the circuit, so no electricity can flow. Now the circuit is off.
What is the MOQ of our our Thermostat?
MOQ: We support sample order.(1~5PCS)
More than 500PCS,can pring Logo on the products.
What is the guarantee Period for our our Thermostat?
1-2Year afer sold
How to Visit and contact us?
Firstly, you are highly welcomed to visit our factory, we can provide you an invitation letter from Chinese Embassy for you if needed. Besides, we are more pleased to help you to book a flight or hotel to save your time.
