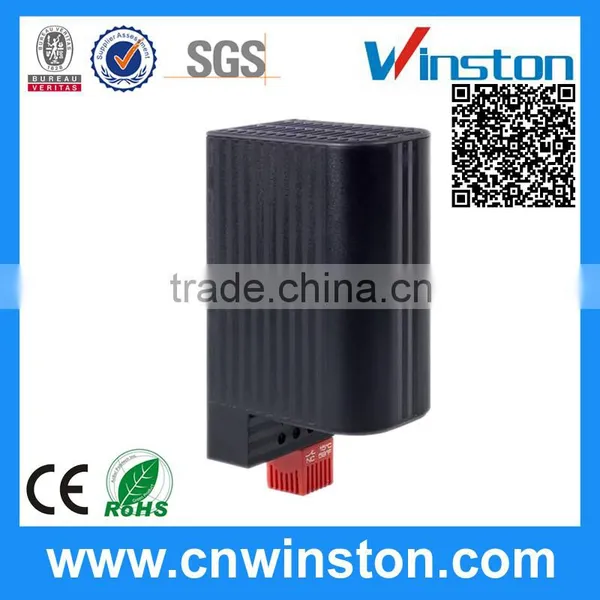

50-150W Touch-Safe Small Industrial electric heater CS 060
1.Low surface temperature
2.Wide vol.range
3.Double insulated
Touch-safe heater for the use in enclosures with electrical/electronical components.
The design of the heater supports the natural convection which results in a high aircurrent of warm air.
The surface temperature on the accessible side surface of the housing are kept dowm as a result of the heater design.
Our complete range of thermostats and hygrostats can directly be connected to the heater CS060.
This heater is also available in a version with plug-in thermostat requiring no additional wiring (CSF 060). Both version are designed for permanent operation.
| Operating voltage | 120-240V AC/DC |
| Heating element | PTC resistor - temperature limiting |
| Surface temperature | <80°C(176°F) except upper protective grille |
| Connection | 4-pole terminal 2.5mm2 torpue 0.8Nm max. |
| Casing | plastic according to UL94 V-0, black |
| Mounting | clip for 35mm DIN rail, EN 60715 or screw fixing (M6) |
| Fitting position | vertical |
| Operating / Storage temperature | -20 to+70°C(-4 to +158°F)/-45 to +70°C(-49 to +158°F) |
| Protection type / Protection class | IP20 / II (double insulated) |
| Approvals | VDE+UL File No.E15057(according to UL499 in combination with UL508A) |
| Note | other voltages on request |
|
* Operating with voltages below 140V AC/DC reduces heating performance by approx.10%. | |
Art. No. |
Heating capacity |
Inrush current max. |
Air outlet temperature2 |
Switch-off temperature3 |
Switch-off temperature3 |

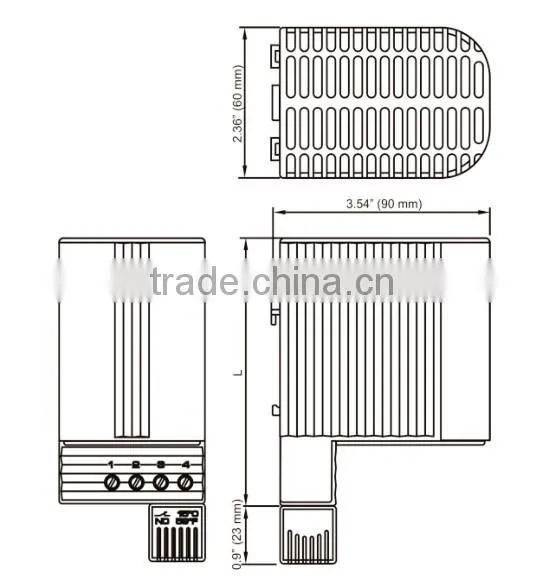

Dimensions |
Weight (approx.) |
06001.0-00 |
50W |
2.5A |
+86°C(186.8°F) |
+15°C(59°F) |
+15°C(41°F) |
110x60x90mm |
0.30kg |
06002.0-00 |
50W |
2.5A |
+86°C(186.8°F) |
+25°C(77°F) |
+25°C(59°F) |
110x60x90mm |
0.30kg |
06011.0-00 |
100W |
4.5A |
+120°C(248°F) |
+15°C(59°F) |
+15°C(41°F) |
110x60x90mm |
0.30kg |
|
|
|
|
|
|
|
|
06012.0-00 |
100W |
4.5A |
+120°C(248°F) |
+25°C(77°F) |
+25°C(59°F) |
110x60x90mm |
0.30kg |
06021.0-00 |
150W |
8A |
+145°C(293°F) |
+15°C(59°F) |
+15°C(41°F) |
150x60x90mm |
0.50kg |
06022.0-00 |
150W |
8A |
+145°C(293°F) |
+25°C(77°F) |
+25°C(59°F) |
What is the delivery way?
(1)If ship by sea and Air,you can get Bill of Loading,CO,Commerical invoice,Packing list from us after ship.
(2)If ship by express company,you will get a Tracking No. from us after ship.
What the Certifications do we have obtained?
What is the payment?
What's the Refund & Replacement?
1. 90-day-warranty.
If there is any quality problem (defective / don't work) of the goods, it could be returned within the warranty days. (Please notify us as soon as possible)
2. Any items must be returned in their original condition to qualify for a refund or replacement. (Any used items cannot be refunded or replaced).
Company view
How do our thermostat switches on and off?
1. An outer dial enables you to set the temperature at which the thermostat switches on and off.
2. The dial is connected through a circuit to the temperature sensor (a bimetal strip, shown here colored red and blue), which switches an electrical circuit on and off by bending more or less.
3. The bimetal ("two metal") strip is made of two separate metal strips fastened together: a piece of brass (blue) bolted to a piece of iron (red).
4. Iron expands less than brass as it gets hotter, so the bimetal strip curves inward as the temperature rises.
5. The bimetal strip forms part of an electrical circuit (gray path). When the strip is cool, it's straight, so it acts as a bridge through which electricity can flow. The circuit is on and so is the heating. When the strip is hotter, it bends and breaks the circuit, so no electricity can flow. Now the circuit is off.
What is the MOQ of our our Thermostat?
MOQ: We support sample order.(1~5PCS)
More than 500PCS,can pring Logo on the products.
What is the guarantee Period for our our Thermostat?
1-2Year afer sold
