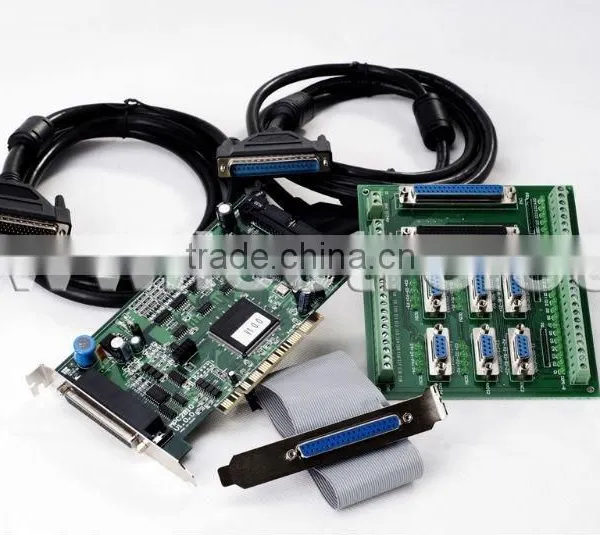

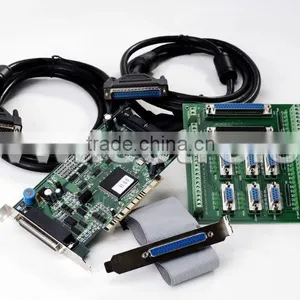

Help Center4-axis Universal/general-purpose Motion Controller
Related Products
-
3-axis Open-loop Motion Control Board (MPC6515)US$ 155 - 255MOQ: 1 Piece -
3-axis Open-loop Motion Control Board (MPC6535)US$ 125 - 255MOQ: 1 Piece
-
Cost Effective and Durable MPC2810A, 4-axis Universal/general-purpose CNC Motion ControllerUS$ 180 - 280MOQ: 1 Set
-
3-axis High Performance Laser Motion Controller, MPC6535US$ 200 - 300MOQ: 1 Set
-
All New 3-axis Leetro Laser Control Board, MPC6525AUS$ 200 - 300MOQ: 1 Set

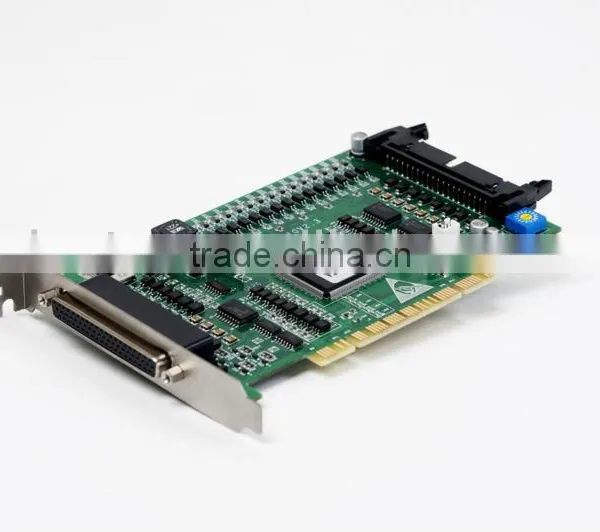

* PCI-BUS
* 1 to 4-axis card for stepper motors or digital servo motors
* Pulse frequency from 0.02Hz to max 2MHz
* Linear interpolation for multiple axes, circular interpolation for two axes.
* 2-CH encoder input interfaces (A/B/Z phases)
* Encoder pulse input frequency up to 2MHz
* 19-CH inputs, 24-CH outputs
* Switch: origin, slow-down and limit
* Pulse/Direction or CW/CCW signals
* Multiple cards can be put into one PC for controlling more axes
* Trapezoidal or S-curve drive of slow-up/slow down control, user-defined curve of
slow-up/slow down control.
* Two processing modes such as batch processing and immediate processing
* Speedy and smooth continuous path motion
* Position compare output
* Regulate position through generated pulses and encoder feedback
* Input interface for manual pulse generator
* Electronic gearing
* Backlash compensation
* Speedy position latch
* Watchdog timer
* Software limit function
12-month product warranty
