Specifications

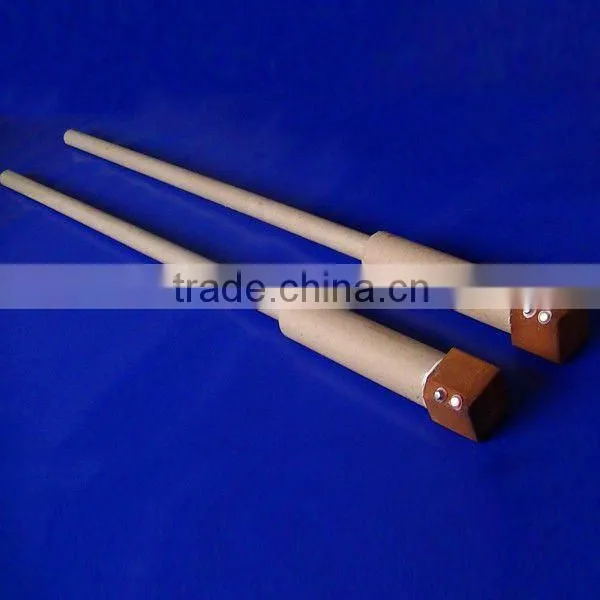

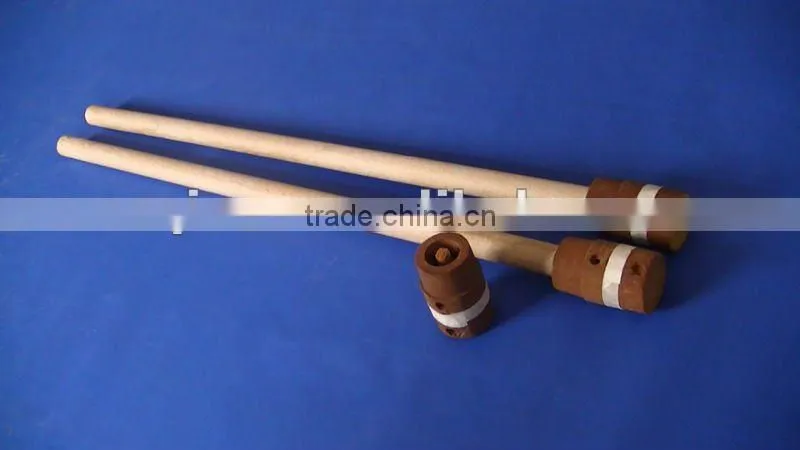

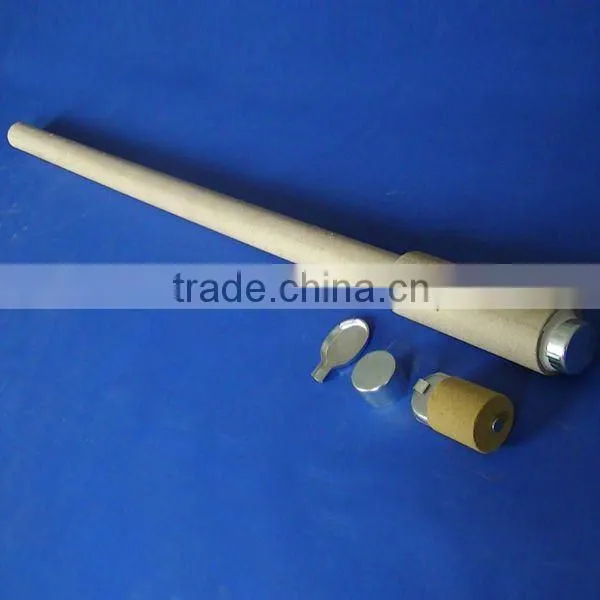

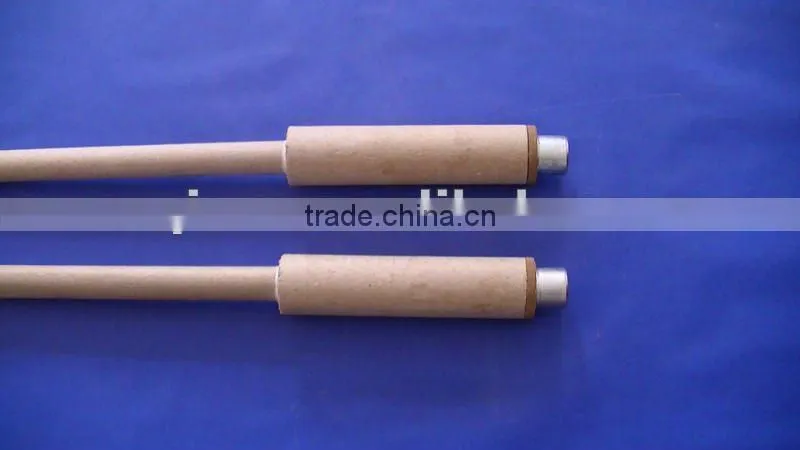

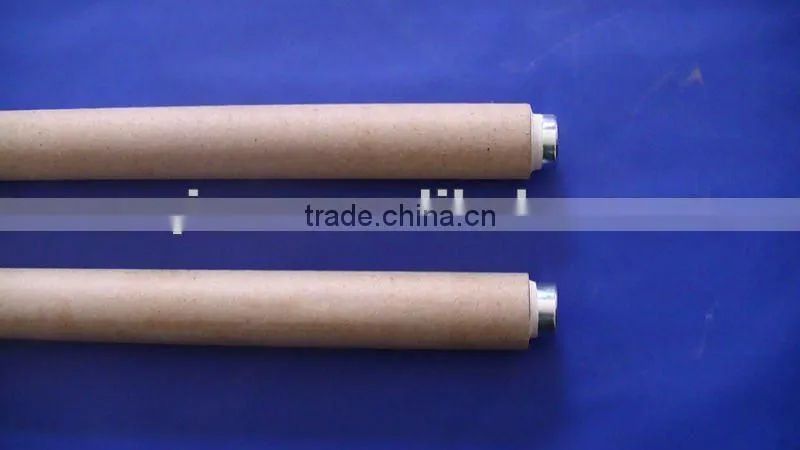

Molten steel samplerIt is used to fast take out of molding steel for spectral analysis
saving time and highrate
Immersion Sampler for Molten Steel
ISO9001
Length:600mm
Sampling size:34*12(changed)
With full mass dense and smooth surface
Immersion Sampler for Molten Steel
It is used for obtaining sample of steel to get chemical analysis.It`s available to suit all furnace,ladle and certain tundish applications.
Specification:
Product Name |
Immersion Sampler |
Type |
QR-342Y-600mm |
Sampler Cap |
34mm*12mm |
Quartz Tube |
8.8mm*40mm |
Aluminium |
0.3g |
Slag cap |
32.8mm*27mm |
Inner diameter of paper tube |
51(+/-1)mm |
Outer diameter of paper tube |
38(+/-1)mm |
a)According to whether the deoxidant is added in sampler:
Type: Immersion molten steel sampler with deoxidant
Model:QR-KQY
Type:Immersion molten steel sampler without deoxidant
Model:QR-KQN
b)According to shape and size of sampler cup:
Name:Immersion molten steel sampler
Model:QR-KQY/N-301
The dimension of the sampling mould is Ø30*14mm
Model:QR-KQY/N-302
The dimension of the sampling mould is Ø30*12mm
Model:QR-KQY/N-305
The dimension of the sampling mould is Ø30*9mm
Model:QR-KQY/N-341
The dimension of the sampling mould is Ø34*11mm
Model:QR-KQY/N-342
The dimension of the sampling mould is Ø34*12mm
Model:QR-KQY/N-32
The dimension of the sampling mould is Ø32*13mm
Model:QR-KQY/N-37
The dimension of the sampling mould is Ø37*17mm
We have all kinds of shapes and sizes.Customers can choose the best ones according to the request and can also order the special sizes.
c)According to shape of paper tube:
We can also custome-made the length according to the customer`s requirements.
d)According to the different sampling method,It can be divided into immersion sampler and injection sampler
