Home > Products > Steel bar connecting device > Rebar Upsetting Machine Easy Installation
Rebar Upsetting Machine Easy Installation
- 500 Set / Sets per Month
- SHANGHAI/QINGDAO/NINIGBO
- T/T L/C D/P D/A Credit Card PayPal
-
high quality Cr-V joint impact sockets
-
3/8" Dr Good quality socket wrench
-
Flexible Packing Foil, Double Zero aluminum foil
-
blister packaging pills foil, double light foil, 8011 aluminum foil
-
gutkha paper, aluminum foil for distributors, pharmaceutical foil
-
aluminum foil for distributors, pharmaceutical foil
Product Details
| Place of Origin: | Henan, China | Brand Name: | XUGONG | ||
| Model Number: | Two Cylinder Upsetting Machine | Voltage: | 380V, 380V 3ph | Power(W): | 7.5kw |
| Dimension(L*W*H): | 1100*700*1580mm | Weight: | 920kg, 920kg | Certification: | ISO |
| Warranty: | 1 Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Rebar Upsetting Machine Easy Installation
1, high joint strength, it can play 100% steel tensile, compressive strength, to meet the Chinesestandard (JGJ1072010), American
standard (USB, 1997), British standard (BS8110)), Taiwan (560) (CNS) and other relevant standards at home and abroad to come.
2, the operation is simple, do not need professional technicians, field connection speed.
3, high production efficiency, can produce 300-500 per machineteam wire head and prepared ahead of time, no time limit for a project.Environmental protection, safety, economy, less investment, low cost.
Technical parameters
Processing reinforcement range | φ16 - φ32 |
Main motor power | 7.5 kw |
Rated power | 380 v, 50 hz |
The hydraulic oil | 68 # anti-wear hydraulic oil |
Maximum working pressure | 31.5 Mpa |
Weight | 880kg |
Dimension | 705*1100*150mm |

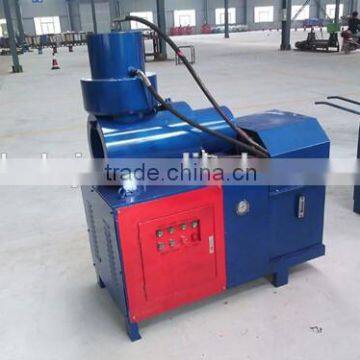

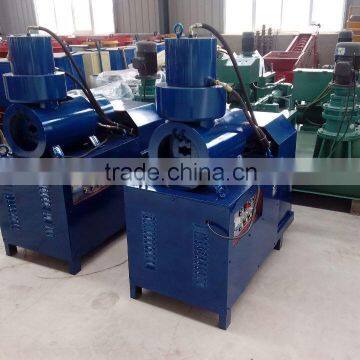

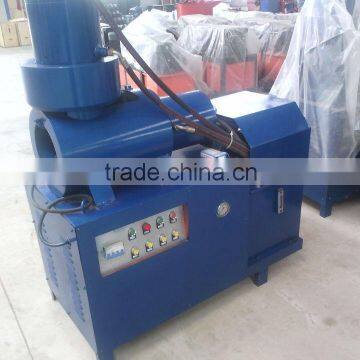

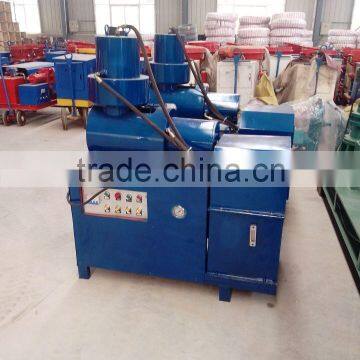

Pls Check Photo
Workshop Show

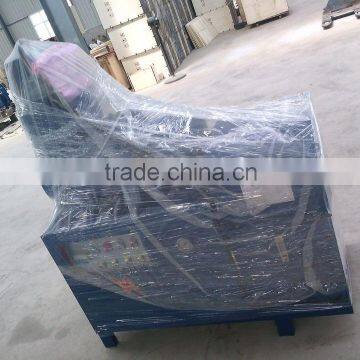

packing show
What can we do for you?
1. We can change the color according to your actual requirements.
2. Customize the voltage motor based on your country standard.
3. Choose different wheels according to your needs.
