Air chipping hammer jack hammer blacksmith power air hammer
Product instruction
The air forging hammer is easy operation ,flexible movement and convenient to transit ,
installation ,maintenance ,the type is widely used for various of free forging works ,
such as drawing out ,upsetting ,punching ,chiseling .forging welding ,bending and twisting .
It is also used for open die forging in bolster dies.Air power forging hammer C41 series blacksmith hammer
it is suitable for free forging works of all kinds of different shape parts ,
especially suitable for village township enterprise and self-employed forge small agriculture tools .
For example sickle ,horseshoes ,Spike ,hoe etc .Air power forging hammer C41 series blacksmith hammer
At the same time ,the industrial enterprise use the air hammer to forge the steel ball ,
scaffold and many other factories and mines ,construction supplies .
In addition the series air hammer is very commonly professional blacksmith's iron tools
that can install all kinds of mould to forge a variety iron flowers ,birds and other beautiful decoration.
Technology Parameter
Model |
C41-25 |
C41-40 |
C41-75 |
|
Nominal Dropping Weight (KG) |
25 |
40 |
75 |
|
Hit Energy (KJ) |
0.27 |
0.53 |
1 |
|
Hits Per Minute |
250 |
245 |
210 |
|
Hit Stroke (MM) |
240 |
245 |
297 |
|
Material Size (MM) |
Square Bar |
40x40 |
52x52 |
65x65 |
Round Bar |
48 |
68 |
85 |
|
Motor Power (KW) |
3 |
4 |
7.5 |
|
Standard Voltage |
380V 50HZ 3PHASE; Other voltage or frequency on request |
|||
Weight (KG) |
720 |
860 |
2500 |
|
Dimension (MM) |
1100x500x1300 |
1400x600x1500 |
1480x800x1853 |
|

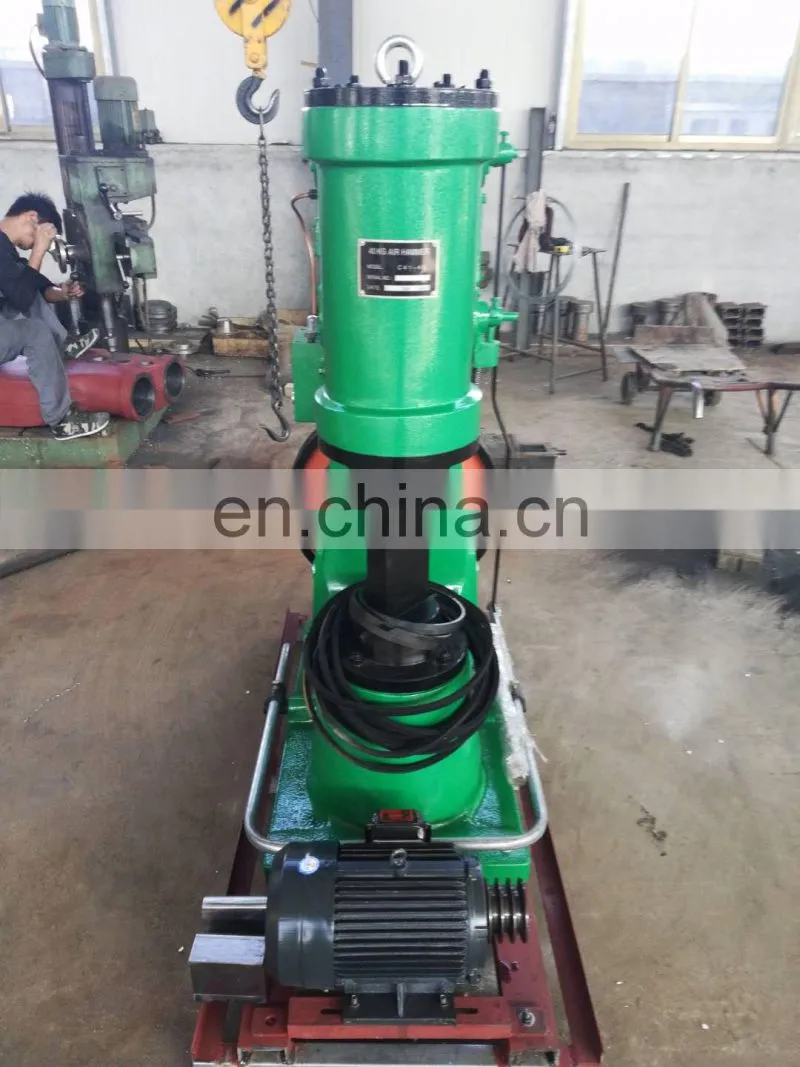

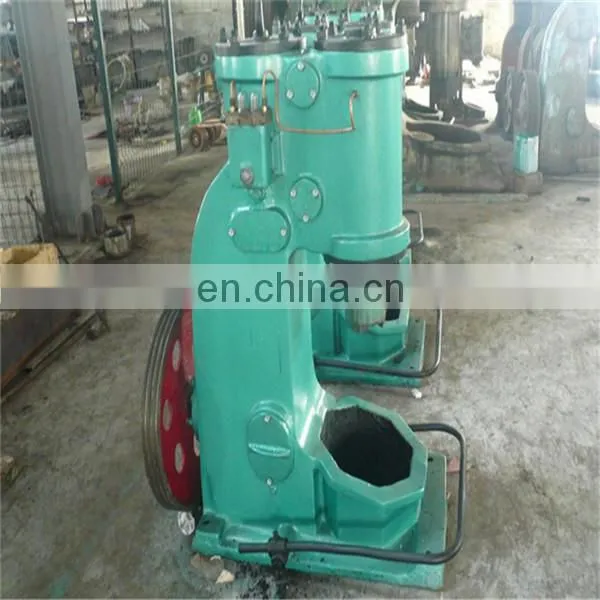

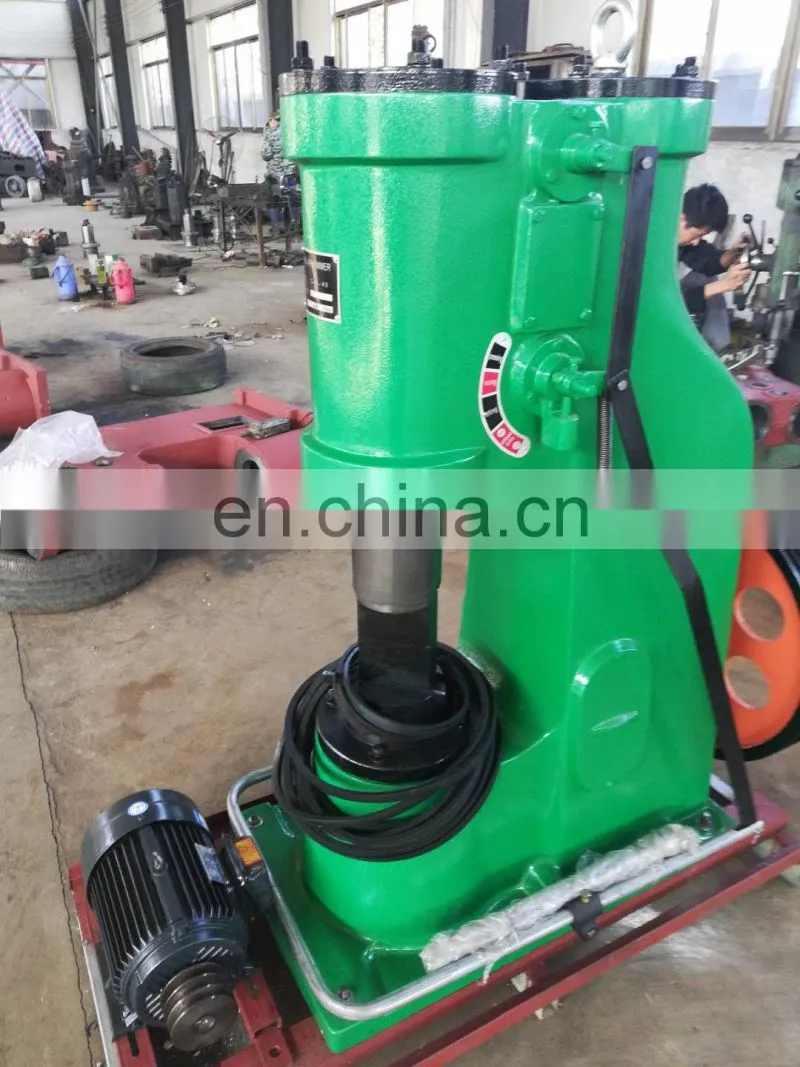

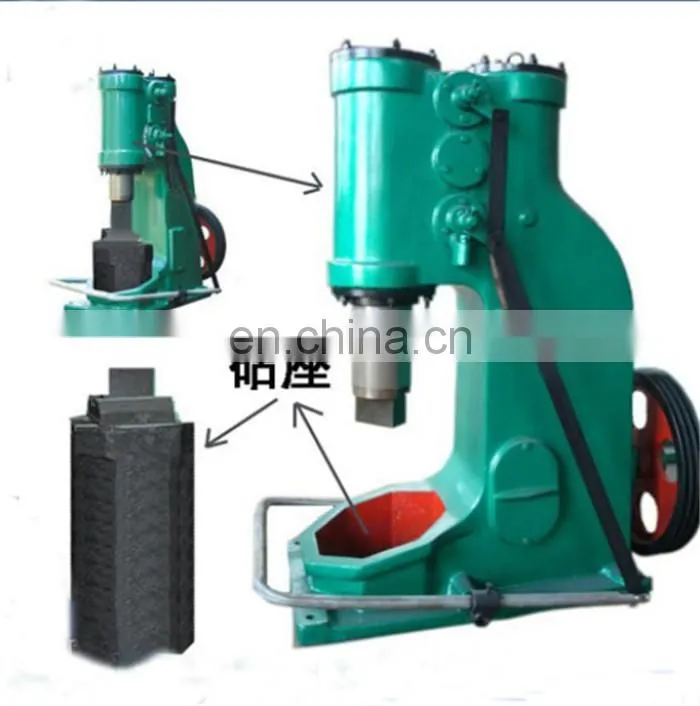

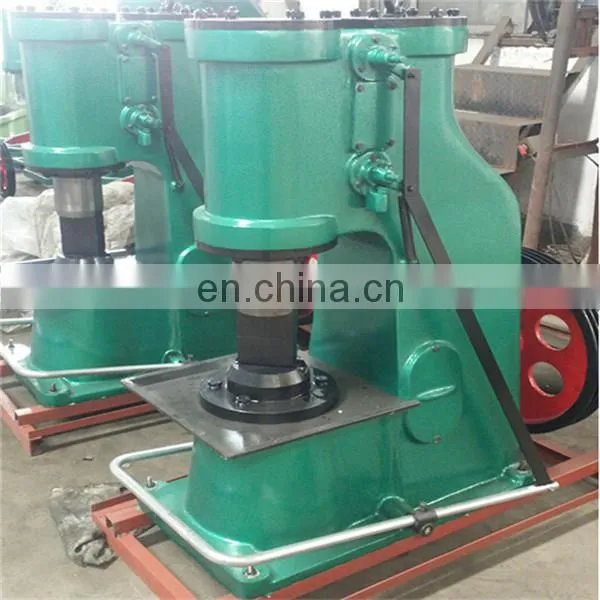

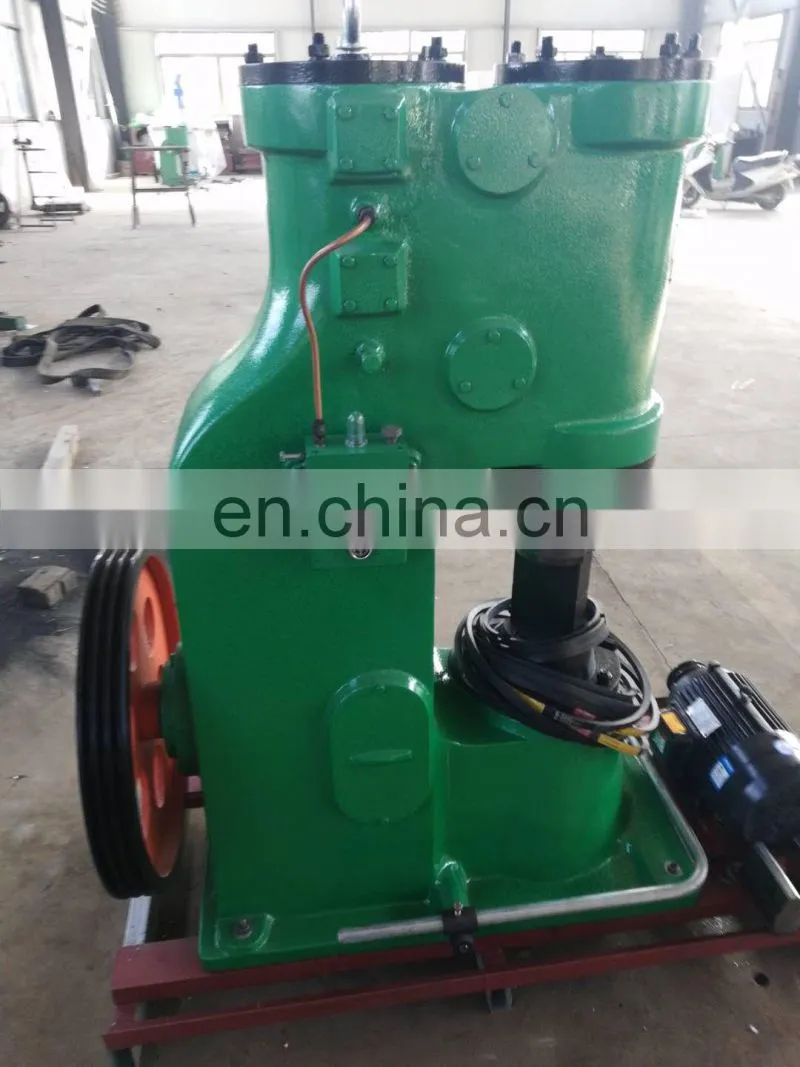

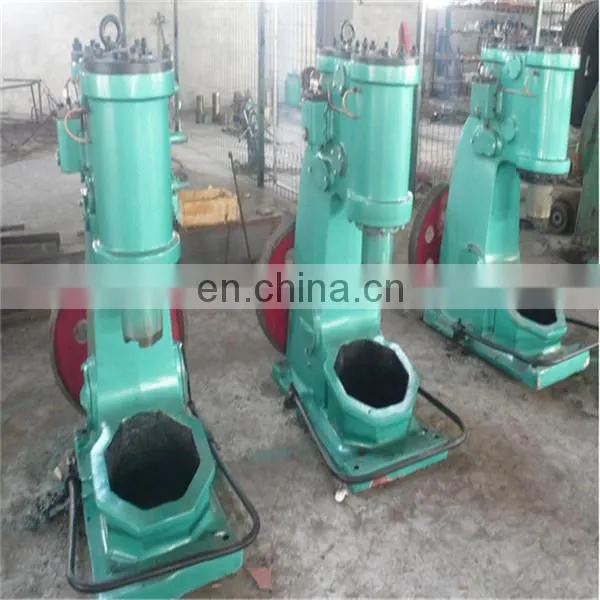

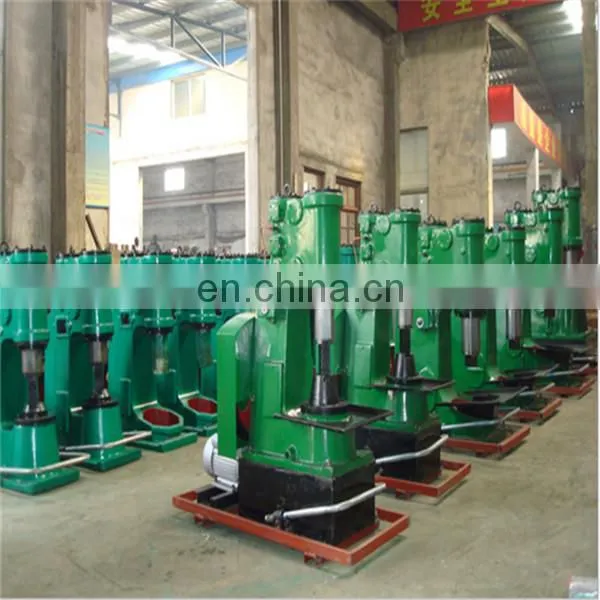

Product Real Photos
