impact hammer crusher
Our PE series impact hammer crusher is typically designed to crush various ores whose granularity is no more than 500mm and compressive strength no less than 350 MPa, like granite, limestone, basalt, and more. And it can be widely used in a large variety of fields, such as water and electricity, expressway, railway, artificial dinas, construction, etc.
Working principle
The shape of this kind of crusher is cubic, and its discharging particle size is adjustable. It features high crushing ratio, high efficiency, energy saving, easy maintenance, and so on.
The working principle of this machine is as follows: rotor rotates rapidly driven by the motor. When materials enter into the crusher, they will be broken by impacting the hammer and lining plates again and again until they are discharged out via the discharge hole.
Impact hammer crusher composition:
1. impact plate
2. back rack
3. liner
4. feeding port
5. base
6. rotor rack
7. board hammer

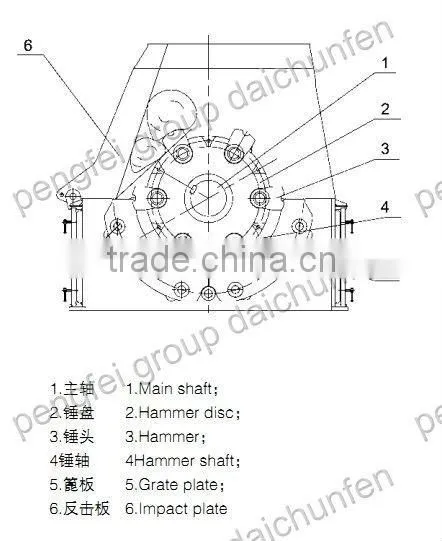

Simple drawing of impact hammer crusher
Technical parameters of impact hammer crusher
| Model | Size mm | Feed opening mm | Max. feed size mm | Capacity t/h | Motor Power kw | Weight(excluding electric motor)t |
| PF-0607 | 644x740 | 320x770 | 100 | 15-25 | 30 | 4 |
| PF-0807 | 850x700 | 400x730 | 300 | 25-35 | 30-45 | 8.13 |
| PF-1007 | 1000x700 | 400x730 | 300/600 | 37-45 | 30-55 | 9.5 |
| PF-1010 | 1000x1050 | 400x1080 | 350/600 | 50-80 | 55-75 | 13.2 |
| PF-1013 | 1000x1300 | 650x1350 | 400/600 | 80-120 | 90-110 | 12 |
| PF-1210 | 1250x1050 | 400x1080 | 350/600 | 70-120 | 110-132 | 15.2 |
| PF-1214 | 1250x1400 | 400x1080 | 350/600 | 130-180 | 132-160 | 20 |
| PF-1310 | 1300x1050 | 490x1170 | 400/650 | 70-120 | 110-160 | 13.5 |
| PF-1315 | 1320x1500 | 860x1520 | 500/650 | 150-220 | 180-220 | 20.5 |
| PF-1320 | 1320x2000 | 860x1520 | 500/650 | 160-250 | 180-260 | 19 |
| PF-1515 | 1500x1500 |
850x1580 | 550/700 | 220-280 | 280-315 | 29.5 |
