Help CenterWide Mouth Plastic Jars Blow Molding Machine in Taizhou From YF-S5
Related Products
-
Wide Mouth Plastic Bottle Blow Molding Machine Price in Taizhou From YF-S55US$ 10,480 - 16,935MOQ: 1 Set -
Pet Jar Making Machine Made in China Taizhou FromNegotiableMOQ: 1 Set
-
Plastic Water Bottle Blow Molding Machine Price in Taizhou From YF-S500US$ 8,100 - 29,000MOQ: 1 Set
-
2.5 Liter Water Bottle Blow Molding Machine Price in Taizhou From YF-S25US$ 4,000 - 320,000MOQ: 1 Set
-
Extrusion Blow Molding Machine in Huangyan Taizhou From YFUS$ 3,300 - 322,580MOQ: 1 Set
1,Our Industry Advantage:
(1) PP/PE/PVC/PC/AS/PET/PET-G;
(2) Products of volume: 30ml-1000L;
(3) 1 year warranty;
(4) 20 years experience
(5) After-sales Service Provided: Engineers available to service machinery overseas
(6) All machine for Hydraulic system
(7) Many patent certificates
(8) More than 1000pcs different samples
(5)Screw diameter :50mm;55mm,65mm,70mm,80mm,90mm,100mm,120mm,130mm etc.
(6) L/D: 23:1; 25:1; 28:1, 30:1
(7) Sales to more than 30 countries
(8) From 1-3 layers
wide mouth plastic jars blow molding machine in taizhou

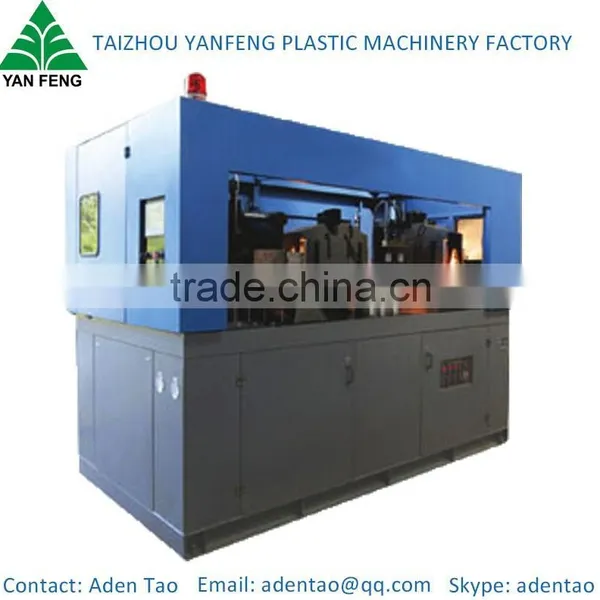

2, YF-S5 wide mouth plastic jars blow molding machine-For Max.80MM
Features
1. Produce bottle from 50MM to 80MM (From one cavity to two cavities)
2. Output capacity up to 600-800 pcs/h for one cavity; 1100-1300pcs/h for two cavities;
3. Advanced PLC control system with a use-friendly panel and time-control precision of PLC up to 0.05second
4. Equipped with special designed air storage unit
5. Using Infrared preform heater
6. Independent Temperature Control for different heating lamp to get ideal preform heating results
7. Heating lamps are adjustable in directions to suit various preforms.
8. Operated only by one person without special training.
9. Simple installation & startup adjustment.
10. Waste rate of finished bottle is less than 0.3%

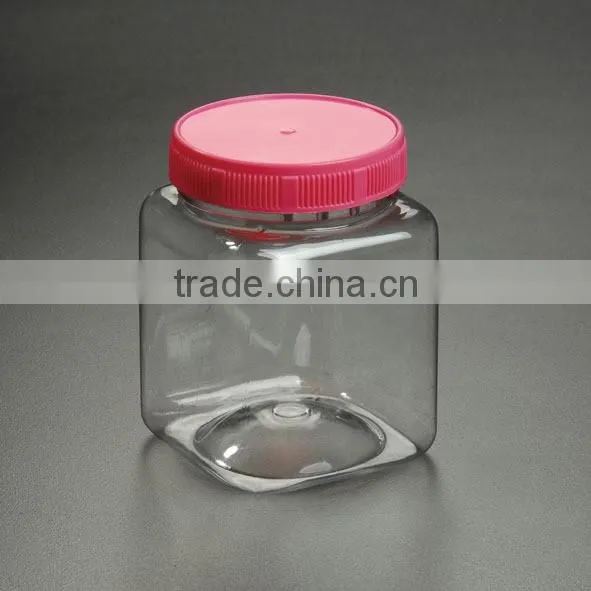

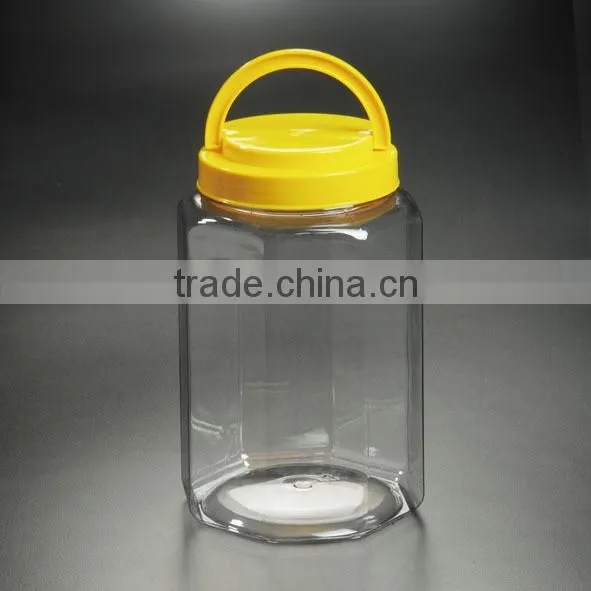

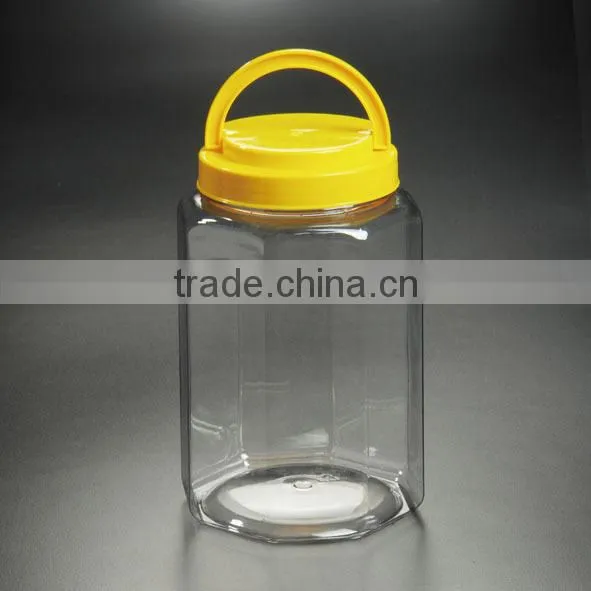

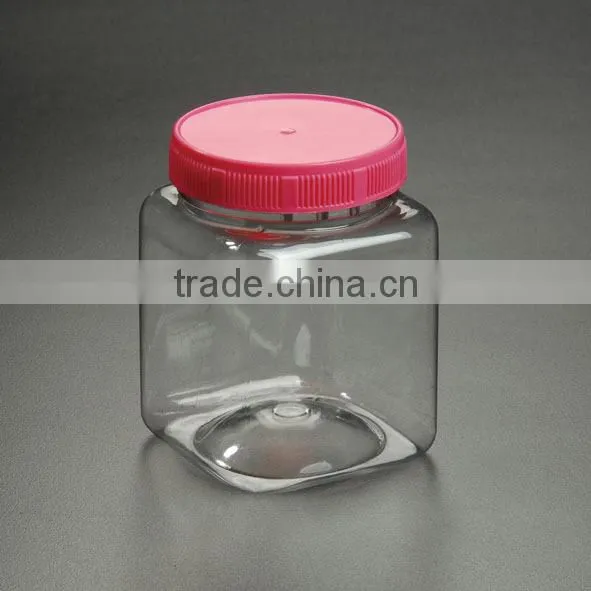

Containers/Samples
3, Technical specification
wide mouth plastic jars blow molding machine
item |
YF-S5-1 |
YF-S5-2 |
cavities |
1 |
2 |
container volume |
80MM |
80MM |
clamping stroke |
170mm |
170mm |
mold thickness |
180mm |
180mm |
stretching stroke |
360mm |
3600mm |
output |
600-800bph |
1100-1300bph |
container diameter |
80-165mm |
80-165mm |
container height |
50-380mm |
50-380mm |
neck range size |
50-120mm |
50-100mm |
Total power |
14kw |
24kw |
use power |
7kw |
12kw |
working power |
8bar |
8bar |
blow pressure |
30bar |
30bar |
low air consuming |
0.7m3/min |
1.2m3/min |
air consuming |
1.0m3/min |
1.5m3/min |
water consuming |
16-25L/min |
20-30L/min |
size |
2.0*2.0*1.9 |
3.6*2.0*1.9 |
weight |
1400kg |
2000kg |
Gate of Factory
Sample Room
Meeting Room
Reception Room
Extrusion blow moulding machine
PET blow moulding machine
Samples
