Plastic Medicine Bottle Extrusion Making Machine Price in Taizhou From YF-50

Plastic Medicine Bottle Extrusion Making Machine Price in Taizhou From YF-50 thumbnail-1
Plastic Medicine Bottle Extrusion Making Machine Price in Taizhou From YF-50 thumbnail-2
Plastic Medicine Bottle Extrusion Making Machine Price in Taizhou From YF-50 thumbnail-3
Plastic Medicine Bottle Extrusion Making Machine Price in Taizhou From YF-50 photo-1
Plastic Medicine Bottle Extrusion Making Machine Price in Taizhou From YF-50 photo-2
Plastic Medicine Bottle Extrusion Making Machine Price in Taizhou From YF-50 photo-3
US$ 14,000 - 16,130 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Bottle
Plastic Processed:
PE
Contact Supplier Request Quote Chat Now
Zhejiang Huangyan Yanfeng Machinery Manufacturing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Bottle
Plastic Processed PE
Blow Moulding Type Extrusion Blow Moulding
Automatic Yes
Place of Origin Zhejiang, China
Brand Name YANFENG
Model Number YF-50
Voltage 220-380v; 3 phase; 50-60HZ
Power(W) 5.5KW
Dimension(L*W*H) 2640*1380*1780mm
Weight 1.5T
Certification CE;I SO9001; SGS
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

1,Our Industry Advantage:

(1) PP/PE/PVC/PC/AS/PET/PET-G;

(2) Products of volume: 30ml-1000L;

(3) 1 year warranty;

(4) 20 years experience

(5) After-sales Service Provided: Engineers available to service machinery overseas

(6) All machine for Hydraulic system

(7) Many patent certificates

(8) More than 1000pcs different samples

(5)Screw diameter :50mm;55mm,65mm,70mm,80mm,90mm,100mm,120mm,130mm etc.

(6) L/D: 23:1; 25:1; 28:1, 30:1

(7) Sales to more than 30 countries

(8) From 1-3 layers





plastic medicine bottle extrusion making machine price in taizhou

Product Description

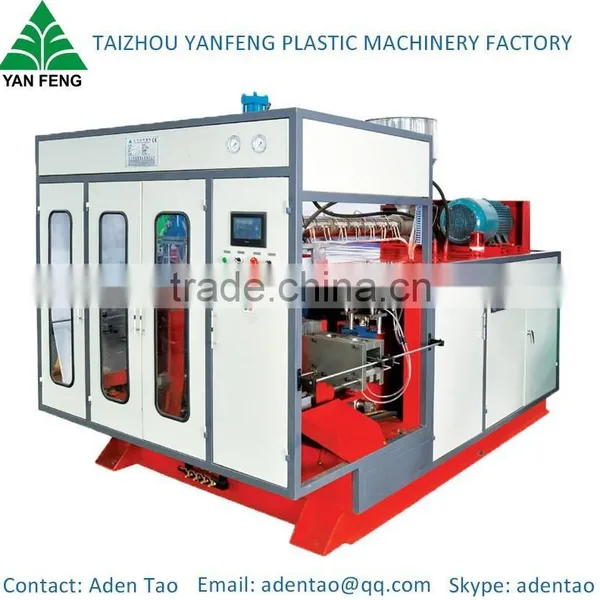

2, YF-50 Double stastion blow moulding machine with Hydraulic system-For Max. 500ML

plastic medicine bottle extrusion making machine price in taizhou from YF-50





3, Main characteristic

(1)    Double process with From single-four Die-heads

(2)    Max. 500ML

(3)    Hydraulic system

(4)    Max. 2800pcs/h (for 50ml)

(5)    220-380V; 3 phase; 50-60HZ (Custom Made)

(6)    50mm Diameter of screw; L/D:22:1

(7)    1 Year warranty



4, Technical specification



Model

YF- 50

Suitable Materials

PE, PP, AS...

Theoretical Output

Depend on bottle design

Max. 2800 pcs(for 50ml)

Max. Product Volume

1cavity/2/3/4

500ML/250/200/30

Die Head Amount

Piece

1/2/3/4

Work Station Amount

Piece

2

Extrusion Unit

Screw Diameter

50mm

Screw L/D Ratio

25:1L/D

Screw Speed

10-75 r/min

Plasticizing Capacity

35kg/h

Mould Unit

1 Cavity 2 Sets or

2cavity2sets

1 cavity 2 sets  or  2cavity2 sets

Max. Bottle Diameter

70mm

Mould Thickness

60 -110mm

Mold  Board  Stroke

110mm

Clamping Force

35 KN

Power Unit

Electrical Source

220~380V,3phase,50-60Hz

Heating Power

6 KW

Motor

5.5 KW

Average Energy Consumption

8 KW

Air Pressure

0.6 MPa

Machine Size

L*W*H

2800*1850*2300mm

Machine Weight

2500kg

Auxiliary Equipments

Low Pressure Air Compressor  1 Set   (requisite)

1.0m3 /1.0Mpa/15KW

crusher machine 1Set   (optional)

50

Mixing machine  1Set   (optional)

50





5, Parts and Brand for your reference



Item

Brand

Country

Oil Pump

YUKEN

Japan

Control switch

MITSUBISHI PLC

Japan

The contactor

Schneider Electric

France

Reversing valve

DUPLOMATIC

Italy

Proportioning valve

SMC

Japan

oil valve

YUKEN

Japan

Touch screen

PROFACE

Japan

PLC

MITSUBISHI

Japan

Inverter

INVT

Taiwan

Temperature

OMRON

Japan

Valve

ATOS

Italy



6, Main part pictures









Company Information



Gate of Factory





Sample Room



Meeting Room



Reception Room





Our machines and samples



Extrusion blow moulding machine

plastic medicine bottle extrusion making machine price in taizhou from YF-50



PET blow moulding machine

 plastic medicine bottle extrusion making machine price in taizhou from YF-50



Samples
