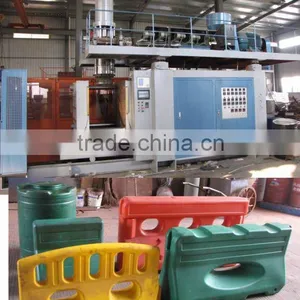

Help CenterAutomatic Extrusion Blow Moulding Machine Drum Road Barrier
Related Products
-
Machine Makes Plastic PontoonUS$ 25,000 - 660,000MOQ: 1 Set -
Blow Molding Machine Zk-135B Makes Children Plastic PlaygroundUS$ 25,000 - 660,000MOQ: 1 Set
-
1000L Machine Makes Road BarrierNegotiableMOQ: 1 Set
-
Mannequin Bust Model MouldNegotiableMOQ: 1 Set
-
Plastic Kid Bed- Blow Molding MachineUS$ 2,500 - 600,000MOQ: 1 Set
Specifications
automatic extrusion blow moulding machinewater storage tank,drum,tank,toy,chair,automobile part,barrel
accumulator die...
automatic extrusion blow moulding machine
PE PP EVA PS extrusion blow moulding machine
Hollow plastics blow moulding machine can produce all kinds of PE Container, PP Container, ABS Container, PC Container. likes oil buckets, toolbox, chairs, desks and so on.
More information contact us !
Main Features
The series include ZK120B.They can be used to produce various hollow plastic products,volume up to 220ltr such as jerry cans, gas tank, child safety chair, bus chair, drum, barrel, automotive parts ,tool box and so on.
1) Clamping device: three bars construction, good rigidity, the space for mold is generous and mold changing is easy.
2) Die head: Adopt the principle "first in, first out" to keep even thickness of parison and high surface quality.
3) Operation is easy; servicing is convenient, with a high degree of automation.
The ZK series is composed of clamping device, die head, extrusion system, hydraulic system, framework, cooling system, electric control system and so on.There are robot, multifunctional bottom blowing device, parison controller, mechanical ejection,and hydraulic ejection that can be selected by customers.
specification |
unit |
zk-120B |
max container capacity |
L |
220 |
machine dimension(L*W*H) |
M |
7.5*3.2*5.1 |
total weight |
ton |
22 |
clamping unit |
|
|
clamping force |
KN |
1200 |
platen opening stroke |
mm |
600-1600 |
max mould size(W*H) |
mm |
1200*1600 |
mould thickness |
mm |
610-850 |
power |
|
|
max drive |
KW |
22 |
total power |
KW |
175 |
fan power for screw |
KW |
0.72 |
air pressure |
Mpa |
0.7 |
air consumption |
m3/min |
0.9 |
average energy consumption |
KW |
55 |
extruder unit |
|
|
screw diameter |
mm |
120 |
screw L/D ratio |
L/D |
28:1 |
plasticizing capacity |
kg/hr |
280 |
number of heating zone |
zone |
6 |
extruder heating power |
KW |
35 |
extruder driving power |
KW |
75 |
accumulator head |
|
|
number of heating zone |
zone |
6 |
power of die heating |
KW |
50 |
max die-pin diameter |
mm |
600 |
accumulator volume |
L |
30 |
