Specifications
extrusion blow molding machine ZK-100Bcan make barrel,drum,auto exhaust duct,plate,baby safe seat etc
capacity:100L

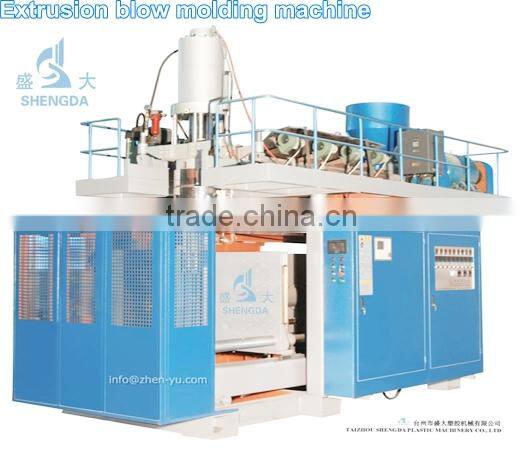

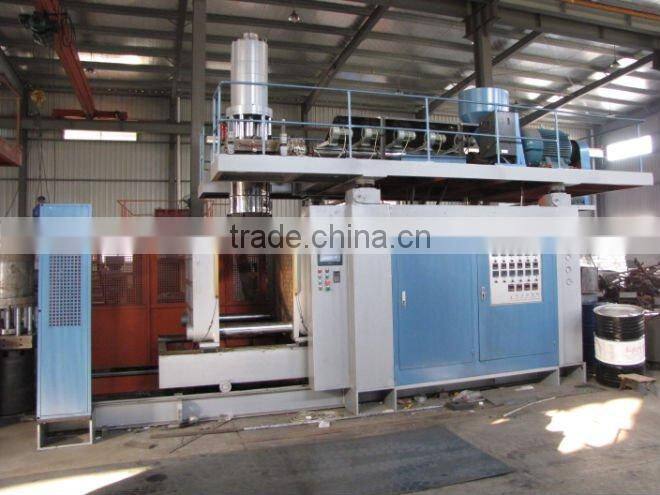

extrusion blow molding machine ZK-100B

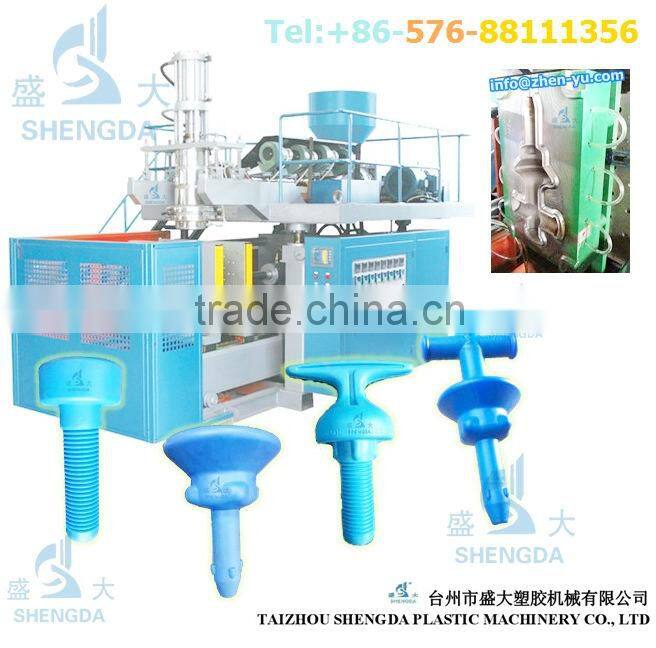

we are a professional manufacturer of blow molding machines.which can make various plastic products. from 1L-1000L, like jerry cans, gallons, chemical drum, barrel, toy, bus seat chair,massage chair, mannequins, baby safe chair,fuel tanks, automotive parts etc plastic hollow blow molding parts.
good quality and best price, can make the needs of customers.
Features:
1) Controlled by Japanese PLC
2) Temperature controlled model
3) Interactive monitor with machine-human interface
4) Imported hydraulic elements
5) Proportional control
6) Imported electric elements
7) Hard gear surface reducer
8) Accumulator head with special steel
9) Vicker hydraulic valve, seal and proportional control
10) Japan PLC+ Taiwan human machine interface +software in touch type +famous brand electric elements
following is the technical specifications:
specification |
unit |
zk-100B |
max container capacity |
L |
100 |
number of die heads |
set |
1 |
machine dimension(L*W*H) |
M |
6.5*3.3*4.2 |
total weight |
ton |
13 |
clamping unit |
|
|
clamping force |
KN |
400 |
platen opening stroke |
mm |
400-1200 |
max mould size(W*H) |
mm |
900*1200 |
mould thickness |
mm |
410-600 |
power |
|
|
max drive |
KW |
11 |
total power |
KW |
85 |
fan power for screw |
KW |
0.72 |
air pressure |
Mpa |
0.7 |
air consumption |
m3/min |
0.9 |
average energy consumption |
KW |
38 |
extruder unit |
|
|
screw diameter |
mm |
100 |
screw L/D ratio |
L/D |
25:1 |
plasticizing capacity |
kg/hr |
160 |
number of heating zone |
zone |
4 |
extruder heating power |
KW |
20 |
extruder driving power |
KW |
37 |
accumulator head |
|
|
number of heating zone |
zone |
5 |
power of die heating |
KW |
18 |
max die-pin diameter |
mm |
400 |
accumulator volume |
L |
15 |
