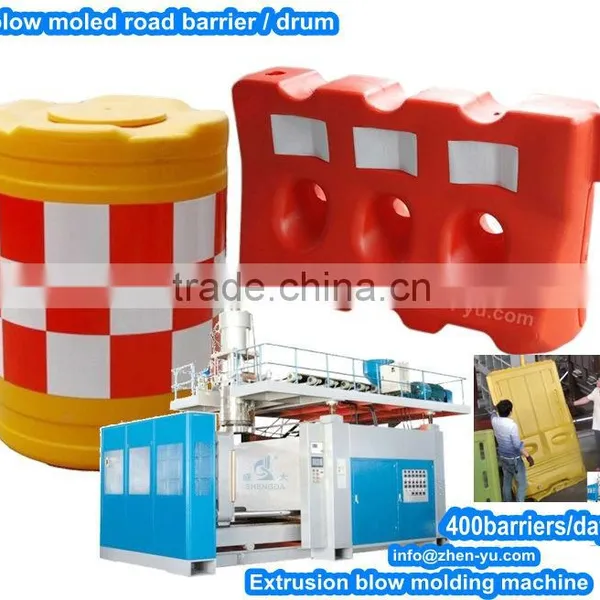

extrusion blow molding machine
en plastique machine de moulage par soufflage ZK-90B (machine d'extrusion soufflage)

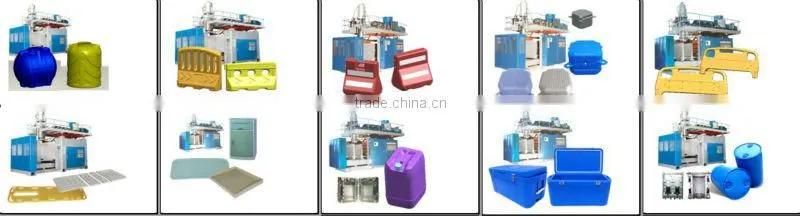

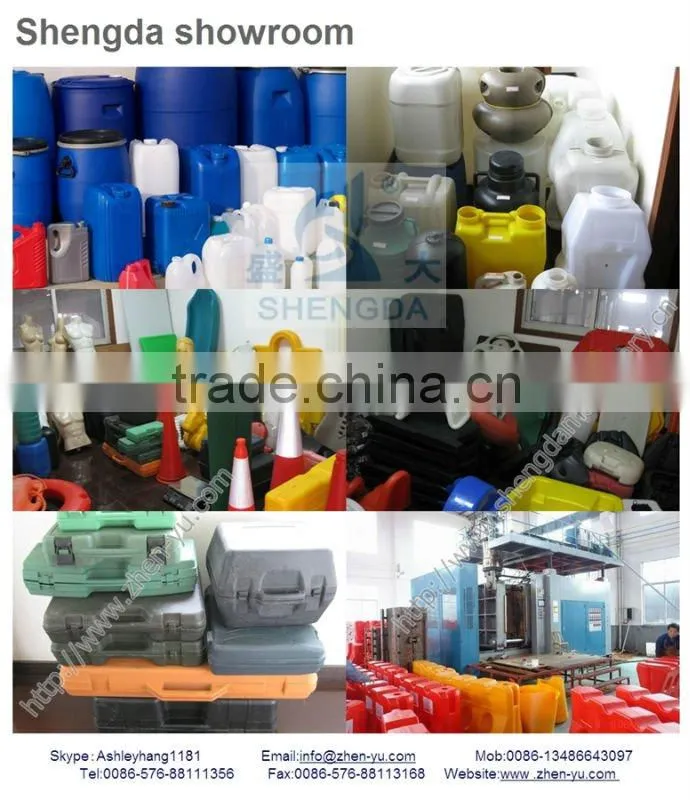

This model adopts fixed mould open-closing system and accumulator die. Parison programmer is available to control thickness. This model is automatic process with low noise, saving energy, high efficiency, safe operation, easy maintenance and other benefits. This model is widely used to produce chemical barrel, auto parts(water reservoir, fuel tank, baby car seat, spoiler),huge toys, tool box, chairs for bus and gymnasium, etc.
Variety of functions for different products matching the technological requirements: bottom blow and lift, rotation, encapsulation, material support, sub-mould, robot, parison control system ,etc.
following is the technical specifications of extrusion blow molding machine ZK-90:

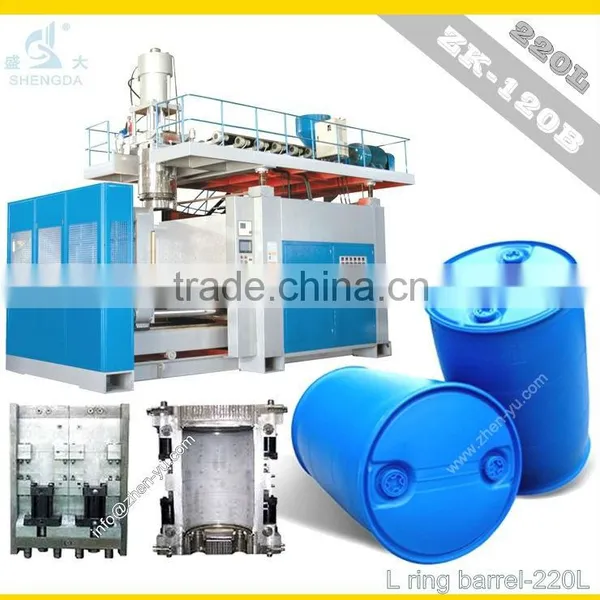

Bigger machine model refer to ZK-100B,ZK-120B,ZK-135B,ZK-150B...
specification | unit | zk-90A | zk-90B |
max container capacity | L | 50 | 60 |
number of die heads | set | 1 | 1 |
machine dimension(L*W*H) | M | 5*3.1*3.2 | 5*3.1*3.9 |
total weight | ton | 7 | 9 |
clamping unit |
|
|
|
clamping force | KN | 300 | 300 |
platen opening stroke | mm | 350-1050 | 350-1050 |
max mould size(W*H) | mm | 700*1000 | 700*1000 |
mould thickness | mm | 360-500 | 360-500 |
power |
|
|
|
max drive | KW | 11 | 11 |
total power | KW | 63 | 70 |
fan power for screw | KW | 0.9 | 0.72 |
air pressure | Mpa | 0.7 | 0.7 |
air consumption | m3/min | 0.9 | 0.9 |
average energy consumption | KW | 28 | 35 |
extruder unit |
|
|
|
screw diameter | mm | 90 | 90 |
screw L/D ratio | L/D | 25:1 | 25:1 |
plasticizing capacity | kg/hr | 100 | 120 |
number of heating zone | zone | 5 | 4 |
extruder heating power | KW | 12.5 | 12.5 |
extruder driving power | KW | 22 | 30 |
accumulator head |
|
|
|
die head dimension | m |
|
|
number of heating zone | zone | 3 | 5 |
power of die heating | KW | 7 | 20 |
max die-pin diameter | mm | 350 | 350 |
accumulator volume | L | 5 | 6 |
more information, contact me!

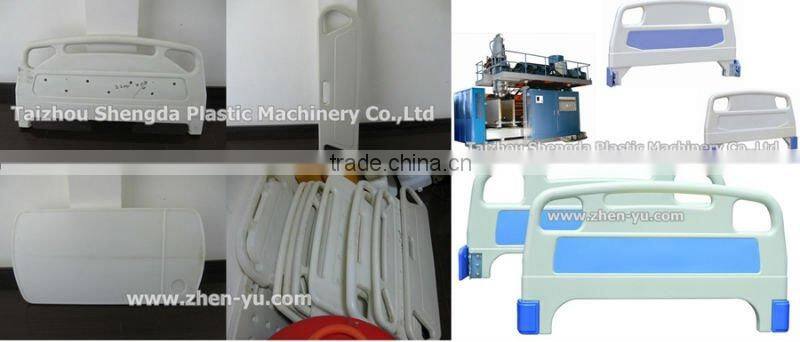

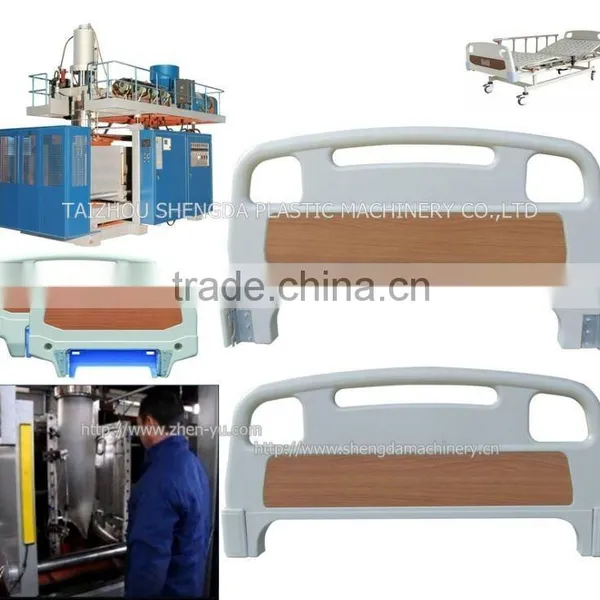

blow molding machine; Blow molding machine; PE blow molding machine;PP blow molding machine;ABS blow molding machine;HDPE blow molding machine; EVA blow molding mahicne; Automatic blow molding machine;Single screw blow molding machine; Double screw blow molding machine;Educational toy house;, medical bed; bed hoard,head board,footboard.
blow molding machine; Blow molding machine; PE blow molding machine;PP blow molding machine;ABS blow molding machine;HDPE blow molding machine; EVA blow molding mahicne; Automatic blow molding machine;Single screw blow molding machine; Double screw blow molding machine;Educational toy house;, medical bed; bed hoard,head board,footboard Plastic water tank; 1000L tank; 500L tank;2000L tank; Septic tank; 60L drum; 220L barriel;50gallon barrel; 20L jerry can; HDPE IBC;
