Longitudinal re-directive barrier Blow Molding Machine Blow Molding Machine -- EMB MACHINE ZK-135B
makes big items as sand filter tank,road block,high fence,children playground...
specification |
unit |
zk-135B |
max container capacity |
L |
500 |
number of die heads |
set |
1 |
machine dimension(L*W*H) |
M |
8*3.6*5.2 |
total weight |
ton |
32 |
clamping unit |
|
|
clamping force |
KN |
1800 |
clamping speed |
m/min |
10 |
platen opening stroke |
mm |
600-1600 |
platen size(W*H) |
mm |
2000*1700 |
mould thickness |
mm |
500-800 |
power |
|
|
max drive |
KW |
30 |
total power |
KW |
250 |
air pressure |
Mpa |
1 |
air consumption |
m3/min |
5 |
extruder unit |
|
|
screw diameter |
m |
135 |
screw L/D ratio |
L/D |
28:1 |
plasticizing capacity |
kg/hr |
320 |
number of heating zone |
zone |
5 |
extruder heating power |
KW |
30 |
extruder driving power |
KW |
63/160 |
accumulator head |
|
|
number of heating zone |
zone |
5 |
power of die heating |
KW |
6 |
max die-pin diameter |
mm |
750 |
accumulator volume |
KG |
40 |
Shengda tells you the background knowledge of extrusion blow molding machine
When it into the case of manufacturing plastic road barricades

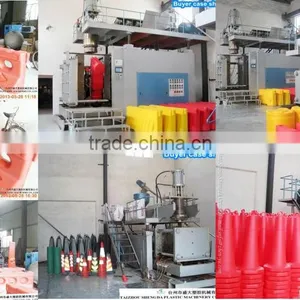

Shengda machinery has been in blow molding industry for over 19 years. Mr.Lin Shengjian, the founder of Shengda machinery built the first set of blow molding machine for making big road barricades in China. –>This triggered the wide and deep revolution in plastic road barricades manufacturing industry in China. Nowadays, the great majority (>70%) of the plastic road barricade manufacturers (by blow molding process) in China are loyal clients and connections of Shengda machinery.
Now, we have 9 models of machine of ZK series for road barricades, they are sized according to the size, weight and desired productivity of the specific road barricade.

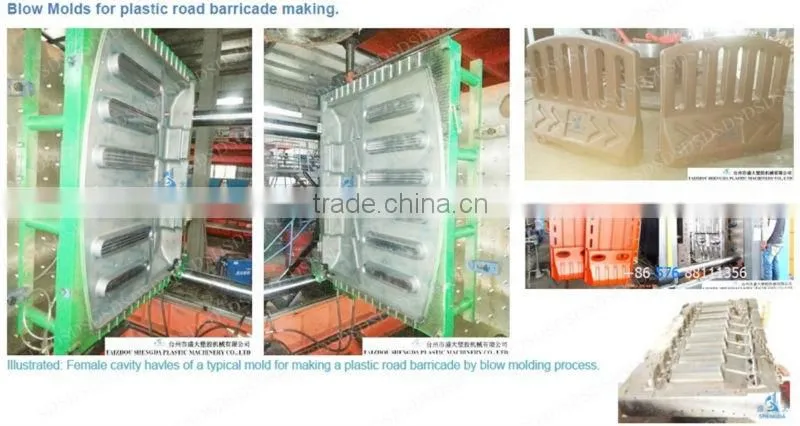

Blow molding is a complex process, a blow molding machine doesn’t work alone by itself. Machine, mold,tooling, auxiliary equipment, materials, additives… all of them are interdependent in processing of converting raw material into desired products.
Though machine builder as us have sufficient project records and proven solutions to refer from, it is still highly suggested to each customer to ensure accuracy and least modifications.
I'm Ashley Huang, in sales position of Shengda for the 4th year. What I can do is not just giving you a machine model, but put our expert team in your position, service you with our technically know-how, resources of industrial in-depth, develop solutions especially for the specific scenario you are in.
