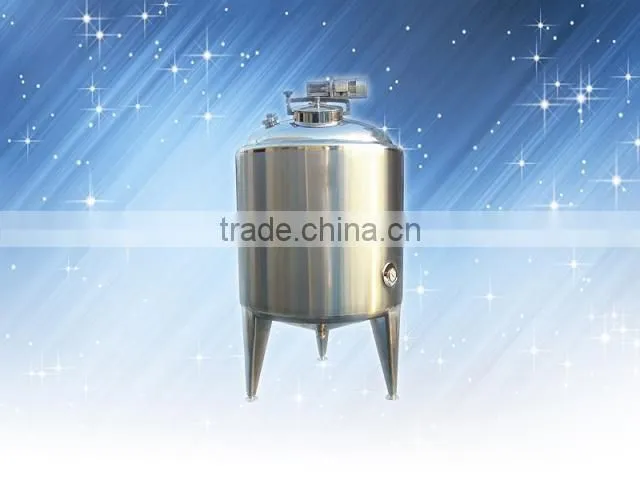

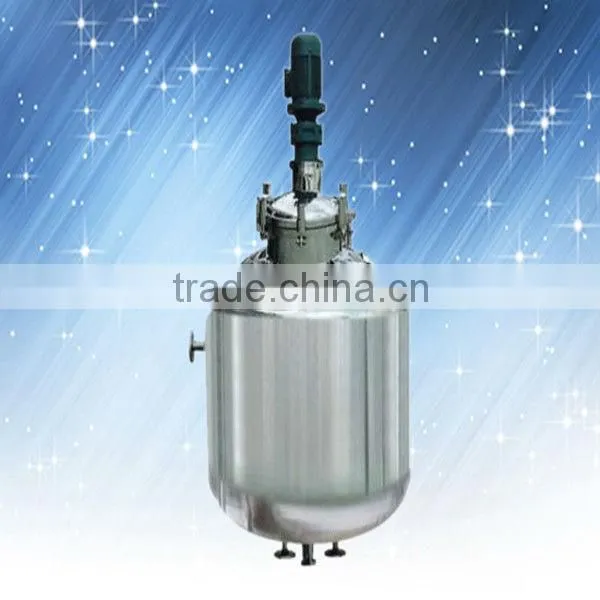

HCRK series container is used in pharmacy , chemical project , fine chemicals and composed chemical industry . The material adopts SUS304 or SUS316L . The pot body has jacket , and the jacket structure is of standard jacket , outer circular pipe jacket and Milo plate honey net jacket to be closed . It can be heated or cooled , inner surface adopts mirror polish , no dead angle , and closed design to ensure material in asepsis condition . The conic tip processed by spinning pressure , up to GMP standard . The agitator adopts sanitary mechanical seal , container insulation adopts polyurethane or alumina silicate , joint adopts ISO standard quick open clamp , sanitary and easy , transferring sledge processed by spinning pressure , outer surface adopts polish , sand-blast , dull polish or cold original color subtopics , so to show the good quality of containers in every occasion . The machine equips with asepsis respirator , CIP cleaning spray tip , sight glass , and flange quick open manhole .
Main technical parameter :
|
Capacity (L) |
Inner diameter (MM) |
Jacket diameter (MM) |
Motor (KW) |
Reducer type |
Mixing sp eed (r.p.m) |
30 |
400 |
500 |
0.6~1.1 |
M2 |
60~85 |
50 |
500 |
600 |
0.6~1.1 |
M3 |
60~85 |
100 |
550 |
650 |
1.1~1.5 |
M4 |
60~85 |
150 |
600 |
700 |
2.2 |
M6 |
60~85 |
200 |
650 |
750 |
2.2 |
M6 |
60~85 |
300 |
800 |
900 |
2.2 |
M6 |
60~85 |
500 |
900 |
1000 |
2.2 |
M6 |
60~85 |
800 |
1100 |
1200 |
4 |
M8 |
60~85 |
1000 |
1200 |
1300 |
4 |
M8 |
60~85 |
1500 |
1300 |
1400 |
4 |
M8 |
60~85 |
2000 |
1400 |
1500 |
4 |
M8 |
60~85 |
2500 |
1400 |
1500 |
7.5 |
BLB7.5-4-13 |
90 |
3000 |
1400 |
1500 |
7.5 |
BLB7.5-4-13 |
90 |
3500 |
1400 |
1500 |
7.5 |
BLB7.5-4-13 |
90 |
4000 |
1500 |
1600 |
7.5 |
BLB7.5-4-13 |
63 |
5000 |
1600 |
1700 |
7.5 |
BLB7.5-4-13 |
63 |
6000 |
1800 |
1900 |
15 |
BLB7.5-4-13 |
100 |
8000 |
2000 |
2100 |
15 |
BLB7.5-4-13 |
100 |
32000 |
3000 |
3200 |
37 |
BLB450-11-45 |
50~100 |
