Specifications

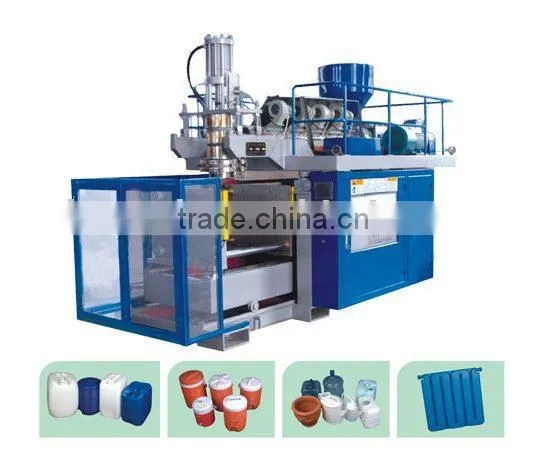

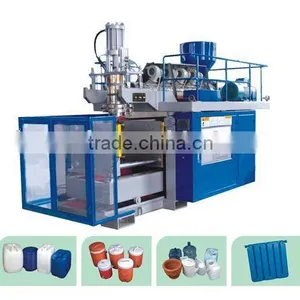

plastic blowing machineplastic hollow blowing machine
competitive price,high quality
Extrusion blow molding machine.
blow molding machine.hollow blowing machine.
plastic blowing machine
good quality and best price, can make the needs of customers.
Features:
1) Controlled by Japanese PLC
2) Temperature controlled model
3) Interactive monitor with machine-human interface
4) Imported hydraulic elements
5) Proportional control
6) Imported electric elements
7) Hard gear surface reducer
8) Accumulator head with special steel
9) Vicker hydraulic valve, seal and proportional control
10) Japan PLC+ Taiwan human machine interface +software in touch type +famous brand electric elements
following is the technical specifications:
|
technical parameters |
|
ZK-70 |
|
specification |
unit |
|
|
max container capacity |
L |
20 |
|
machine dimension |
M |
4*2.6*2.7 |
|
total weight |
ton |
4.5 |
|
clamping system |
|
|
|
clamping force |
KN |
160 |
|
plate opening stroke |
mm |
250-800 |
|
max mould size(W*H) |
mm |
480*500 |
|
mould thickness |
mm |
250-400 |
|
power |
|
|
|
max drive |
KW |
7.5 |
|
total power |
KW |
40 |
|
fan power for screw |
KW |
0.18 |
|
air pressure |
Mpa |
0.7 |
|
air consumption |
m3/min |
0.9 |
|
average energy consumption |
KW |
20 |
|
extruding system |
|
|
|
screw diameter |
mm |
120 |
|
screw L/D ratio |
L/D |
25:1 |
|
plasticising capacity |
kg/hr |
60 |
|
number of heating zone |
zone |
4 |
|
extruder heating power |
KW |
10 |
|
extruder driving power |
KW |
11 |
|
die head |
|
|
|
number of heating zone |
zone |
3 |
|
power of die heating |
KW |
4 |
|
max die-pin diameter |
mm |
250 |
|
accumulator capacity |
ML |
2000 |
