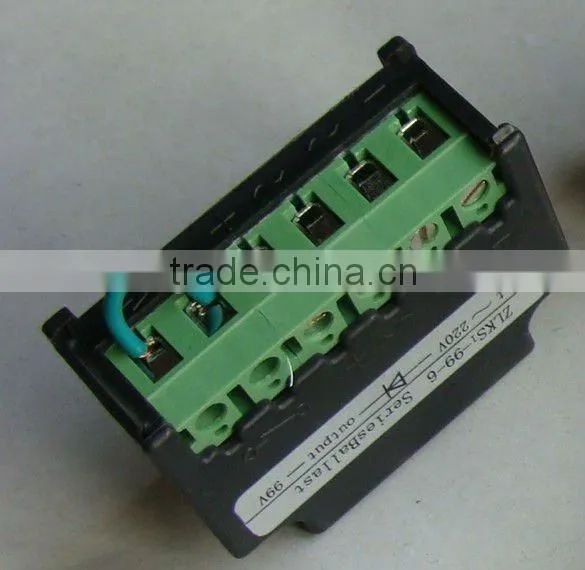

Help CenterFactory Direct Supply Fast Half Wave Rectifiers Bridge
Related Products
First, the characteristics and uses
ZL series with a small power rectifier, a good seal for motor YEJ standard working environment can be installed directly in the electric wiring inside the box; with the input and output protection circuits for devices such as brakes, and other high-frequency inductors at work.

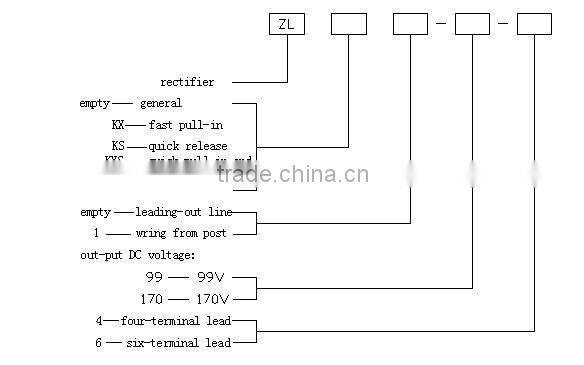

Second, ZL Series Model Rectifier power and meaning:
Third, the use of attention:
1, according to the DC electromagnetic brake (clutch) of direct current voltage choose the right specifications of the power rectifier.
2, AC input voltage power line must be rectified if the 380V AC voltage from 220V AC input voltage power rectifier Rectifier's power will result in serious damage to the contrary would have the power rectifier does not work.
3, AC input voltage fluctuation permitted in the rating of -15% to +5%.
4, wiring must be standardized, reliable connections must be strong, post-not thread ends are connected Maotou, exposed some of the not more than 2 millimeters, it will not allow the skin to insert wire connection to the hole; Lead-wire connection, interconnection The difference between the two wires cross-section not too large joints must be wrapped with insulation adhesive plaster for a more moist places to be wrapped with yellow wax.
5, ZL rectifier power supply system of electronic products, are not allowed to use Zhaoou table (table shake) or other high-pressure testing equipment to detect the insulation case.
