Home > Electrical & Electronics > Rectifier > Single Phase Bridge Rectifier

Single Phase Bridge Rectifier

Name: Single Phase Bridge Rectifier
Brand: wuhudazhong
SKU: 110872033
Availability: InStock

Single Phase Bridge Rectifier thumbnail-1

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Anhui, China

Brand Name:

wuhudazhong

Model Number:

Contact Supplier Request Quote Chat Now

Wuhu Dazhong Machinery Electric Manufacture Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai and ningbo

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Anhui, China

Brand Name wuhudazhong

Model Number ZL

Type Bridge Rectifier

Application Inverter / Converter

Package Type Surface Mount

Mean On-State Current 2A

Specifications

single phase bridge rectifier are use in brake motor and direct connecting to the ecternal ACvoltage supply
DCvoltage to motor

First, the characteristics and uses
ZL series for DC single phase bridge rectifier electromagnetic brake and clutch electromagnetic DC-specific products, which is converted into AC power will be able to meet the DC or direct current electromagnetic brake electromagnetic clutch DC power needs. Factory production line ZL power rectifier complete specifications, the applicability of the strong, stable, durable.
ZL series rectifier power supply wiring from the form of Lead-and-two post; from the end brought the number of leads and have a four-terminal-side lead to six (six-end leads to facilitate contact with external contactors); from the speed of action There are fast-general and two (of which was divided into fast-rapid pull-in, quick release and pull-in is fast and quick release of three); from the input and output voltage, there 220V AC voltage input, 99V DC output voltage and 380V AC input voltage, 170V DC output voltage of two. This product can achieve output current 2A, to meet the basic kinds of electromagnetic brake and DC-DC electromagnetic clutch.
ZL series with a small power rectifier, a good seal for motor YEJ standard working environment can be installed directly in the electric wiring inside the box; with the input and output protection circuits for devices such as brakes, and other high-frequency inductors at work.

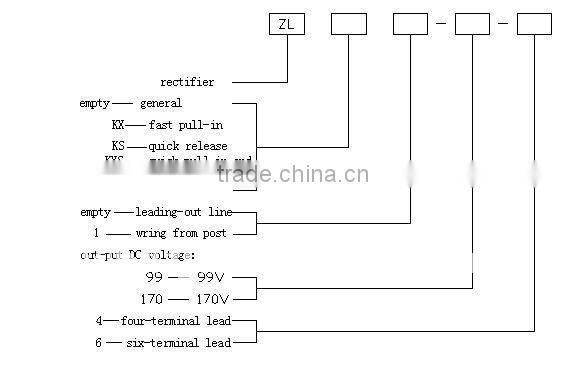

Second, ZL Series Model Rectifier power and meaning:
