50L~220L HDPE barrels making machinefeatured for chemical drums, barrels,jerry cans, up to 220L

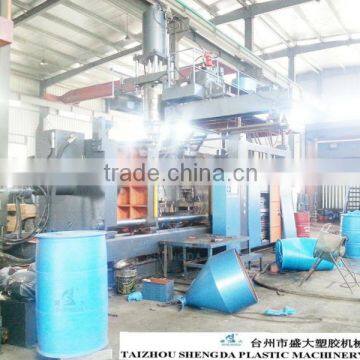

50L~220L HDPE barrels making machine
PE PP EVA PS extrusion blow moulding machine
Hollow plastics blow moulding machine can produce all kinds of PE Container, PP Container, ABS Container, PC Container. likes oil buckets, toolbox, chairs, desks and so on.
More information contact us !
Main Features
The series include ZK120B.They can be used to produce various hollow plastic products,volume up to 220ltr such as jerry cans, gas tank, child safety chair, bus chair, drum, barrel, automotive parts ,tool box and so on.
1) Clamping device: three bars construction, good rigidity, the space for mold is generous and mold changing is easy.
2) Die head: Adopt the principle "first in, first out" to keep even thickness of parison and high surface quality.
3) Operation is easy; servicing is convenient, with a high degree of automation.
The ZK series is composed of clamping device, die head, extrusion system, hydraulic system, framework, cooling system, electric control system and so on.There are robot, multifunctional bottom blowing device, parison controller, mechanical ejection,and hydraulic ejection that can be selected by customers.
specification |
unit |
zk-120B |
max container capacity |
L |
220 |
machine dimension(L*W*H) |
M |
10*3.0*5.3 |
total weight |
ton |
22 |
clamping unit |
|
|
clamping force |
KN |
1200 |
platen opening stroke |
mm |
600-1600 |
max mould size(W*H) |
mm |
1200*1600 |
mould thickness |
mm |
610-850 |
power |
|
|
max drive |
KW |
22 |
total power |
KW |
175 |
fan power for screw |
KW |
0.72 |
air pressure |
Mpa |
0.7 |
air consumption |
m3/min |
0.9 |
average energy consumption |
KW |
55 |
extruder unit |
|
|
screw diameter |
mm |
120 |
screw L/D ratio |
L/D |
28:1 |
plasticizing capacity |
kg/hr |
280 |
number of heating zone |
zone |
6 |
extruder heating power |
KW |
35 |
extruder driving power |
KW |
75 |
accumulator head |
|
|
number of heating zone |
zone |
6 |
power of die heating |
KW |
50 |
max die-pin diameter |
mm |
600 |
accumulator volume |
L |
30 |
) blow molding machine; Blow molding machine; PE blow molding machine;PP blow molding machine;ABS blow molding machine;HDPE blow molding machine; EVA blow molding mahicne; Automatic blow molding machine;Single screw blow molding machine; Double screw blow molding machine;Educational toy house;, medical bed; bed hoard,head board,footboard Plastic water tank; 1000L tank; 500L tank;2000L tank; Septic tank; 60L drum; 220L barriel;50gallon barrel; 20L jerry can; HDPE IBC;
